Product Description

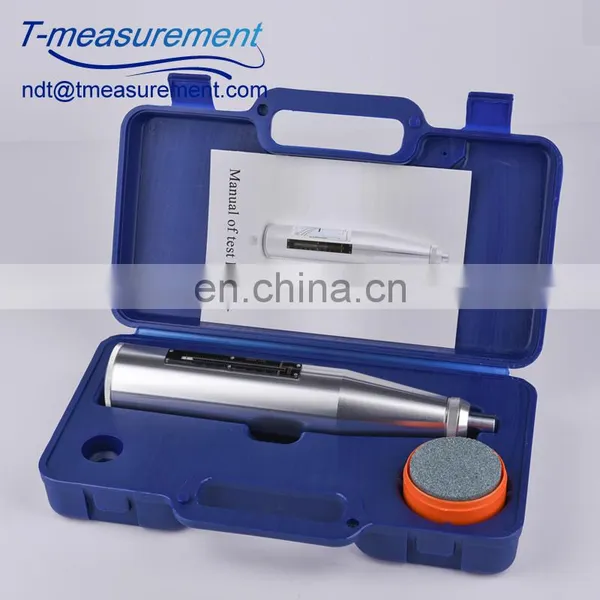

CHT-225 portable sclerometer tests on concrete hammer test
Introduction
HT-225 is applied to test the compressive strength of building concrete components, bridge and so on. HT-225 submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805.
Features
1.Center rod is made from imported material.
2. High Aluminum case extend use life.
3. High accuracy and durable resistance.
4. Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate.
Technical Information
|
Standard impact energy |
2.207±0.1J (0.225Kgf.m) |
|
The static friction of pointer slider |
0.65N±0.15N |
|
Length of spring stretch |
75±0.3mm |
|
Average rebound hammer on steel anvil Rm |
80±2 |
|
Measuring Range |
10~60Mpa |
|
Radius of spherical tip |
25mm±1mm |
|
Working Temperature |
-10℃~+50℃ |
|
Working Humidity |
≤90%RH |
|
Dimensions |
Φ54x280mm |
|
Net weight |
About 1.0Kg |
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
|
|
|
