Product Description
HT-225Q Integrated Digital Voice Rebound Hammer/Digital Display Schmidt Concrete Test Hammer price

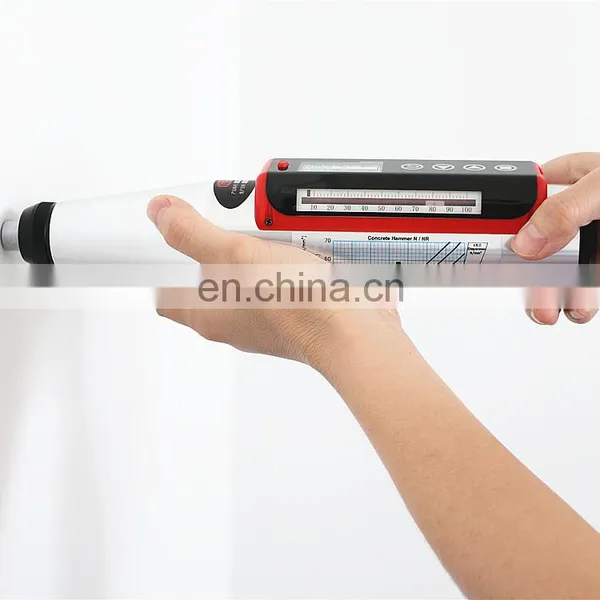

HT-225Q Digital Concrete Tester Hammer
HT-225Q Digital Concrete Hammer is a high-tech product, special designed for the needs of in place test for concrete compressive strength applied to non-destructive test (NDT) hardened concrete compressive strength component in construct projects

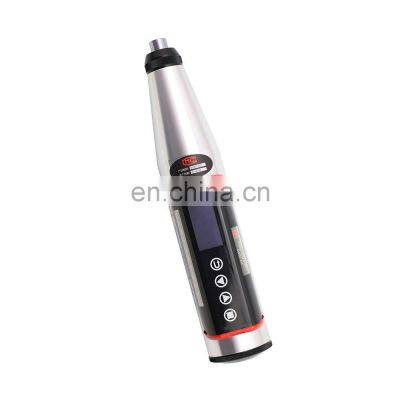

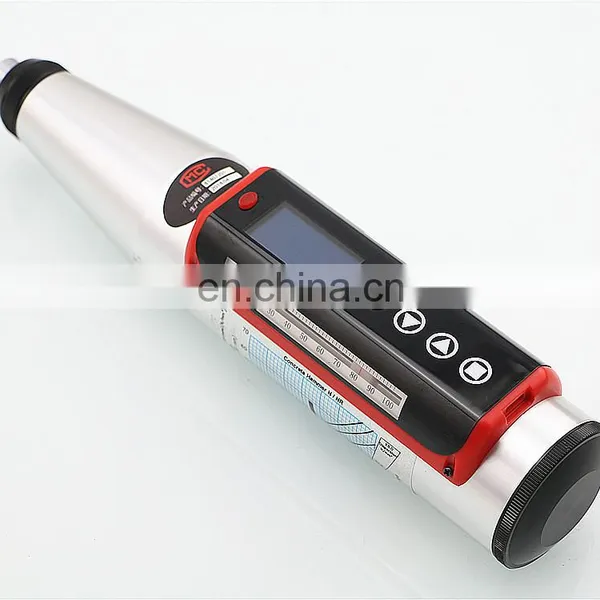

HT-225Q Digital Concrete Hammer
A.Submit to Technical specification of inspecting Concrete Compressive Strength by Rebound Method (JGJ/T23-2011). And ASTM C805, EN12504
B.Automatic recording function improves the efficiency of measurement
C.Using sensitive operation touch keys. The keys are not easy to aging.
D.Integrated wireless structure of the test hammer host and the displayer part. Easy to carry and make work efficient
E.The instrument is powered by a built-in rechargeable lithium battery which can operate continuously for more than 10 hours
Model | HT-225Q Digital Concrete Hammer |
Measuring ranges | 10-70MPa |
Impact energy | 2.207±0.1J (0.225Kgfm) |
Length of spring stretch | 75±0.3mm |
Tension spring stiffness | 785±30N/m |
The static friction of pointer slider | 0.65N±0.15N |
Radius of spherical tip | 25mm±1mm |
The average rebound values on steel anvil | 80±2 |
Data storage capacity | 200 standard components |
Power supply | 1×5#NiMH Rechargeable battery |
Housing dimensions | Φ54×280mm |
Weight | =1kg |

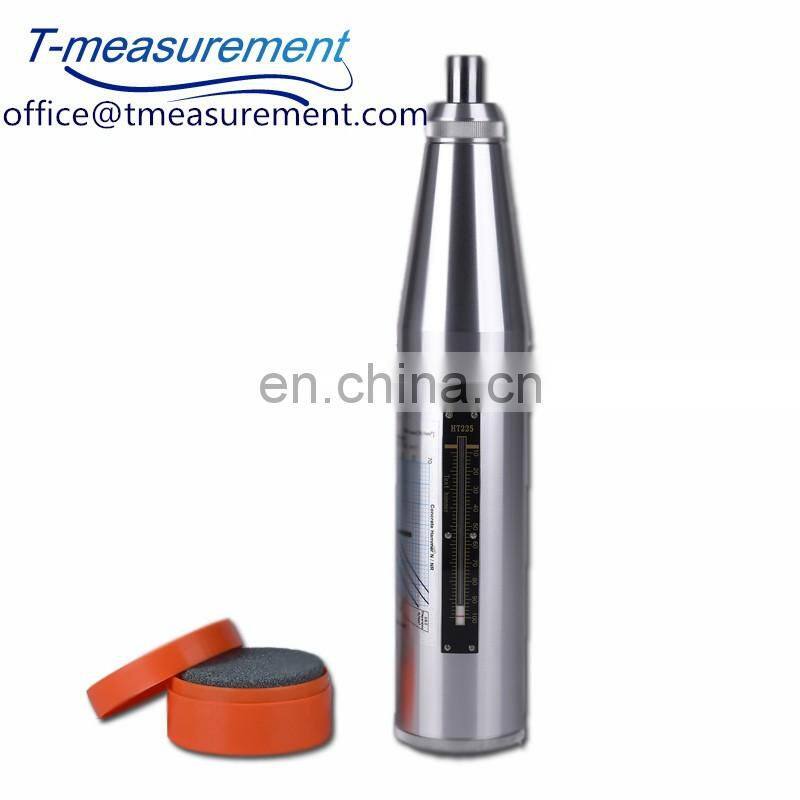

HT-225 Concrete Test Hammer

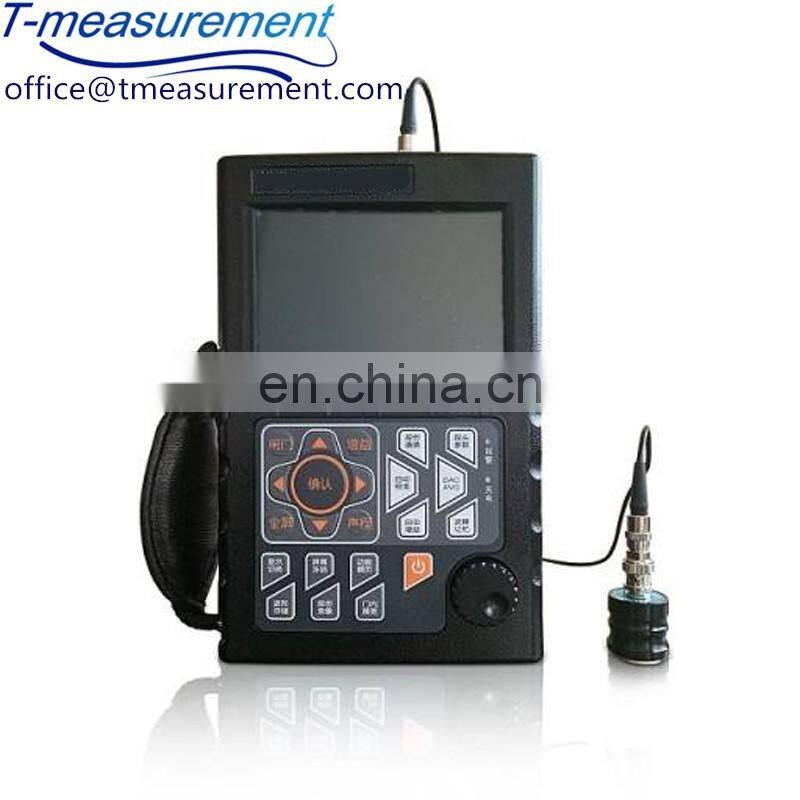

YFD300 ultrasonic flaw detector
ZBL-R800 Rebar Detector
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
HT-225Q Digital Concrete Hammer packing detail
1.Case:Water proof case/ High Aluminum case
2.Outer packing:Carton
3.Mini order quantity:1 set
4.Weight:Around 4.5KGS
