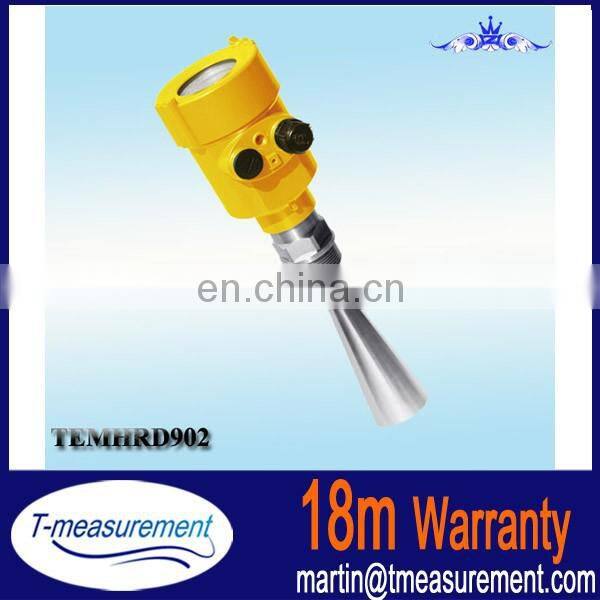

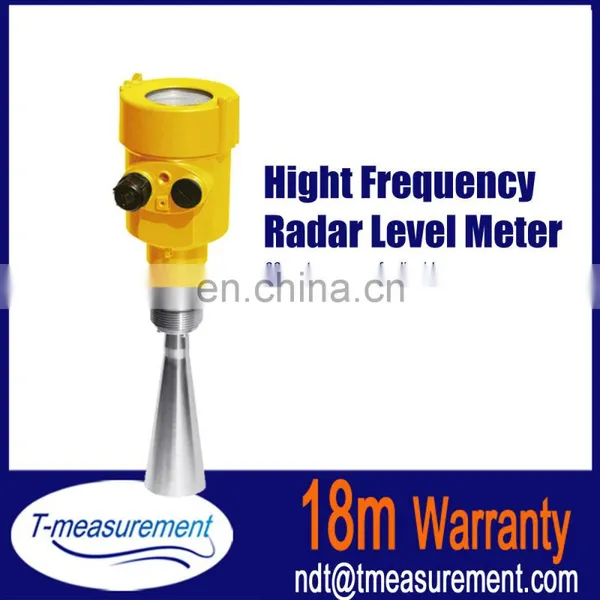

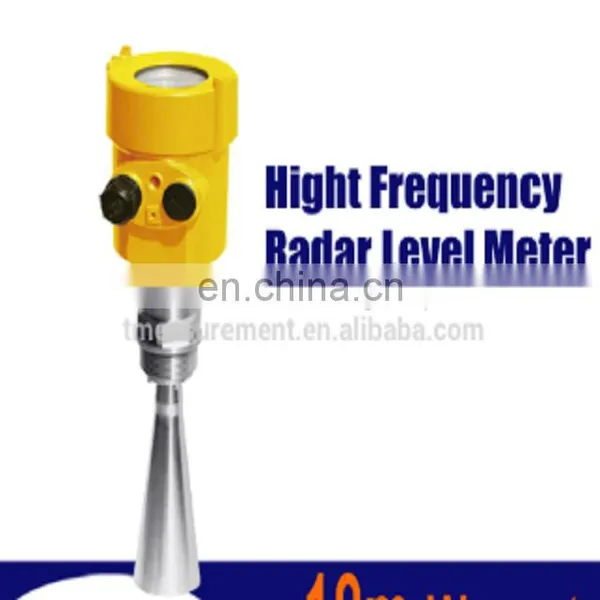

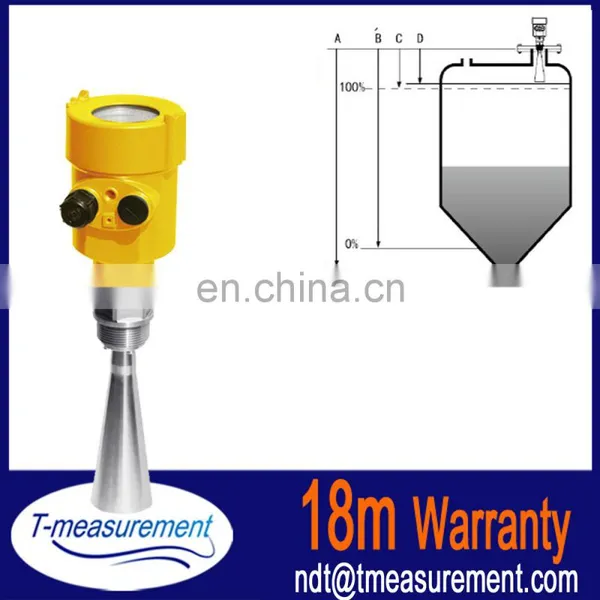

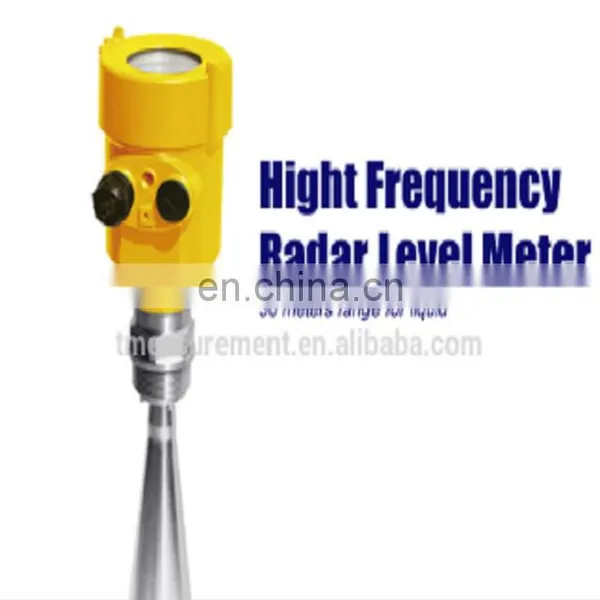

Taijia Well Depth Meter for Measure Wells, Drilling and Pipe Water Level Radar Level Meter
- T/T Credit Card
You May Like
-
Taijia HT-225 Portable Sclerometer Tests on Concrete Hammer Test Rebound Hammer
-
Taijia GPS Surveyor Land Survey Slope CAN Be Measured Land Area Measuring Instrument
-
Taijia GPS Area Measuring Instrument Surveying Measurement Handheld Land Measurement
-
Taijia Handheld NAVA F30 Land Measurement GPS for Area Measuring Handheld Land Measurement
-
Taijia BHCnav NAVA F30 Land Survey Measurement GPS Meter Gps Land Measurement
-
Taijia HT-225Q Integrated Digital Voice Rebound Hammer/Digital Display Schmidt Hammer Concrete Test Hammer Price
Product Description
Well depth meter for measure wells, drilling and pipe water level
1. Application:Liquid
2. Measuring Range:30 meters
3. Process Connection:Thread, Flange
4. Medium Temperature:-40°C ~ 150°C
5. Process Pressure:-0.1 ~ 4.0 MPa
6. Accuracy: ± 3mm
7. Protection Grade:IP67
8. Frequency Range: 26GHz
9. Signal Output:4... 20mA/HART (Two-wire / Four)RS485/ Modbus
10. Explosion-proof Grade: ExiaII C T6 Ga
|
Product name: |
26G radar level meter |
|
Casing window |
Polycarbonate |
|
The ground terminal |
Stainless steel |
|
Cable entrance / plug |
One M20xl.5 cable entrance One blind plug |
|
Terminal |
Conductor cross section 1.0m |
|
The output signal |
(4 ~ 20) mA/RS485 |
|
Communication protocol |
HART |
|
Resolution |
1.6u A |
|
Fault signal |
Constant current output; 20. 5mA 22mA 22mA 3.9mA |
|
The integral time |
(0 ~ 50) s, adjustable |
|
Blind area |
the ends of the antenna |
|
The maximum distance measurement |
70 meters |
|
Microwave frequency |
26GHz |
|
Communication interface |
HART communication protocol |
|
The measurement interval |
about 1 second (depending on the parameter settings) |
Product recommendation:
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.

Packaging Detail:Carton
Delivery Detail:In 7 working days after payment received
FAQ for Our Company
1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.
2. MOQ:1set
3. We accept T/T. Western Union.PayPal & Secure Payment
4. We offer 18 Month's Warranty on all product
5.For more information please contact us by mail ndt at
Or by Skype:tmeasurement01
Or by Whatsapp:18840951958
Or by Phone: 86-411-39685079
6. Service express company:TNT/DHL/FedEX.
