Product Description

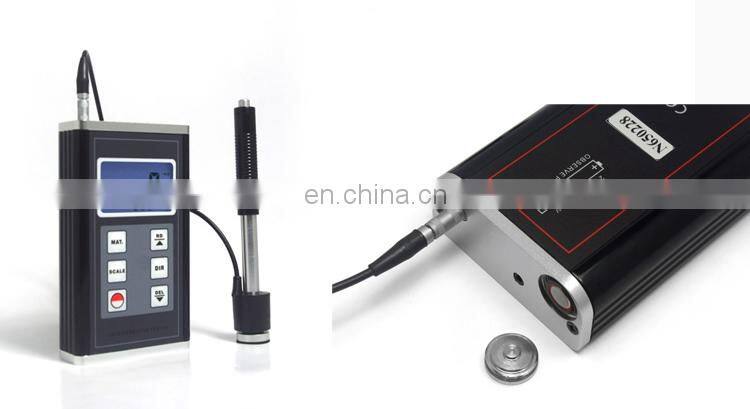

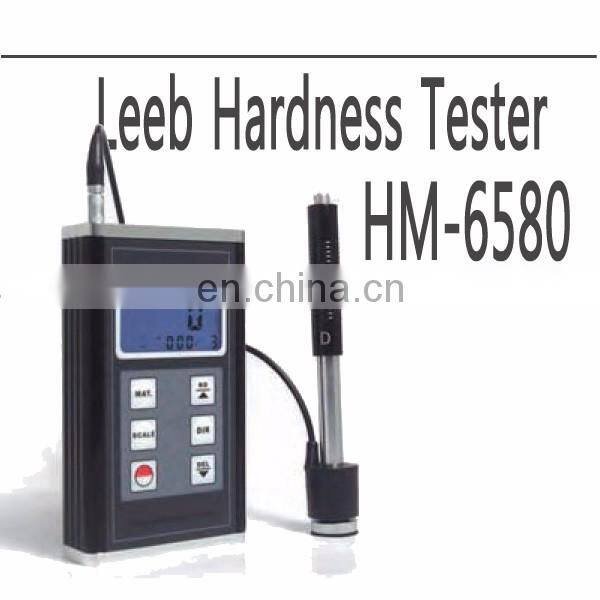

HM-6580 Portable Rebound Leeb Hardness Tester Meter for Metal Steel,hardness tester
Leeb hardness tester's features
1.Palm size for narrow space.
2.Test at any angle, even upside down.
3.Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
4.Large memory could store 50 groups including single measured value,
impact direction, material and hardness scale etc.
5.User recalibration function allowed.
6.Can communicate with PC for statistics and printing by optional cable.
7.Manual or automatic shut down.
8. Low battery indication.
Leeb hardness tester's Specifications
|
Measuring range |
(170-960)HLD,(20-68)HRC,(19-651)HB,(80-967)HV,(30-100)HS,(13-100)HRB |
|
Measuring Materials |
9 different common materials ( Steel & Cast Steel, Metallurgy tool steel, Forged Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper ) |
|
Conversion |
HL-HRC-HRB-HB-HV-HSD |
|
Accuracy |
±8HLD(HLD=800) |
|
Repeatability |
±6HLD(HLD=800) |
|
Display |
LCD |
|
Case Material |
Aluminum Alloy |
|
Working Conditions |
Temperature: 0 ~ 40 ℃ Humidity: ≤ 90 % |
|
Measuring Direction |
360° |
|
Impact device |
D Will handle, Weight: 75g |
|
Radius of Measured Workpiece |
Rmin=50mm ( For non-conventional Supporting ring Rmin=10mm ) |
|
Min. Weight of Workpiece |
Stable support 2kg ( 0.1kg Coupling ) |
|
Min. Thickness of Workpiece |
3mm |
|
Min. Thickness of Hardened Layer |
0.8mm |
|
Power supply |
2 x 1.5 V AA size (UM-3) battery |
|
Dimension |
130 x 76 x 31 mm |
|
Weight |
340 g (Not Including Batteries) |
Leeb hardness tester's Application
LeebHardness Tester applicable to die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery,permanent parts of assembled systems and heavy work pieces,Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuringareas for large-scale work piece.
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
