Product Description
Product Description

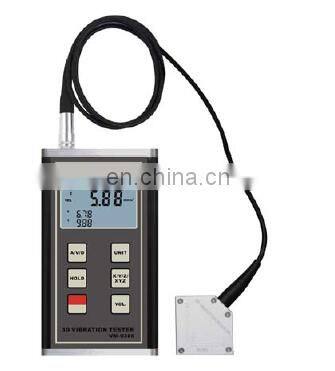

VM-6380 (3D Vibration Meter)
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. * VM-6380 can shown 3 same parameters in one display for 3 dimensional measurement. * VM-6370 can display the parameters of Displacement, Velocity and Acceleration simultaneously.
Detailed Images
Model | VM-6380 |
Sensor | 3-Axis Piezoelectric Accelerometer |
Measuring Range Acceleration | 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak |
Measuring Range Velocity | 0.01~400 mm/s 0.004~16.0 inch/s True RMS |
Measuring Range Displacement | 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-Peak |
Frequency Range Acceleration | 10Hz~10kHz |
Frequency Range Velocity | 10Hz~10kHz |
Frequency Range Displacement | 10Hz~10kHz |
Accuracy | 5% of Reading + 2 digits |
Operating Temperature | 0~50 °C |
Operating Humidity | <90 %RH |
Power Supply | 2x1.5V AA Battery |
Weight | 340 g (Not Including Batteries) |
