Home > Products > Ultrasonic Level Meter > Level Transmitter Symbol Oil Level Indicator Liquid Ultrasonic Water Level of Control Reservoir
Level Transmitter Symbol Oil Level Indicator Liquid Ultrasonic Water Level of Control Reservoir
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia Ultrasonic Level Transmitter Calibration Water Level Measurement Equipment Level System
-
4-20 mA / RS485 Signal Liquid Ultrasonic Water Tank Level Meter Ultrasonic Level Sensor
-
Water Level Gauge Ultrasonic Level Gauge/meter Ultrasound Level Meter for Water Tank
-
Ultrasonic Liquid Level Sensor Liquid Level Gauge Ultrasonic Level Meter
-
OGM Series Liquid Flowmeter Digital Diesel Fuel Flow Meter Electronic Flowmeter
-
OGM Series Fuel Meter Digital Meter Gear Oval Meter Electronic Flow Meter
Product Description
Product Description

Features

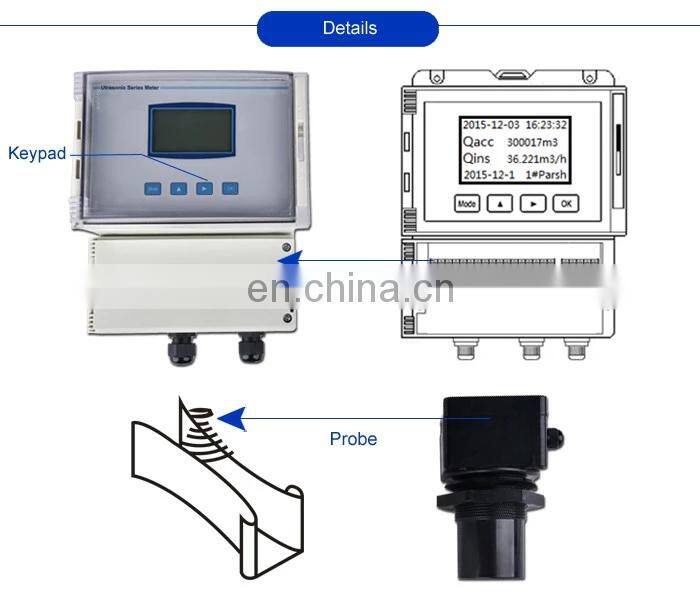

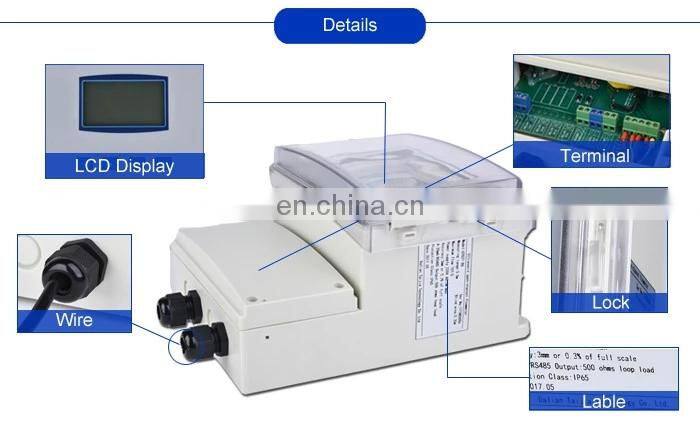

UTG21-PR ultrasonic level transmitter
* Four change rates are available, so as to read average liquid level accurately even if the liquid level fluctuates drastically.
* Six display modes are available, to display echo waveform and historical curve.
* Internally integrated temperature sensor provides real-time temperature compensation to sound speed.
* On-site operation is available with liquid crystal display and keyboard.
* 4~20mA current diagnostic function.
* Chinese and English displays are available; meter and inch are available.
* Carry out automatic detection of on-site electrical disturbance and interference suppression.
* All input and output lines have overvoltage and overcurrent protection.
* Provide alarm current output function.
* Non-contact measurement owns a long service life.
* Six display modes are available, to display echo waveform and historical curve.
* Internally integrated temperature sensor provides real-time temperature compensation to sound speed.
* On-site operation is available with liquid crystal display and keyboard.
* 4~20mA current diagnostic function.
* Chinese and English displays are available; meter and inch are available.
* Carry out automatic detection of on-site electrical disturbance and interference suppression.
* All input and output lines have overvoltage and overcurrent protection.
* Provide alarm current output function.
* Non-contact measurement owns a long service life.
Specification
System | Integrated two-wire system | ||
Basic parameters | Measurement range | 0~5m, 0~10m, 0~15m, 0~20m | |
Block dist. | 0.35~0.6m | ||
Precision | ±0.3%FS* (standard conditions *) | ||
Resolution | ±2mm | ||
Input | Supply voltage | DC12~36V / AC 85~264V | |
Maximum current | 50mA~100mA | ||
Ripple wave requirement | Less than ±200mV | ||
Output | Simulated current | Load 500Ω | |
Digital interface | Rs485 / ModBus-RTU | ||
Interface | Process interface | G1 1/2” or G2” | |
Electrical interface | PG11 | ||
Material | Transmitter | ABS | |
Probe | Ordinary waterproof ABS / anti-corrosion ETFE | ||
Flange | Ordinary waterproof ABS/ anti-corrosion ETFE | ||
Environmental condition | Environment temperature | -20℃~+60℃. Liquid crystal display is limited if it is lower than -20℃. If outdoor instrument is exposed to sunlight directly, add ultraviolet-proof protective cover. | |
Waterproof grade | IP65 | ||
Process condition | Process temperature | -40℃~+90℃, high-temperature probe shall be used in case of over 70℃. | |
Process pressure | 0.8~3bar or 0.08~0.3Mbar abs / below 3000 meters altitude. | ||
Probe Cable Length | RVVP 4*0.3 / less than 200m | ||


Packing & Delivery



Trade terms
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
Application


Related Product

UTG21-H ultrasonic level transmitter
UTG21-H ultrasonic level gauge built-in temperature compensation, power adaptive, using a number of self developed patented technology, with a new signal processing technology, which greatly improves the measurement accuracy of the instrument, the interference echo was significantly suppressed Features.

UTG21-PY ultrasonic level transmitter
UTG21-PY includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.

UTG21-BE ultrasonic level transmitter
UTG21-BE for non-contact, not in direct contact with liquid, low failure rate. All input and output lines of the instrument must have lightning protection, anti-short circuit protection.
