Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > AICHI AS-40-200B Natural Gas Ultrasonic Flowmeter DN40 City Gas Flowmeter

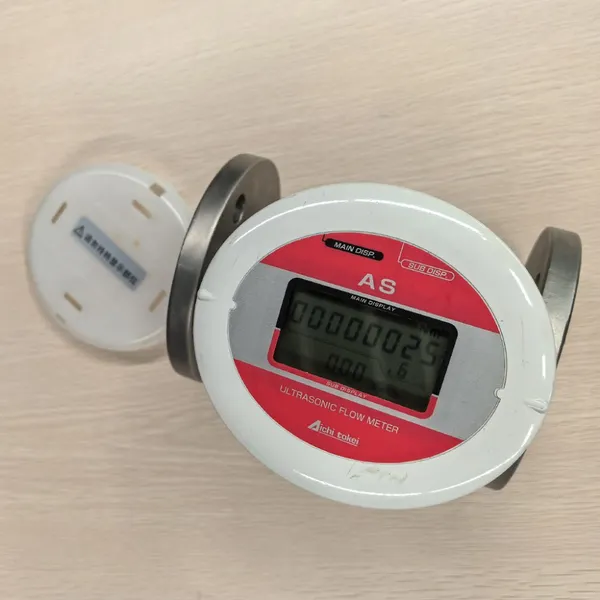

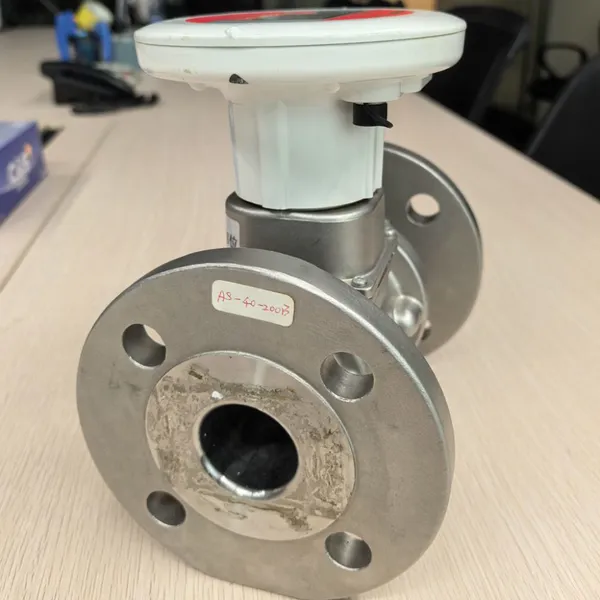

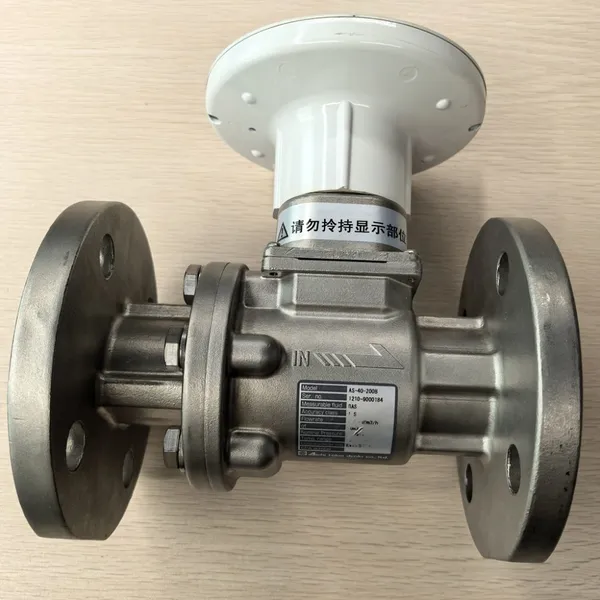

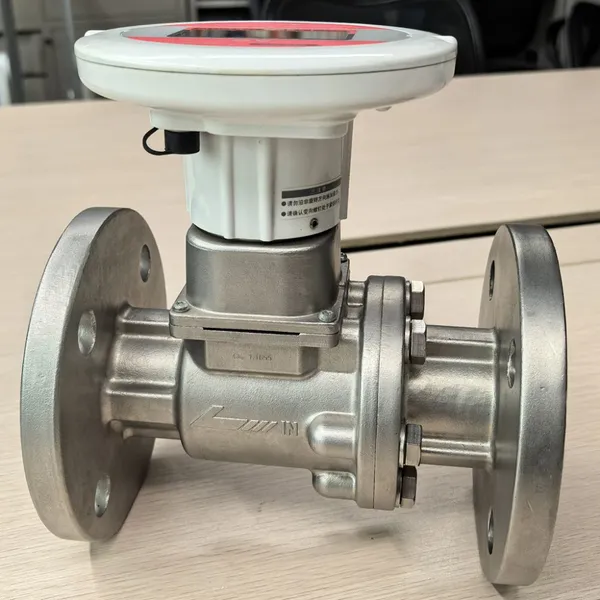

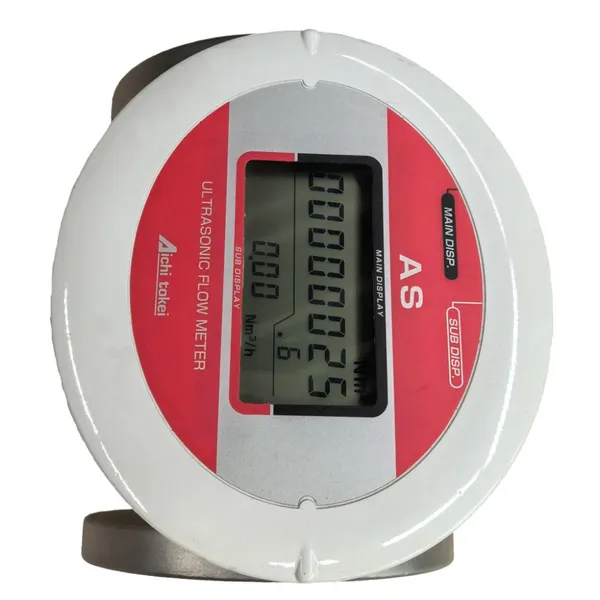

AICHI AS-40-200B Natural Gas Ultrasonic Flowmeter DN40 City Gas Flowmeter
US$ 2700
≥1 Piece
Key Specifications
Get Latest Price
Type:
Ultrasonic Flow Meter
Main Application:
Nature Gas
Measuring Media:
Gas
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
30 days
Related Products
-
Honeywell AMCO AL425 LPG Gas Flowmeter City Natural Membrane Gas Meter for Combustion PipelineNegotiableMOQ: 1 Piece -
REGO HP9563R High-Pressure Brass Master Valve Cryogenic Gas Globe Valves for Tube Trailers Piping SystemsUS$ 154MOQ: 1 Piece
-
REGO 597FB Industrial Pipeline Flow Control High-Pressure Pneumatic First-Stage Reducing Valve LPG Burner Propane Gas RegulatorUS$ 30MOQ: 1 Piece
-
REGO PRV9434 Series Dewar Cryogenic Gas Safety Valve Oxygen Cylinder Pressure Control Valves Microtherm AccessoriesUS$ 25.5 - 31MOQ: 1 Piece
-
REGO LV4403B66 DN20 Pneumatic Pipeline Regulating Valve LPG Gas Low Pressure Industrial Burner Regulator 21kg/h FlowNegotiableMOQ: 1 Piece
Type
Ultrasonic Flow Meter
Main Application
Nature Gas
Measuring Media
Gas
Size
DN10-50
Origin
Japan
Technical Parameters
* Measurable Gas Types: Natural gas, town gas, air, nitrogen, and other non - corrosive gases.
* Operating Gas Temperature & Humidity: -20℃ to +60℃, relative humidity below 90%.
* Operating Environmental Temperature & Humidity: -30℃ to +70℃, relative humidity below 90%.
* Operating Pressure Range: ≤0.5 MPa (absolute pressure) for AS25/AS32; ≤1.0 MPa (absolute pressure) for AS40~AS200.
* Body Material: AS25/AS32: aluminum alloy; AS40~AS200: SUS304 stainless steel.
* Explosion - Proof & Protection Level: EX ib IIB T4 Gb; IP65.
* Installation Method: Horizontal or vertical.
* Communication Protocol: RS485, MODBUS/RTU.
* Communication Rate: 4800bps, 9600bps.
* Pulse Type: Open drain (open - collector).
* Supply Voltage: 9VDC.
* Connection Form: AS25~AS200: Flange connection per GB/T9119 - 2000 PN1.6MPa (AS25/AS32: internal thread RC type on the main
body).
* Instantaneous Flow Display: Standard condition flow, working condition flow (maximum display ±19999; AS200 instantaneous flow
= display value ×10).
* Temperature & Pressure Display: Temperature: 00.0℃ (3 digits); Pressure: 0000.0 kPa (5 digits).
* Cumulative Flow Display: 000000000.0 Nm³ (9 digits, DN25~DN80); 0000000000 Nm³ (10 digits, DN100~DN200).
* Operating Gas Temperature & Humidity: -20℃ to +60℃, relative humidity below 90%.
* Operating Environmental Temperature & Humidity: -30℃ to +70℃, relative humidity below 90%.
* Operating Pressure Range: ≤0.5 MPa (absolute pressure) for AS25/AS32; ≤1.0 MPa (absolute pressure) for AS40~AS200.
* Body Material: AS25/AS32: aluminum alloy; AS40~AS200: SUS304 stainless steel.
* Explosion - Proof & Protection Level: EX ib IIB T4 Gb; IP65.
* Installation Method: Horizontal or vertical.
* Communication Protocol: RS485, MODBUS/RTU.
* Communication Rate: 4800bps, 9600bps.
* Pulse Type: Open drain (open - collector).
* Supply Voltage: 9VDC.
* Connection Form: AS25~AS200: Flange connection per GB/T9119 - 2000 PN1.6MPa (AS25/AS32: internal thread RC type on the main
body).
* Instantaneous Flow Display: Standard condition flow, working condition flow (maximum display ±19999; AS200 instantaneous flow
= display value ×10).
* Temperature & Pressure Display: Temperature: 00.0℃ (3 digits); Pressure: 0000.0 kPa (5 digits).
* Cumulative Flow Display: 000000000.0 Nm³ (9 digits, DN25~DN80); 0000000000 Nm³ (10 digits, DN100~DN200).
