Taijia Diesel Level Sensor of Liquid Volume Meter Radar Level Measurement Radar Tank Level Gauge

Taijia Diesel Level Sensor of Liquid Volume Meter Radar Level Measurement Radar Tank Level Gauge photo-1

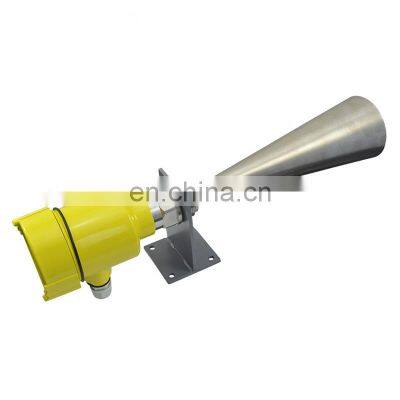

Taijia Diesel Level Sensor of Liquid Volume Meter Radar Level Measurement Radar Tank Level Gauge photo-2

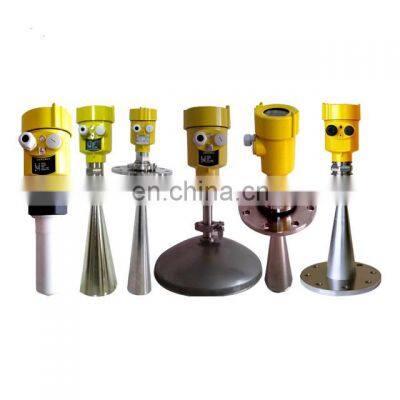

Taijia Diesel Level Sensor of Liquid Volume Meter Radar Level Measurement Radar Tank Level Gauge photo-3

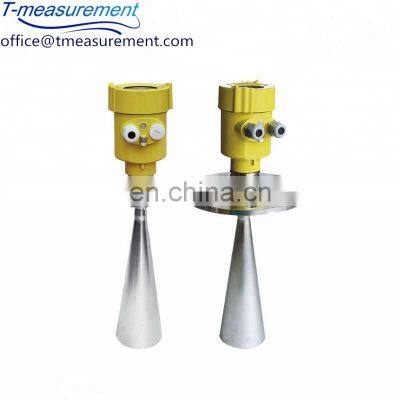

Taijia Diesel Level Sensor of Liquid Volume Meter Radar Level Measurement Radar Tank Level Gauge photo-4

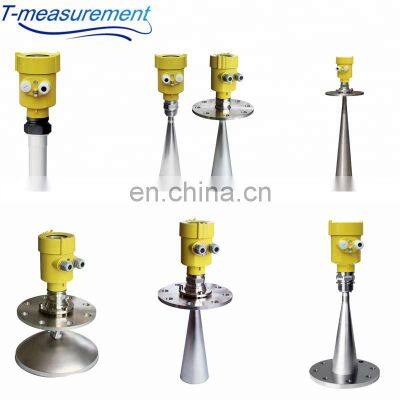

Taijia Diesel Level Sensor of Liquid Volume Meter Radar Level Measurement Radar Tank Level Gauge photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

26GHz Radar tank level gauge, radar level measurement





TEMHRD903 is a hight frequency radar tank level gauge apply to solid material and strong dust , it's small antenna size, easy to install and non-contact radar, no wear, no pollution. Almost no corrosion, bubble effect and not affected by water vapor in the atmosphere, the temperature and pressure changes.





 Taijia diesel level sensor of liquid volume meter radar level measurement Radar tank level gauge

Features



Application Solid material, Strong dust      tank level gauge
Measuring Range 70 meters     tank level gauge
Process Connection Universal Flange   tank level gauge
Medium Temperature -40°C ~ 250°C    tank level gauge
Process Pressure -0.1 ~ 0.1 MPa    tank level gauge
Protection Grade IP67    tank level gauge
Accuracy ± 15mm   tank level gauge
Frequency Range 26GHz     tank level gauge
Signal Output 4... 20mA/HART (Two-wire / Four)RS485/ Modbus
Explosion-proof Grade Exia ⅡC T6 Ga     tank level gauge



Characteristics



Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.     tank level gauge
Serious dust environment on the high level meter work has little effect.    tank level gauge
A shorter wavelength, the reflection of solid surface inclination is better.    tank level gauge
Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
The measuring range is smaller, for a measurement will yield good results.    tank level gauge
High signal-to-noise ratio, the level fluctuation state can obtain better  performance.
High frequency, measurement of solid and low dielectric constant of the best choice.
