Taijia ZC3-T Hammer Test Digital Esclerometro Digital Sclerometer Concrete Test Rebound Hammer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia ZC3-A Sclerometer Concrete Test Hammer Rebound Hammer Tester Schmidt Hammer Marca Proceq Compressive Strength Testing
-
Taijia Concrete Testing Products CONCRETE TEST HAMMER Zc3-a Schmidt Hammer Zc3a Concrete Rebound Test Hammer Schelometer
-
Taijia TEM-912 Concrete Rebound Hammer Schmidt Hammer Rebound Tester Concrete Strength
-
Taijia HT-225 Hammer Impact / Smith Hammer Test / Concrete Hardness Tester for Compressive Strength Concrete Test Hammer
-
Taijia Concrete Test Hammer, Rebound Hammer,esclerometro for Measuring Instrument Civil Engineering Digital Concrete Test Hammer
-
Taijia Rebound Hammer Schmidt Concrete Test Schmidt Hammer Price Schmidt Concrete ZC3
Product Description
Product Description

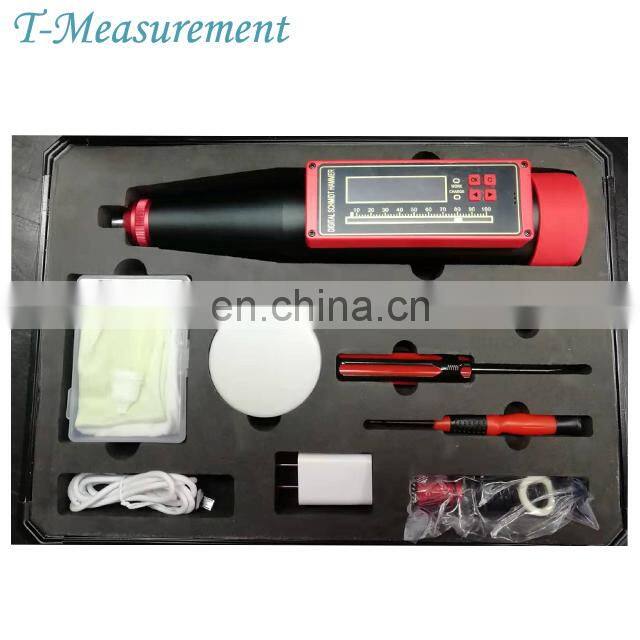

ZC3-T The component list of digital rebound test hammer mainly includes 1 Mechanical rebound test hammer, 1 electronic detection system, 1 charger, 1 Micro USB data cable,1 USB flash disk and 1 product operation manual.
Performance Characteristics
Built in national unified curve (JGJ/T23-2011) and multiple provincial,municipal and district local strength measurement curves, support real-time measurement point strength estimation, and automatically calculate the measurement area strength and component estimated strength after sampling
Compliance standard: Industry Standard of the People's Republic of China rebound test hammer (JJG 817-2011)
Small size, modular design, easy to replace the mechanical rebound test hammer
Small size, modular design, easy to replace the mechanical rebound test hammer
Built in large capacity rechargeable lithium ion battery, long service life of the test hammer
Built in large capacity memory can store 999 standard components, and a single component can set up 99 measuring areas and 159840 measuring point data at most
Support break-point continuous test, and data collection is more convenient and humanized
Support voice counting, measurement area conversion and component completion voice
reminder
reminder
Support Bluetooth online, expand the use of mobile app connection, and make it more convenient to upload data to the cloud with the cloud server
Through data line connection and computer data processing software, the test data can be processed quickly and the test report can be issued
Support system upgrade. According to user feedback, the company will upgrade the system
regularly to improve the use experience
regularly to improve the use experience
Technical parameters
Nominal kinetic energy | 2.207J |
Stiffness of spring | 785 ± 30.0N/m |
Pointer length | 20.0 ± 0.2mm |
Pointer friction | 0.65 ± 0.15N |
Spherical radius of impact rod | R25 ± 1.0mm |
Working length of spring striking tension spring | 61.5 ± 0.3mm |
Tensile length of spring striking tension spring | 75.0 ± 0.3 mm |
Rated value of steel anvil | 80 ± 2 |
Consistency of detection indication | ≤± 1 |
Operating temperature | - 4 ℃ ~ + 40 ℃ |
Communication rate | 115200bps |
Display | 2.08-inch 256x64 (dot matrix) OLED display |
Power supply | 1800mAh, 3.7V lithium ion battery |
Working hours | continuous working ≥ 10 hours |
Test range | 10-60MPa |
Related Products
HT-225 Concrete Test Hammer
The concrete rebound hammer are the most widely used portable NDT measuring instruments for a rapid assessment of the condition of a concrete structure
TEM912 Concrete Test Hammer
TEM912&TEM91 Series DIGITAL TEST HAMMER automatically Record, Save, Calculate and Processing data.
ZC3-A Concrete Test Hammer
ZC3-A Concrete Rebound Hammer , in accordance with JGJ/T23-2001 technical regulations, is used for detecting the concrete compressive strength within the range of 10-60Mpa and has the system standard energy of 2.207J
Precautions
1. Although the test hammer can save the tested original test data in large capacity and for a long time, due to the importance and non repeatability of the original test data, please export the test data saved by the test hammer in time and backup it. Maintaining the good operation performance of the mechanical part of the digital rebound test hammer is the basis to ensure the normal use of the test hammer. Therefore, the mechanical part of the rebound test hammer needs to be maintained regularly. The sensor must be disassembled in strict accordance with the requirements of the maintenance guide in this manual, otherwise the mechanical parts of the sensor, especially the electronic devices, will be damaged. In the actual detection, it should be noted that the bounce frequency of the digital rebound test hammer should not be too fast, and the time interval of the second bounce should not be less than 1 second, so as to avoid the impact on the sampling accuracy caused by the bounce of the sensor tension spring when it has not been completely reset. In the actual detection, the comparison between the manual mechanical reading and the digital display value of the test hammer is often carried out, which is helpful to find the operation fault of the sensor in time and avoid the distortion of the detection data. Please do not put heavy objects on the test hammer to avoid key failure due
to long-term compression and deformation; Avoid placing or storing the test hammer in strong sunlight or high temperature environment, and avoid storing the test hammer in humid or dusty environment.
to long-term compression and deformation; Avoid placing or storing the test hammer in strong sunlight or high temperature environment, and avoid storing the test hammer in humid or dusty environment.
2. Do not place the test hammer near magnets, motors or other equipment that will produce strong magnetic fields, and do not use the test hammer in an environment with strong magnetic fields. Exposure to strong magnetic field may cause abnormal operation of the test hammer or damage the test data stored in the test hammer.
3.Please do not bring the test hammer from high-temperature environment to low-temperature environment or from low-temperature environment to high-temperature environment in a short time, which may cause water vapor condensation on the internal and external surfaces of the test hammer. You can avoid this problem by placing the test hammer in a plastic bag and
gradually adjusting it to the ambient temperature before use. If condensation occurs, please stop using the test hammer. Continued use may cause damage to the test hammer.
gradually adjusting it to the ambient temperature before use. If condensation occurs, please stop using the test hammer. Continued use may cause damage to the test hammer.
4. When the test hammer is not used for a long time, please charge it frequently to avoid the battery entering into self-protection due to ultra-low voltage due to long-term use of the test hammer, which hinders normal use and causes damage to the test hammer.
Company Profile
Dalian Taijia Technology Co.,Ltd
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
Warnings
1. The test hammer has no waterproof function. Do not touch or immerse the test hammer in water or other liquids. Do not let water or other liquids flow into the test hammer or get wet. If the shell is stained with water or other liquid, wipe it dry immediately. If water or other liquid flows into the test hammer,please turn off the power immediately, remove the electronic bin
shell and dry it with a hot air blower; Continued use of the test hammer may cause damage to the test hammer.
shell and dry it with a hot air blower; Continued use of the test hammer may cause damage to the test hammer.
2. If smoke or peculiar smell is found in any part of the test hammer, stop the test hammer immediately, turn off the power supply, open the electronic bin and take out the battery.
3. Before mailing, consigning or transporting as luggage, it must be packed in a strong
package to ensure that the test hammer will not be squeezed or impacted by force, so as to avoid other serious consequences caused by accidents.
package to ensure that the test hammer will not be squeezed or impacted by force, so as to avoid other serious consequences caused by accidents.
5. Please do not allow any home appliance repair department or other similar electronic repair department to repair or replace the circuit boards and electronic devices in this test hammer. Technicians without professional training and approval from Leling Hammer Factory may not know the detailed technical parameters of the test hammer. Repairing the test hammer may reduce the technical performance of the test hammer and even cause more serious damage to the test hammer.
Contact Us
DALIAN TAIJIA TECHNOLOGY CO.,LTD
No.10 Huoju Road High-tech Industrial Zone Dalian, China
E-mail: ndt@tmeasurement.com
TEL:86-411-39685079
Whatsapp:+8615998577470
Skype:tmeasurement04
Web:/;
FAQ for Our Company
1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.
2. MOQ:1set
3. We accept T/T. Western Union.PayPal & Secure Payment
4. We offer 12 Month's Warranty on all product
5. Service express company:TNT/DHL/FedEX.
