Product Description
Product Description
FT8110 Turbine Flowmeter trasnsmitter
LCD without backlight display flowrate and total flow, Only 4 to 20Ma & pulse output. with RS485.no alarm signal output. Two wire system.Suitable to liquid turbine flow sensor
Turbine Sensor Struction Type
Flange connection type Liquid Turbine flow sensor Thread connection type Liquid Turbine flow sensorclamping band connection type Liquid Turbine flow sensorFlange connection type Gas Turbine Flow Sensor
LCD without backlight display flowrate and total flow, Only 4 to 20Ma & pulse output. with RS485.no alarm signal output. Two wire system.Suitable to liquid turbine flow sensor
Turbine Sensor Struction Type
Flange connection type Liquid Turbine flow sensor Thread connection type Liquid Turbine flow sensorclamping band connection type Liquid Turbine flow sensorFlange connection type Gas Turbine Flow Sensor
Suitable to Size of the Sensor (mm)
Flange connection type liquid turbine flow meter, size is DN10 to DN200 Flange connection type liquid turbine flow meter, size is DN10 to DN200Clamping connection type liquid turbine flow meter ,size is DN15 to DN50
Flange connection type liquid turbine flow meter, size is DN10 to DN200 Flange connection type liquid turbine flow meter, size is DN10 to DN200Clamping connection type liquid turbine flow meter ,size is DN15 to DN50
Specification
Type | Turbine Flow Meter Converter |
Power Supply | 24VDC & 3.6V;220VAC±10% |
Communication | RS485 (option) HART (option) Language And LCD Dispaly |
Accuracy of Flow Meter | ±0.5% of reading ; ±0.25% of reading (option) |
Ambient temperature | -20~65ºC |
Relative humidity | 5%~90% |
Fluid temperature | ≤120ºC |
Alarm output contact | H-ALM and L-ALM |
Photoelectric isolation | > 1000VDC |
Current output | 4 to 20mA |
Item | Turbine Flow Meter Converter |
Detail
Turbine Sensor Struction Type | Flange connection type Liquid Turbine flow sensor Thread connection type Liquid Turbine flow sensor clamping band connection type Liquid Turbine flow sensor Flange connection type Gas Turnine Flow Sensor | ||||||
Suitable to Size of the Sensor (mm) | Flange connection type liquid turbine flow meter, size is DN10 to DN200 Thread connection type liquid turbine flow meter, size is DN4 to DN65 Clamping connection type liquid turbine flow meter ,size is DN15 to DN50 | ||||||
Power Supply | 24VDC & 3.6V lithium battery,(double power supply) ;220VAC±10%, 50/60HZ | ||||||
Alarm Output | Alarm output contact:H-ALM and L-ALM ; Photoelectric isolation, isolation voltage:> 1000VDC;Output driver:Maximum withstand voltage 36VDC, maximum load current 30mA. | ||||||
Communcation | RS485 (option),HART (option) | ||||||

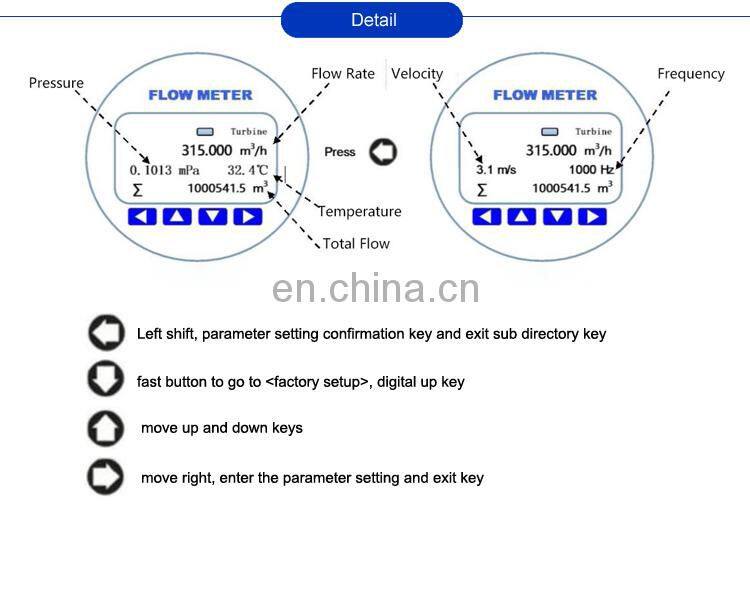

Language And LCD Dispal | English ,With LCD,display flow rate , total flow , velocity and frequency etc For two-wire output mode , then LCD display without backlight For three-wire output mode , LCD display backlight | ||||||
Compensation Function | With temperature and pressure compensation , display the temperature and pressure of fluid and density . The flow meter can automatically carry out the conversion of working condition and standards condition If for liquid turbine flow meter , without this function | ||||||
Output Signal | Current output: 4 to 20mA,load resistance:0~750Ω, Base deviation:0.1%±10μA Frequency output: Frequency range is 10~5000Hz Photoelectric isolation, isolation voltage:> 1000VDC; Pulse equivalent output: user defined pulse width,automatic conversion to square wave at high frequency Photoelectric isolation, isolation voltage:> 1000VDC; If only 3.6v battery power supply, then without any output signal. And without communcation | ||||||
Working conditions | Ambient temperature:-20~+65ºC;Relative humidity:5%~90% Fluid temperature :≤120 ºC | ||||||
