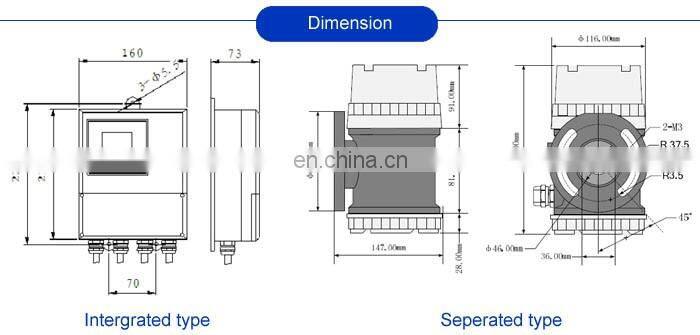

Transmitter outline dimension and type

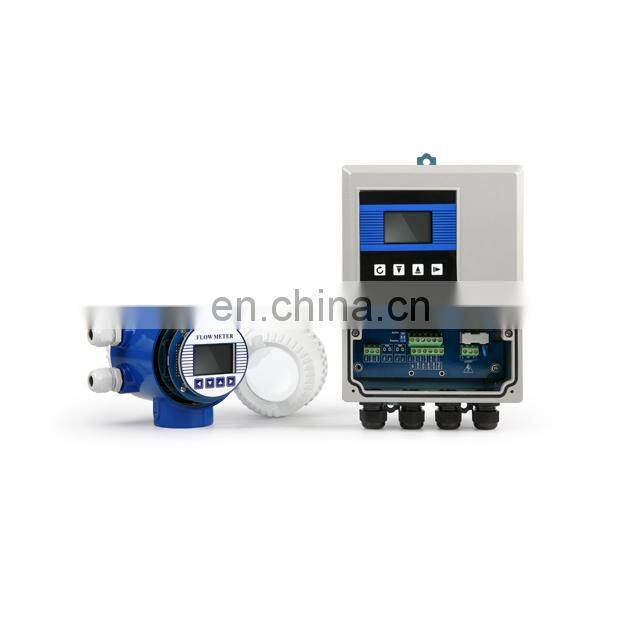

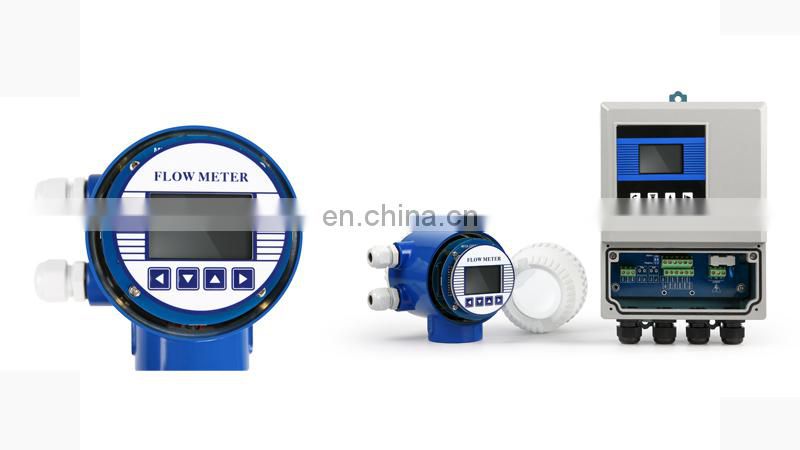

According to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.
Transmitter outline dimension and type
According to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different
Suitable to Size of the Sensor (mm):
1,2,3,6,8,10,15,20,25,32,40,50,65,80,100,125,150,200,250,300,350,400,450,500,600,650,700,800,900,1000,1100,1200,1300,1400,1500,1600,1700,1800,2000,2200,2400,2600,2800,3000
Power Supply
Power supply :85VAC --- 265VAC or or 110VAC to 420VAC or 24VDC or 3.6v lithium battery
Requirement For Sensor And Excitation (AC and DC power supply type)
Excitation current can be set to 125mA,160mA,250mA
250mA excitation current is suitable to the resistance of two coil: 35~ 65ohm
125mA excitation current is suitable to the resistance of two coil: 65 ~ 120ohm
excitation frequency:25HZ;12.5HZ,6.25HZ,3.125HZ
Communication
RS485 (standard),HART (option) MODBUS interface:RTU format,Physical interface:RS-485,Electrical isolation:1000V; HART interface:Support standard HART protocol
measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness
meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
1.Packaging Detail:Carton
2.Delivery Detail:In 7 working days after payment received
3.According to purchases Qty,can choose by air or sea
4.We can delivery via TNT or DHL or other express
