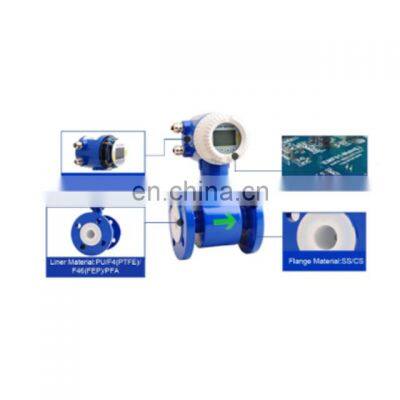

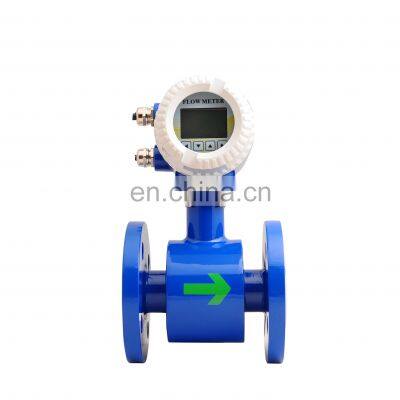

316L/Pt/Ta/ Ti/ HB/ HC/ WC electrode magnetic flow meter, magnetic flowmeter, flow meter magnetic electromagnetic flow meter

Product name:

Electromagnetic flow meter

Model Number:

TEM82E

Size:

DN6~DN2800

Medium:

Conductive liquid, slurry

Medium Temperature:

E grade∠60°C.H grade∠180°C

Conductivity:

≥5 u S/cm

Accuracy:

±0.25% . ±0.5%

Repeatability:

±0.1% . ±0.17%

Rated Pressure:

0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer )

Display :

Instantaneous flowrate, total flow, velocity, flowrate percentage with back light

Signal Output:

4-20mA current output, pulse output, pulse output, RS-485, Hart.

Power Supply:

AC:85V~265V, DC:18V~38V

Converter Type:

Integral, remote

Protection Grade:

IP67/IP68

Explosion Proof:

Ex deibmb IIC T3~6

Velocity:

0.05~12m/s ( 0.1~15m/s as required )

Liner:

PU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/

F46(FEP) (DN10~DN200)/ PFA (DN10~30)

Flowing Direction:

Forward, Reverse

Electrode Material:

316L, Pt, Ta, Ti, HB, HC, WC

Electrode Number:

3~6 pcs

Flange Material:

SS/CS

Alarm (normal open):

Empty, excitation, upper/lower limit

Ambient:

Temperature: -30~+60°C, Humidity: <90%

Protocal:

RS-485/ Hart

Lining Material

General Characteristics

PFA

Highly chemical-resistant

Excellent high temperature capabilities

PTFE

Highly chemical-resistant

Excellent high temperature Capabilities

Rubber

Abrasive resistance

Wide applications

Electrode Material

General Characteristics

316L Stainless Steel

Good corrosion resistance

Good abrasion resistance

Not recommended for sulfuric or hydrochloric acids

Hastelloy

Better corrosion resistance

High strength

Good in slurry applications

Effective in oxidizing fluids

Tantalum

Better chemical resistance

Not recommended for fluosilic acid, hydrofluoric acid, or sodium hydroxide

Titanium

Better chemical resistance

Better abrasion resistance

Good for sea water applications

Not recommended for hydrofluoric or sulfuric acid
