RBL+ detector locator scanner
Product Description

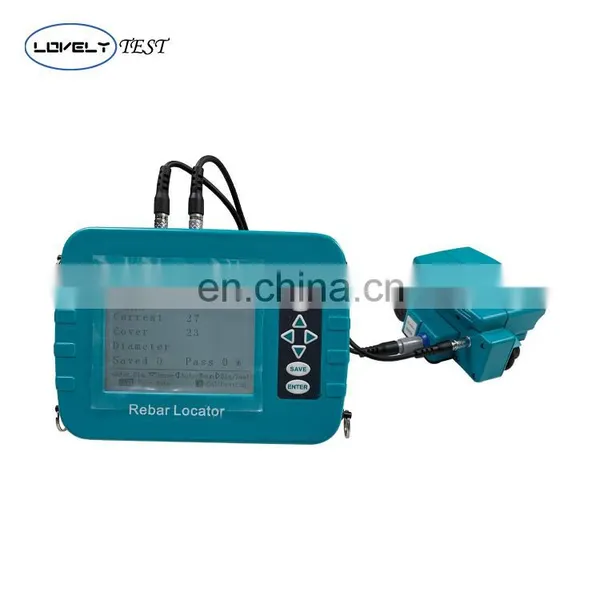

1. The Rebar locator is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures.
2. It can measure the position of steel bars on the concrete surface and detect the
thickness of the protective layer of the steel bars and the diameter of the steel bars.
thickness of the protective layer of the steel bars and the diameter of the steel bars.
3. ln addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before
construction can effectively avoid damage to these facilities and reduce accidents.
construction can effectively avoid damage to these facilities and reduce accidents.
1. |
Upgraded wireless cloud transmission function |
2. |
Adopt three anti-shell design, waterproof, dust-proof and shock-proof; |
3. |
Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content; |
4. |
Built-in large capacity memory card, storage capacity upgrade; |
5. |
USB transmission simulates the host computer as a U disk and reads data as easily as a U disk. |
6. |
Real-time display of protective layer thickness and steel signal image, minimum automatic locking; |
7. |
Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth; |
8. |
Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work; |
9. |
Professional data analysis software, so that your post-processing data and report generation work can be easily completed. |
Technical Parameters
Product model |
RBL+ |
||
Applicable range of protective layer thickness(mm) |
∅6mm~∅50mm |
||
First range |
6mm-90mm |
||
Second range |
6mm-200mm |
||
Maximum allowable error of second range protective layer thickness |
±1(mm) |
6-80mm |
|
±2(mm) |
81-119mm |
||
±4(mm) |
120-200mm |
||
Applicable scope of diameter estimation |
∅6mm~∅32mm |
||
Maximum error of diameter indication |
±1 specifications |
||
Section grid |
Graphics+Digital Display |
||
Storage quantity |
2000 components*1000 measuring points |
||
Data transmission mode |
USB, Wireless clod transport()options |
||
Power supply mode |
Lithium battery |
||
Host parameters |
Waterproof parameters:IP65 |
||
Screen size: 5 inches |
|||
Resolving power: 320x240 |
|||
Volume: 195x140x45mm |
|||
Weight: 0.8kg |
|||
Powder supply |
Large capacity lithium battery for more than 12 hours |
||
Working environment requirements |
Temperature:-10℃~40℃ |
||
Humidity: ＜90%RH |
|||
Other requirements |
There is no corrosive gas in the air, No strong electromagnetic interface There should be no major shocks or shocks instruments to avoid direct sunlight |
||
Packing Specification |
Material:Engineering plastics Volume: 420x140x335mm Weight: 5.5kg |
||
Our Advantages
a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
