U920 Ultrasonic Non-destructive Testing for Concrete

U920 Ultrasonic Non-destructive Testing for Concrete thumbnail-1
U920 Ultrasonic Non-destructive Testing for Concrete thumbnail-2
U920 Ultrasonic Non-destructive Testing for Concrete thumbnail-3
U920 Ultrasonic Non-destructive Testing for Concrete thumbnail-4
U920 Ultrasonic Non-destructive Testing for Concrete thumbnail-5
U920 Ultrasonic Non-destructive Testing for Concrete photo-1
U920 Ultrasonic Non-destructive Testing for Concrete photo-2
U920 Ultrasonic Non-destructive Testing for Concrete photo-3

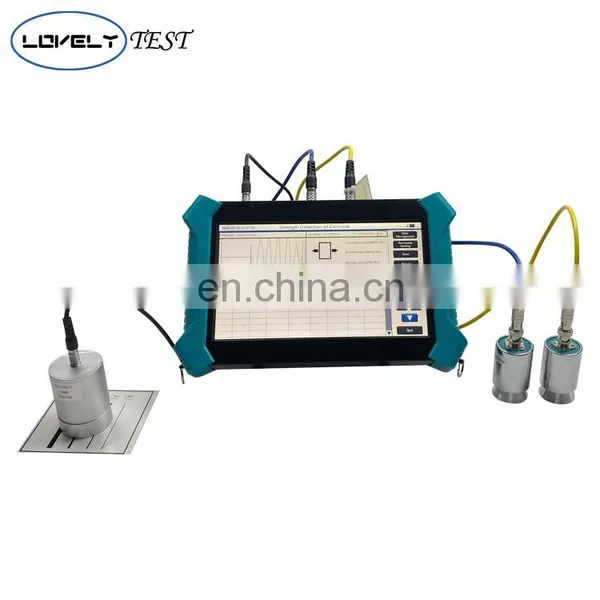

U920 Ultrasonic Non-destructive Testing for Concrete photo-4

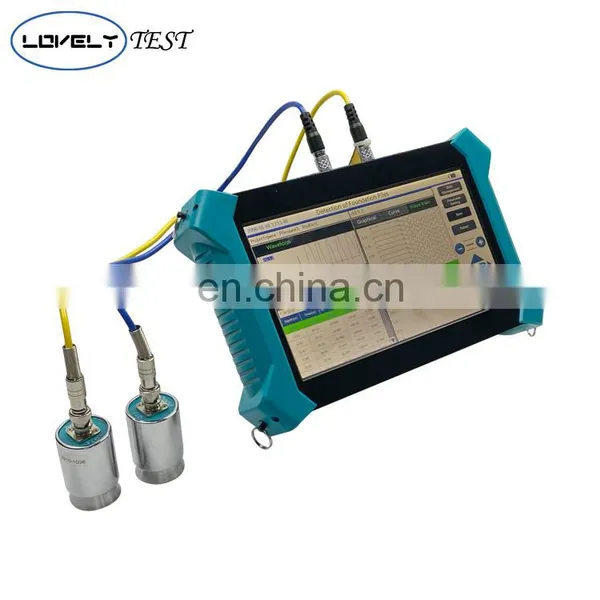

U920 Ultrasonic Non-destructive Testing for Concrete photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Cangzhou Lovely Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
1. U920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity.
2. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement.
3. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials, such as rock mass and concrete.




Five measuring functions

1.Concrete pile intergrity
2.Concrete strength
3.Concrete defects
4.Concrete crack depth
5.Concrete crack width

Full touch screen operation, simple and convenient, stable and reliable.
1
New upgraded wireless cloud transmission function;
2
Five functions of measuring pile, strength, defect, sounding depth and width measuring;
3
Stable performance and powerful function, it is the best choice for users with diverse needs, such as engineering inspection,
teaching and scientific research;
4
Semi-transparent, high-brightness, TFT color LCD screen;
5
Full touch screen operation, simple and convenient, stable and reliable;
6
Large memory capacity and working time over 10 hours;
7
It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound;
8
U-disk transfers data and supports software upgrading through U-disk;
9
Special analysis software. The data analysis and processing, report generation, and report printing can be completed easily.
Specification
Product Model
U920
Master control unit
Buit-in A8 industrial control motherboard
Display
10.1 inch, high brightness, TFT color LCD capacitive screen
Operational mode
Touch screen
Storage mode
Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk
Data transmission mode
Wireless Cloud Transport(Options)
Acquisition mode
Single-channel, manual point-by-point acquisition
Number of dispossable profiles
-
Channel number
1 emission+2 reception
Trigger mode
Signal triggering
Sampling period(μs)
0.05~409.6 Multistage Options
Acoustic time accuracy(μs)
0.05
Acoustic time range(μs)
+1677700
Width measurement function
Range: 0~10mm
Accuracy: 0.01mm
Dynamic range(dB)
146
Bandwidth(kHz)
1~500
Emission voltage(V)
65, 250, 500 and 1000 gears adjustable
Communication
UBS, Bluetooth, Wifi
Working hours(h)
More than 8
Power supply mode
Built-in lithium battery
External 220V~ 16V AC/CD
Working environment
Temp.: -10℃~ + 40℃
Humidity(RH) <90%
Host size(mm)
300*200*55
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company
Company Profile
Cangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.
All our products are made in China. Excellent quality with competitive price.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.

Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.

Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.

Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.

Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
