TJ-10S Adhesion Testing After the Coating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Ultrasonic Concrete Impact Rebound Test Hammer Hot SaleNegotiableMOQ: 1 -
Crosshole Sonic Logging (CSL) - Pile TestingNegotiableMOQ: 1
-
GTJ2000A Intelligent Bonding Strength TesterNegotiableMOQ: 1
-
L230 Coating Thickness MeasurementNegotiableMOQ: 1
-
Anchor Bolt Pull Test EquipmentNegotiableMOQ: 1
Product Description

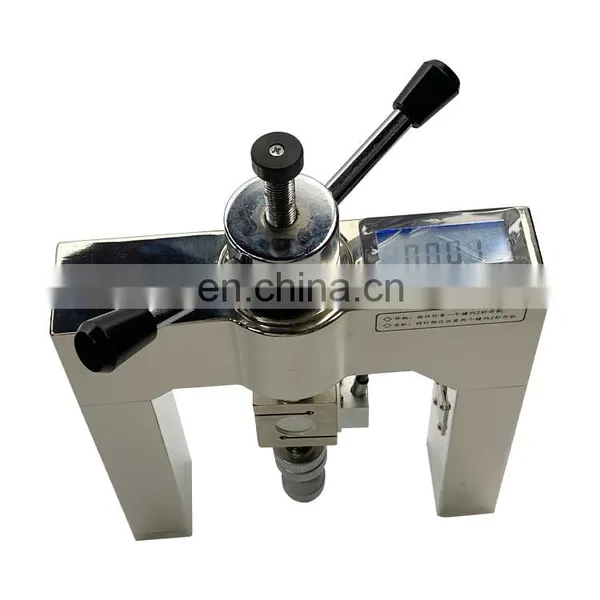

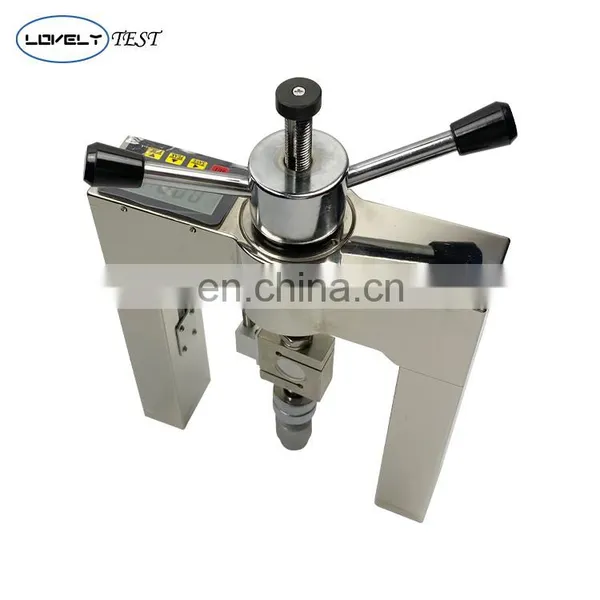

A new type of instrument suitable for testing the tensile bond strength between carbon fiber sheets and concrete in civil engineering structures. With more bonding strength and failure mode during stretching, the experimental results can be obtained immediately.
1 |
Lightweight alloy body with built-in micro hydraulic system; |
2 |
Equipped with HC-L3 embedded digital pressure instrument; |
3 |
Chinese setting menu, data can be recorded, inquired and deleted; |
4 |
Correction of 10 broken line values to improve the accuracy of the instrument; |
5 |
Ultra-low power consumption design, 6 hours of automatic shutdown without operation, continuous working time can exceed 200 hours; |
6 |
Two measurement modes for strength and force values. |
Specification
Item |
GTJTC-10S Carbon fiber bond strength tester |
Instrument structure |
Integrated |
Display mode |
Adjustable force / strength value Mpa |
Measuring range |
0-10.000kN/5Mpa |
Resolution |
0.001kN |
Accuracy class |
0.5% F.S |
Peak hold and LCD lighting |
yes |
Data storage |
200 |
Data correction |
10 segment polylines |
Power supply |
Large capacity lithium battery |
Drawing stroke |
65mm |
Theme material |
Light alloy |
Theme weight |
2.8kg |
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company
Company Profile
Cangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.
All our products are made in China. Excellent quality with competitive price.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
