Digital Rebound Hammers Equipment for Concrete
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Ultrasonic Concrete Crack Depth Meter
-
Pile Integrity Tester for Foundation and Pile Test
-
New Multi-functional Concrete Rebar Locator Steel Reinforcement Detector Concrete Rebar Location
-
Concrete Reinforcement Detector Rebar Locator Rebar Scanner Rebar Grid Scan
-
Portable Locator Rebar Detector Price Concrete Rebar Scanner for Sale
-
Concrete Rebar Scanner Reinforcement Position Diameter Distribution Detection Integrated Rebar Detector
Product Description

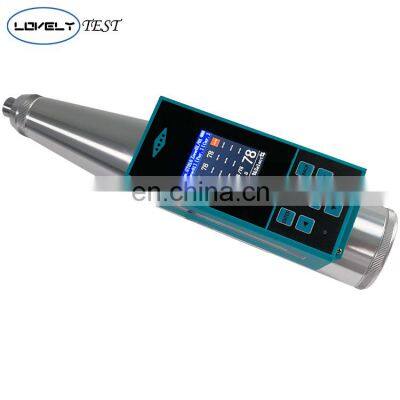

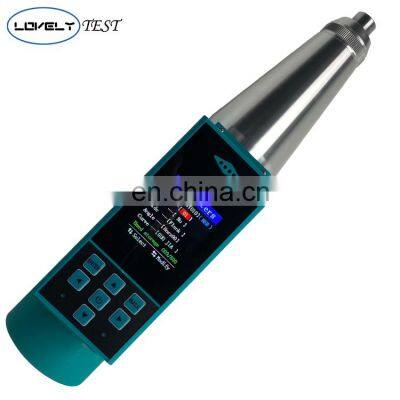

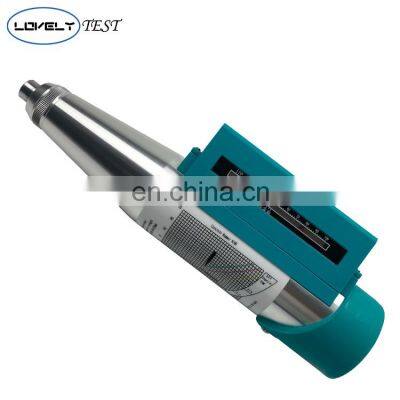

HT225 Digital Rebound Hammer
Product Description
HT225 Integrated Schmidt hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures.
It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.
Parameters
Data Acquisition Terminal | Mechanical Rebound Tester | ||||
Sensor | MOS image sensor | Range of strength measurement | 10-60Mpa | ||
Input mode | Automatically record rebound value | Nominal kinetic energy | 2.207J | ||
Display mode | LCD | Stiffness of Spring Strike | 7.84N/cm | ||
System capacity | 200,000 measuring points | Hammer stroke | 75mm | ||
Powder mode | Rechargeable large capacity lithium battery | Indicative consistency error | ＜0.5 | ||
Data processing | Automatic data revision. calculation and analysis | Calibrated rebound value of steel anvil | 80±2 | ||
Volume | 123x55x25mm | Volume | 55x55x270mm | ||
Weight | 200g | Weight | 1.0kg | ||
Working environment temperature | -10℃-45℃ | ||||
Humidity of working environment | ＜90%RH | ||||
Packing specification | Material: Engineering Plastics Volume: 420x140x335mm Weight: 6kg | ||||
Main Features
1.Integral design, compact size;
2.The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable.
3.Special color screen display, automatic recording of detection time and date;
4.The machine matches the national and local curves and can be set and selected by itself.
5.The parameters of angle, test surface, pumping and carbonization can be set on site.
6.Voice reading function, noisy environment can also be equipped with headphones to monitor;
7.Optional micro printer to print test results on site;
8.Ultra-low power design, continuous use of power supply for 8 to 10 hours;
9.Equipped with high-speed USB data transmission port, data can be transmitted to the computer.
10.The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient
2.The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable.
3.Special color screen display, automatic recording of detection time and date;
4.The machine matches the national and local curves and can be set and selected by itself.
5.The parameters of angle, test surface, pumping and carbonization can be set on site.
6.Voice reading function, noisy environment can also be equipped with headphones to monitor;
7.Optional micro printer to print test results on site;
8.Ultra-low power design, continuous use of power supply for 8 to 10 hours;
9.Equipped with high-speed USB data transmission port, data can be transmitted to the computer.
10.The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient
Application
