Home > Products > NDT Instrument > Factory Direct Supply Concrete ultrasonic tester Ultrasonic Pulse Velocity Test
Factory Direct Supply Concrete ultrasonic tester Ultrasonic Pulse Velocity Test
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Fresh Concrete Air Content Meter Concrete Air Meters
-
Dynamic Foundation Testing Integrity of Piles impedance pile testing equipment
-
High quality Concrete Reinforcement Detector Rebar Locator Rebar Scanner Hot sale
-
Multi-Function Concrete Rebar Detector Locator Scanner R800 Integrated Rebar Locator Rebar Corrosion
-
Static Plate Load Test Ev2 Tester Ev2 Plate Bearing Test Set
-
High Quality Low Strain Dynamic Pile Integrity Tester Concrete Piles testing pile integrity tester
Product Description
Product Usage and Features

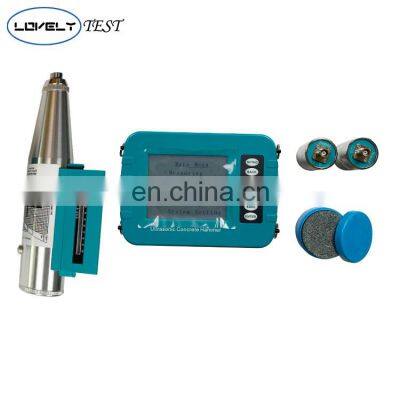

Concrete Ultrasonic Pulse Velocity Tester
USAGE OVERVIEW:
Concrete Ultrasonic Pulse Velocity Tester is used for testing both the surface and inner hardness of concrete with non nuclear method.
Concrete Ultrasonic Pulse Velocity Tester/Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Parameters
Product name | U200 Ultrasonic pulse velocity tester |
Type | GTJ-U200 |
Host Parameter | Screen Size:5 inches Volume:195*140*45mm Weight:0.85kg Waterproof level：IP65 |
Ultrasonic indication Error | ±0.1μs |
Ultrasonic Work Frequency | 50KHz |
Ultrasonic Frequency Range | 5Hz~500KHz |
Stiffness of Spring Strike | 785.0±40.0 (N/m) |
Impact Length of Ram | 75.0±0.3mm |
Impact Energy | 2.207J |
Average rebound value | 80±2 |
Power Supply Mode | Large capacity lithium battery. Working time over 8 hours. |
Working Environment | -10℃~40℃ |
Packing | Material: engineering plastic Volume:420*140*335mm Weight:5.5KGs |
Detailed Images
PRODUCT FEATURE:
1. It adopts three anti- shell design waterproof, dustproof and shockproof;
2. Multi-function: Two methods to test the compressive strength of concrete: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
3. High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
4. Easy to use: full English interface, with prompts, quick learning to conduct on-site testing;
5. Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
Contact US
Cangzhou Lovely Technology Co., Ltd.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
Our Customers and patent certificate
Packing & Delivery
FAQ
Q1: How long is the lead time?
A: Normally 3-7 days. Depend on the order quantity.
Q2: What is the transportation method?
A: By Express, By air or By Sea.
Q3: What are the payment terms?
A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.
Q4: How is the after-sales service?
A: 12 months quality warranty with online technical support.
Q5: Are there any factory quality certificates?
A: We have the ISO certificate and National patent certificates.
Q6: Is Lovely test trustworthy?
With more than 12 years' production experience. We would give you an excellent experience!
