High Quality Digital Glow Wire Tester up to 1000 Degree

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

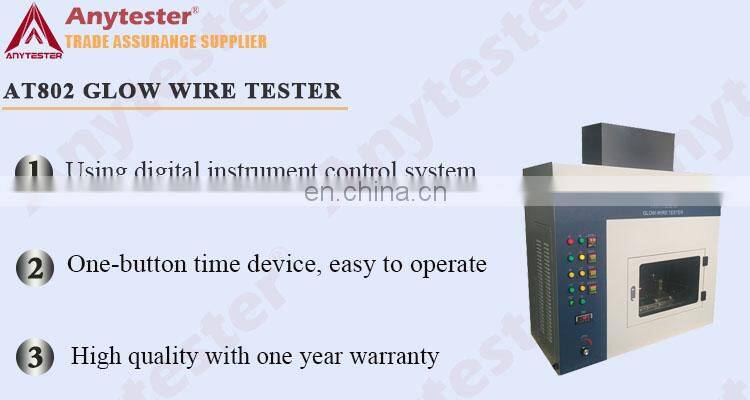

AT802 Glow Wire Tester uses the specified material Ni/Cr(80/120) and shape wire to testing temperature (550℃~960℃) by large current in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Then observe if the specimen is ignited or burning time to determine the fire risk of electric product, insulation material etc.

Standard

UL 746A	IEC60695.2~13, 60884-1, 829
GB/T 5169.10~13, 4706.1, 2099.1	DIN 695

Specification

^Model	^AT802
Glow wire	4mm ± 0.04mm Ni/Cr(80/120)
Glow wire temp.	500 ℃ ～ 1000 ℃
Test pressure	1.0N±0.1N
Max iron depth	7mm ± 0.5mm
Sample moving speed	10mm /s ～ 25mm /s
Test time	1s ～ 999.9s
Test space	0.5m3
Background illumination	≤ 20Lx
Power supply	AC220V, 50Hz

Details & Features

★ Using digital instrument control system, import control components; ★ Fixture made of high quality stainless steel, corrosion-resistant, no rust; ★ One-button time device, to facilitate the use of equipment, simple operation; ★ Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable; ★ Tempered glass observation window, the entire test process can be observed

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery

Packaging
Dimensions	720×360×1450mm
Weight	85kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
