Product Description

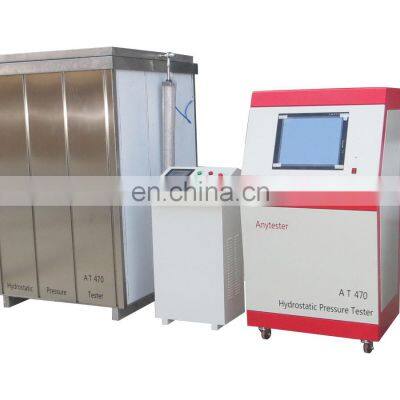

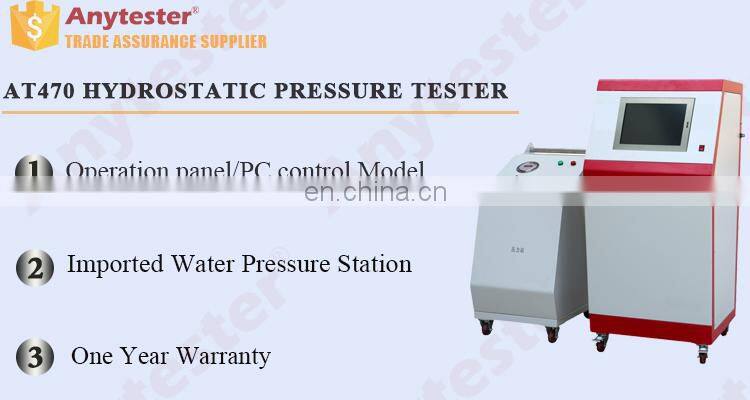

Hydrostatic Pressure Tester
AT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.
Details and Features
★ The main machine consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.
★ The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10
★ The dimension of test tank needed bases on the dimension of test pipes
★ Refrigerating system optional. The test tank can be connected with refrigerating machine to perform low-temperature test, thus test temperature can be RT-95℃ or 15~95℃
★ Stainless end caps of different diameter can be selected according to customers’ requirement, the material is stainless steel or carbon steel
Standard Configuration
ASTM D1598, 1599 | ASTM F1335 |
ISO 1167, 9080, 1756, 13477 | GB/T 15560, 18252, 6111 |
CJ/T 108 |
Technical specification
Model | AT470 |
Pipe diameter range | Φ10~Φ2000mm |
Working position | 6 positions (1~50 positions can be customized) |
Operation mode | Operation panel/PC control |
Pressure range | 0.2~10MPa (or customized) |
Pressure resolution | 0.001MPa |
Pressure control accuracy | -1%~+2% |
Measuring range | 5%~100% F.S. |
Timing range | 1s~10000h |
Timing accuracy | ±0.1% |
Display resolution | 1s |
Min. Time setting unit | min |
Temperature control system | RT-95℃ (15~95℃ with refrigerating system) |
Temperature control accuracy | ±0.5℃ |
Main body material | 304# stainless steel |
Power supply(Pressure control main machine) | AC220V, 50Hz |
Power supply (Pressure worksation) | 3phase, AC380V, 50Hz |
Our Company
Payment
Payment term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Contacting Us
Packing & Delivery
Packaging | ||
1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | ||
