GB/T 18251 Carbon Black Dispersion Testing Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

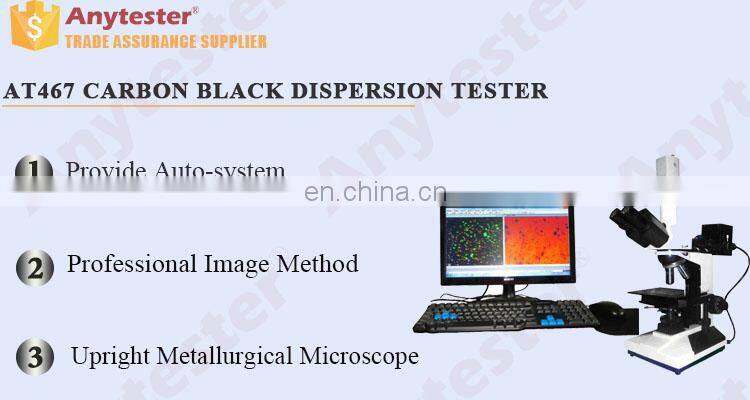

AT467 Carbon Black Dispersion Tester is a system to determine the carbon black dispersion of polyolefin pipe, fittings and compound material. It is also suitable for pigment dispersion test.

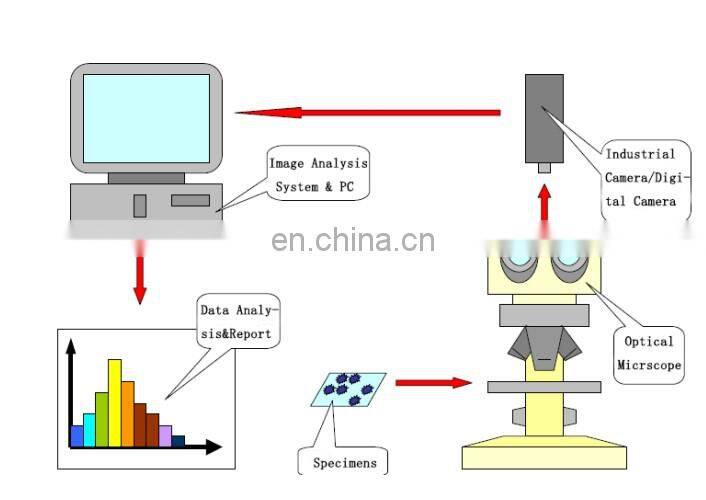

Test Principle: Small samples of raw-material pellet or material removed from the pipe or fitting are heated and compressed between microscope slides. Alternatively, a microtome slice can be taken. The specimens produced are examined microscopically and the sizes of particles and agglomerates are measured, recorded and graded by comparison with a tabulated grading system. If possible, a rating of the appearance of the dispersion is determined by comparison with photomicrographs. This system consists of microscope, camera and professional software. Based on the measurement and statistics of morphology, size, quantity of carbon black or pigment of the specimens, rapidly grade the carbon black or pigment dispersion and form a test report.

Standard

ISO 18553

GB/T 18251, 2951.41, 19812.1

IEC 60811-4-1, 60811-607

Specification

Model	AT467
Eyepiece	10X
Objective lens	5X 10X 40X 60X
Microscope	Upright metallurgical microscope
Measuring range	1um~1cm
Scale ruler	1000μm/1μm
Image capture	Single acquisition or continuous acquisition
Image process	Automatic
Measuring mode	Automatic or manual
Imaging resolution	2592×1944 (5 mega-pixel)
Power supply	AC220V 50Hz
Weight	10kg

Details & Features

★Professional image method to measure, high accuracy;

★ With standard scale ruler which provided by metrology institute to ensure the accuracy of the particle size measurement;

★ Extensive test parameters including size of carbon black pellet (equivalent diameter, area, perimeter, etc.) and shape information (roundness, rectangularity, length-width ratio, etc.);

★ Equipped with professional process program for different products to ensure reliable test result, automatically finish the process from image capture and test result output;

★ With flexible data analysis and reporting system, the test reports are saved as Excel form, convenient to save and print;

★ Can provide auto-system, improve the degree of automation

★ Can provide different capture device to connect with different computer

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
