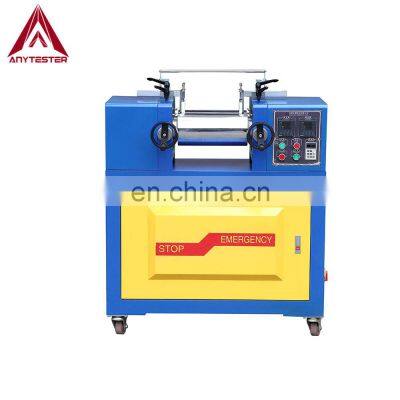

Electric Oil Heating Plastic Rubber Lab Two Roll Mill With Water Cooling
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Determination of Apparent Density of Molding Material With Standard ASTM D1895 Apparent Density Tester
-
Rubber Plastic Banbury Mixer Mini Lab Banbury Mixer Kneader
-
High Quality Rubber Rotorless Rheometer Lab Computer Rotorless Rheometer Testing Machine
-
20Ton 30Ton Plastics Rubber Laboratory Hydraulic Press With Touch Screen Control
-
250 Degree High Quality Electro-thermostatic Blast Laboratory Oven
-
Miini Size Plastic Film Strip Cutter
Product Description
Product Description

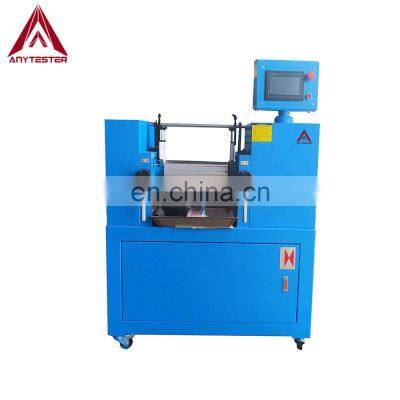

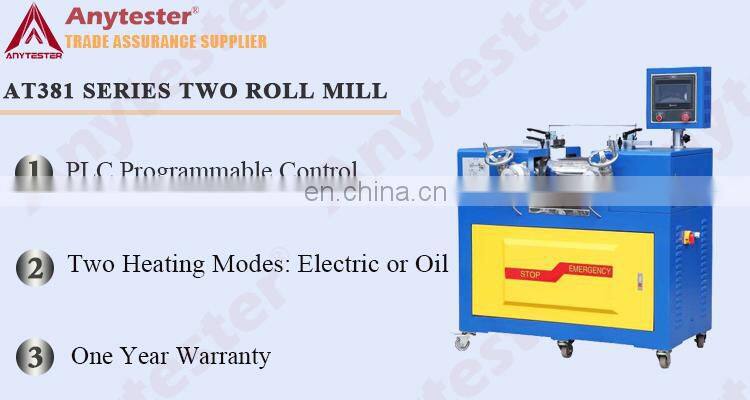

AT381 Series Two Roll Mill is used to mix, scatter and plasticize materials for color matching, quality control and research. It is suitable for masterbatch, PVC, plastic, pigment dispersion on plastics, etc.

Specification
Model | AT381A | AT381B | AT381C | AT381D | |||
Capacity | 1~3kg | ||||||
Roll size | Ø150×320mm or customized | ||||||
Temperature range | RT-250℃ | RT | RT-250℃ | ||||
Temperature deviation | ±3℃ | / | ±3℃ | ||||
Heating time | R.T to 200℃ in 25min | / | R.T~ 200℃ in 25min | ||||
Heating mode | Electric | Oil | / | Electric | |||
Cooling mode | / | / | Water | ||||
Nip gap | 0.05~8mm adjustable | ||||||
Speed of front roll | 24rpm or 0~35RPM adjustable or customized | ||||||
Friction ratio | 1:1.27 or customized | ||||||
Power | 12KW | ||||||
Power supply | 3phase AC380V 50Hz, 22A | ||||||
Dimensions (mm) | 1000×430×1150 | ||||||
Weight (kg) | 650 | ||||||
Details & Features

★ Two heating modes optional: electric heating or oil heating, with or without water cooling
★ Hard chrome plated rolls with mirror polished surface, anti-corrosive, high temperature resistant, fast thermal conduction.
★ The roll size can be customized according to requirement.
★ Digital display roll gap , 0.05~8mm adjustable.


★ With multiple emergency stop device, more safe.

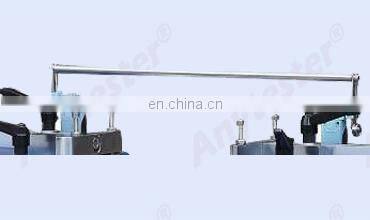

1.Emergency stop pull rod on the top of machine. Pull the rod, the two rolls will stop immediately.
2.Reversal stop switch on the front door. Kick the switch with knee, the two rolls will rotate reversely and stop after a few seconds. This time can be set by the user.
3.With emergency stop button on the controller.

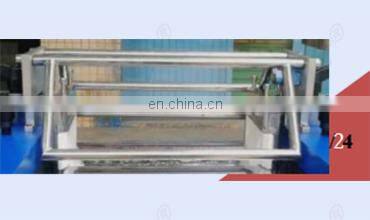

4.Available with safety hood to prevent the operator hands stretch into the two rolls (optional).
5.Pneumatic emergency stop function to separate rolls to avoid secondary damage (optional)
★ Baking finished machine body, nice appearance, durable.
★ The speed of two rolls can be fixed with a constant friction ratio, or be adjustable with a constant friction ratio, or be
adjustable with variable friction ratio.
adjustable with variable friction ratio.

Our Company





History
Since 1982 with more than 20 years’ experience

Warranty
Two Year Warranty for whole product

Training
Video and user manual for training

Onsite service
Installation and training service is available

Testing service
Free sample testing before order is available

Lead time
15 working days lead time for most product
Packing & Delivery

Packaging | ||

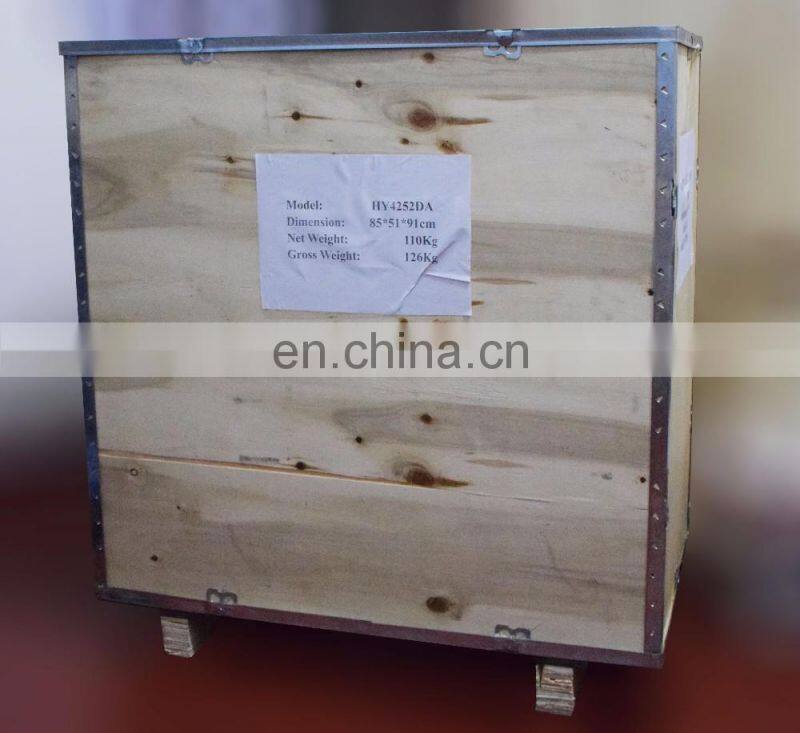

Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
