Product Description

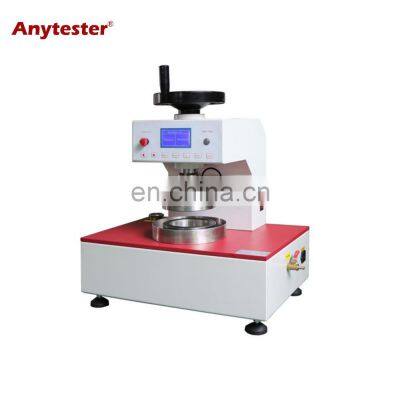

HY0812D Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.
Feature
Model
HY0812D-5
HY0812D-20
HY0812D-50
Test ring diameter
113mm or customized
Test area
100cm2,(7.8cm2 optional) or customized
Measuring range
500Pa ~ 50kPa
500Pa ~ 200kPa
5kPa ~ 500kPa
Water pressure rising rate
1~20kPa/min or customized, digital setting
Working mode
2 kinds
Water tank capacity
1000ml
Power supply
AC220V±10%, 50Hz
Power
200w
Dimensions
550×400×600mm
Weight
100kg
Specification

★ Microcomputer control, digital setting
★ Adopt high precision pressure sensor, more accurate
★ 3 kinds of pressure range selectable
★ Four display unit free to change, Kpa, mmH2O, cmH2O and Bar
★ Built-in professional LED light, easy to observe drops
★ Two test modes: supercharge method and crooked & relaxation method
★ Stainless steel clamp, more stable and durable
