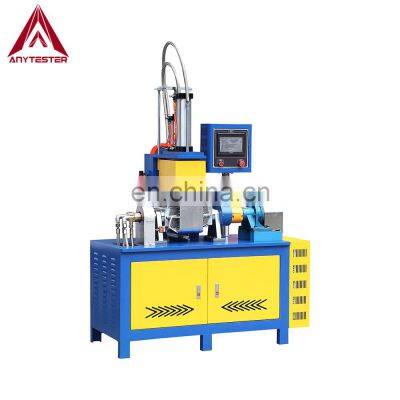

China Manufacturer Laboratory Plastic Rubber Banbury Rubber Mixer

China Manufacturer Laboratory Plastic Rubber Banbury Rubber Mixer thumbnail-1
China Manufacturer Laboratory Plastic Rubber Banbury Rubber Mixer thumbnail-2
China Manufacturer Laboratory Plastic Rubber Banbury Rubber Mixer photo-1
China Manufacturer Laboratory Plastic Rubber Banbury Rubber Mixer photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Anytester (hefei) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

AT388 Series Banbury Mixer (original HY3880) is used for plasticizing, scattering and mixing of rubber products, industrial chemicals and plastic products, such as rubber ring, rubber belt, PVC, color masterbatch, cable materials, etc.
Specification
Model
AT388A
AT388B
Volume
3L
Display
LED
Color touch screen
Main motor
5.5kw
Heating method
Electric
Heating power
2.5kw
Temperature range
RT~260℃
Dumping angle
135°
Dumping motor
0.75kw
Compressor motor
2.2kw
Speed ratio of front and back rotors
1:1.27 or customized
Rotor speed
0 ~ 50RPM adjustable
Rotor hardness
HRC 60 crmoly

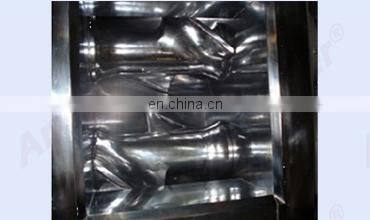

Mixing room
SKD crmoly with HRC60 hard chrome
Air pressure
0.5 ~ 0.8Mpa
Power supply
3phase, AC220/380V, 60/50Hz
Dimensions
1450×700×2200mm
Weight
980kg
Details & Features
★ PLC control, self-examination, alarm and interlock function
★ Large color touch screen control, programmable, real time display time, temperature, torque (HY3880B). ★ It has real time discharge function during working to avoid motor stop and start frequently, it can protect the motor and make it work for long time
★ Adopt hard surface planetary reducer, excellent quality ★ Electric heating or/and water cooling optional for one machine ★ Different mixing capacity selectable ★ Excellent mixing effect, high efficiency ★ Easy to operate and maintain, lower power consumption, stable and safe
