Product Description

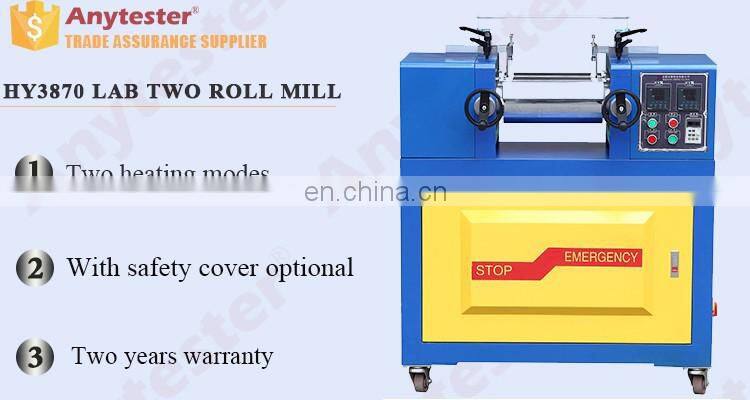

HY3870 Series Two Roll Mill is used to mix, scatter and plasticize materials for color matching, quality control and research. It is suitable for masterbatch, PVC, plastic, pigment dispersion on plastics, etc.
★ Two heating modes optional: electric heating or oil heating, with or without water cooling.

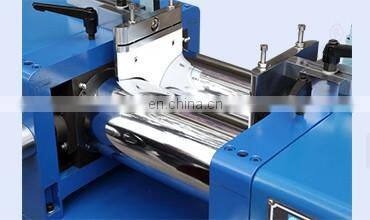

★ Hard chrome plated rolls with mirror polished surface, anti-corrosive, high temperature resistant, fast thermal conduction.
★ The roll size can be customized according to requirement.

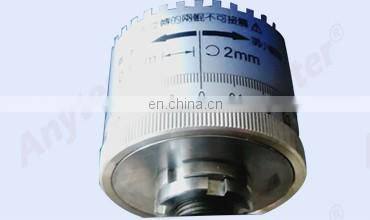

★ It adopts precision screw rod to adjust roll gap, digital display, 0.1~8mm adjustable.
★ The speed of two rolls can be fixed with a constant friction ratio, or be adjustable with a constant friction ratio, or be adjustable with variable friction ratio.
1. Emergency stop pull rod on the top of machine. Pull the rod, the two rolls will stop immediately.
2. Reversal stop switch on the front door. Kick the switch with knee, the two rolls will rotate reversely and stop after a few seconds. This time can be set by the user.

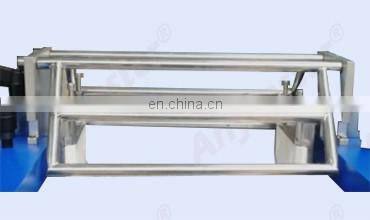

3. Available with safety hood to prevent the operator hands stretch into the two rolls (optional).
4. Pneumatic emergency stop function to separate rolls to avoid secondary damage
Model | HY3870A | HY3870B | HY3870C | HY3870D | |||
Capacity | 1~3kg | ||||||
Roll size | Ø150×320mm or customized | ||||||
Roll material | High hardness SKD chromium molybdenum alloy Roll surface: HRC 60 mirror chrome plated | ||||||
Temperature range | RT-300℃ | R.T | RT-300℃ | ||||
Temperature deviation | ±3℃ | / | ±3℃ | ||||
Heating time | R.T to 200℃ in 25min | / | R.T~ 200℃ in 25min | ||||
Heating mode | Electric | Oil | / | Electric | |||
Cooling mode | / | / | Water | ||||
Nip gap | 0.05~8mm adjustable | ||||||
Speed of front roll | 24rpm or 0~35RPM adjustable or customized | ||||||
Friction ratio | 1:1.27 or customized | ||||||
Roll temperature control | independent adjustment of two rolls | ||||||
Power | 8KW | ||||||
Power supply | 3phase AC380V 50Hz, 22A | ||||||
Dimensions (mm) | 1000×430×1150 | ||||||
Weight (kg) | 410 | ||||||
Packaging | ||
Size(mm) | 6220 (L) * 760 (W) * 1950(D) | |
Weight | 1800Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Lily Cheng | ||
Website | ||
Mobile Phone | +86 180 5517 3820 | |
Whatsapp | +86 180 5517 3820 | |
Skype | 1933039910@qq.com | |
Wechat | +86 180 5517 3820 | |
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product

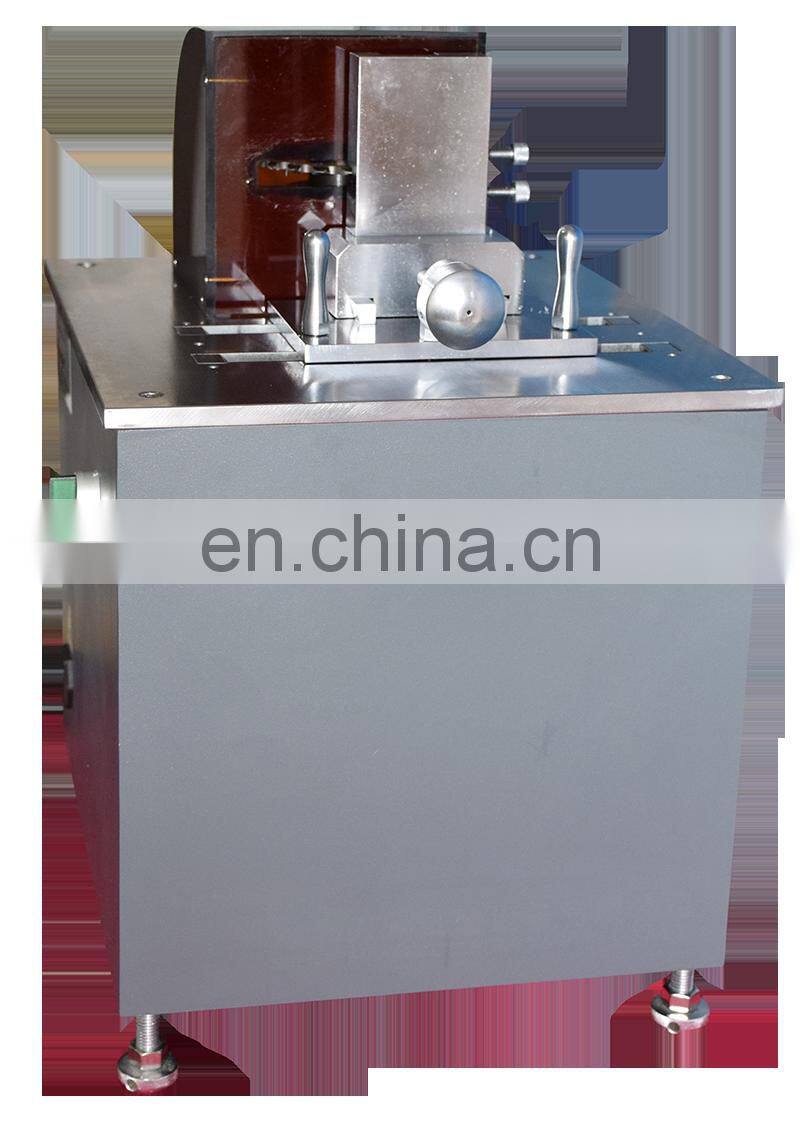

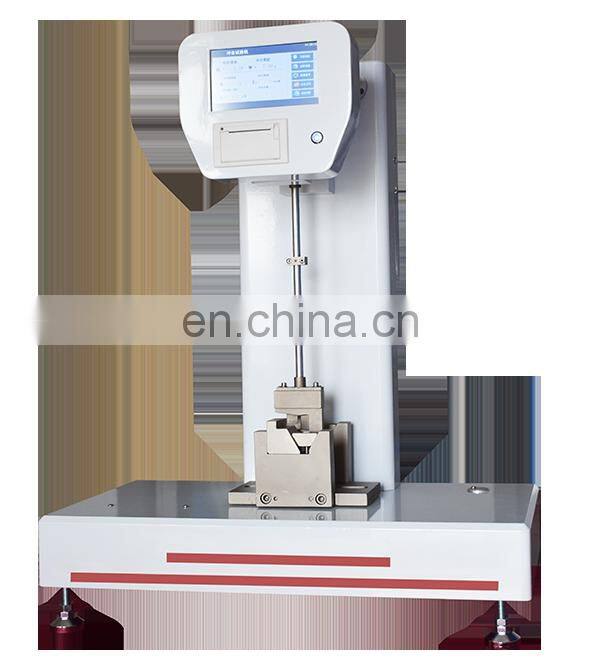

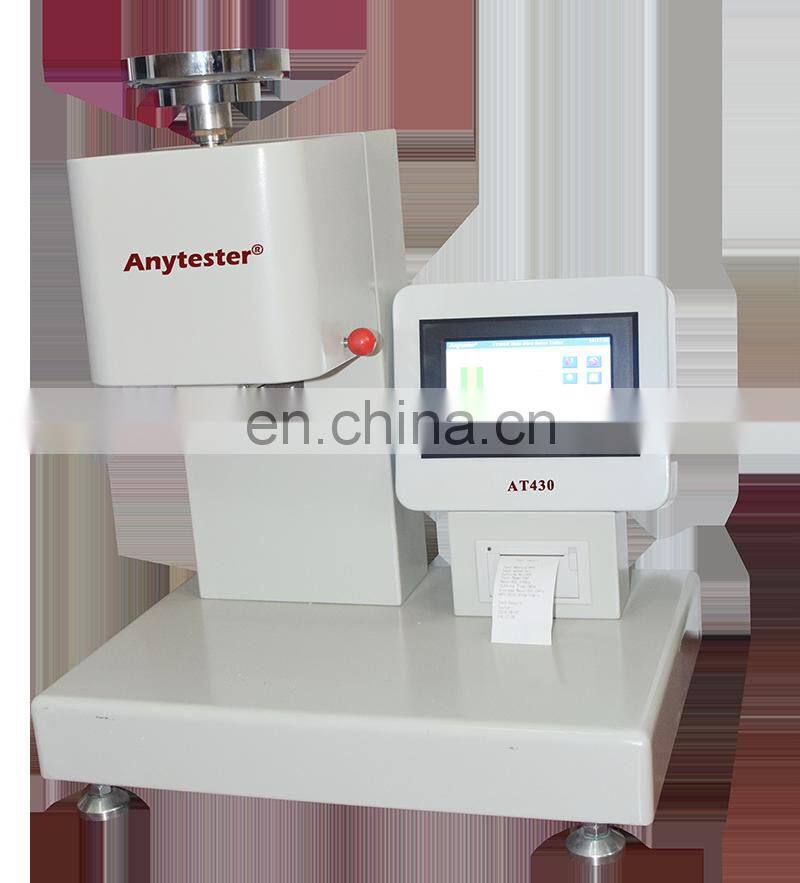

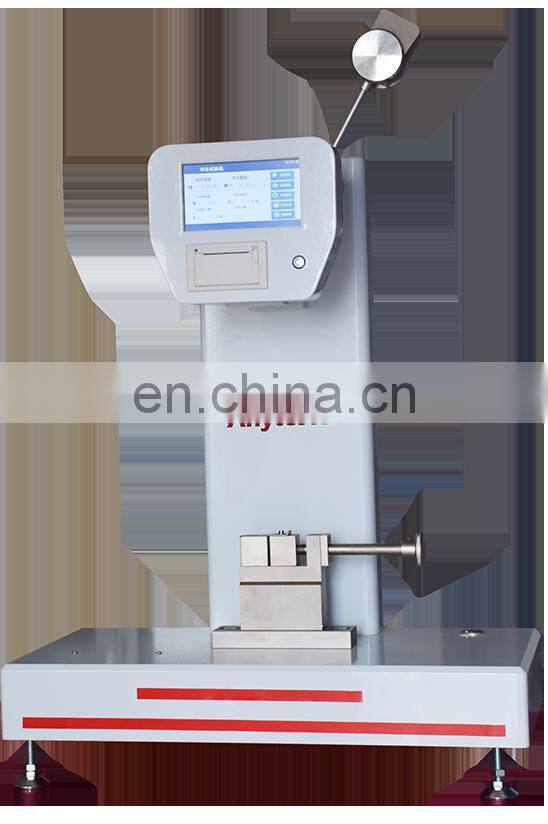

AT421 Charpy Impact Tester | AT422 IZOD Impact Tester | AT430 Melt Flow Index Tester | AT403 Notch Making Machine |
