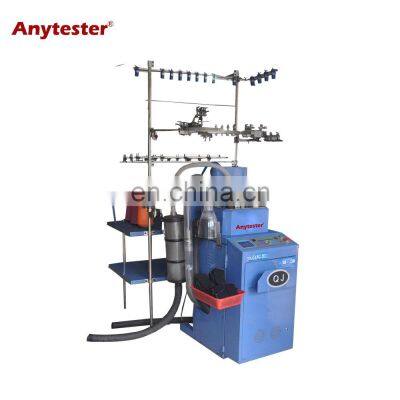

3.5 Inch Automatic Sock Knitting Machine Flat Hosiery Knitter With One Year Warranty
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yarn Sample Winder for Various Yarns With 30 Working PositionNegotiableMOQ: 1 -
AATCC 127 BS EN 20811 Fabrics Hydrostatic Head Tester With Microcomputer ControlNegotiableMOQ: 1
-
Small Size Plastic Film Strip Cutter Easy to OperateNegotiableMOQ: 1
-
AATCC Rotary Crockmeter Rubbing Test Machine Rotary Crockmeter for Textiles MaterialNegotiableMOQ: 1
-
GB/T Standard Laboratory Temperature and Humidity ChamberNegotiableMOQ: 1
Product Description
AT252A Flat Hosiery Knitter is used to weave a variety of styles and colors of hosieries.
Feature
★Single socks can be woven into one main color and five auxiliary color;
★Up to 13 colors can be woven.
★The entire sock weaving system control by the computer automatic (no drum type), friendly man-machine interface, socks machine movements by the computer automatically control; no manual operation. To achieve the socks, socks, including the entire socks with the automatic molding, automatic socks.
★To maintain high-speed operation, the speed of up to 300 r / min, 24 hours a day can be socks 240 pairs or so.
★Use of stepper motor can adjust the sock textile density.
★The maximum pattern range of 200 needles; can be woven all kinds of shapes (including three-dimensional) of the flower, all kinds of socks; according to flower needs.
★High sensitivity of the broken line, broken needle protection, improve production efficiency and reduce the cost of production.
★Automatic control of oil supply speed; according to the need to refuel, save fuel, reduce losses.
★Flower design system easy to operate, easy to learn, get started fast.
★Three-phase power supply 380/415 and frequency 50 / 60HZ is both OK.
★The main parts use of popular accessories, interchangeable with other models of accessories.
★You can do three-dimensional socks, root angle from the computer automatically adjust, easy to operate.
★The use of double-pin, double press the needle technology, can greatly improve work efficiency, to overcome the previous single press
★Needle all sorts of defects, so that socks and socks with the operation more stable; reduce the time of the barrel reciprocating, great
★To improve the efficiency of knitting, barrel when the impact of small, change smooth, reducing the socks machine vibration.
★Flower type and set parameters, there may be U disk input, but also can be exported to the U disk to save, simple and convenient.
★Widely used in weaving all kinds of new socks, boys and girls stockings, socks, hair ring, wrist and so on.
★According to customer needs can choose Chinese, English user interface, easy to grasp the machine-like operators
★State, fabric density, speed, length, size, number of pieces, etc., the operator to set the correction.
Specification
Model |
AT252A |
Cylinder diameter |
3.5 inch |
Needle |
88-200 |
Cylinder rotation speed |
300-380rpm |
Machine output |
300pairs/h |
Power supply |
AC 380/415V±5%, 50/60Hz 2.4KW |
Dimension |
150cm*120cm*200cm |
Weight |
220kg |
Packing & Delivery
Packaging |
||
Size |
150cm*120cm*200cm |
|
Weight |
220kg |
|
Packaging Details |
1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. |
|
Payment
Payment Term
|
T/T
|
EXW |
30% T/T in advance, paid the balance before shipment |
||
FOB |
|||||
CFR(C&F) |
30% T/T in advance, paid the balance against copy of B/L |
||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd |
||||
West Union |
|||||
Delivery Time |
7~10days after receiving payment for one container |
||||
