Home > Instruments & Meters > Test Instrument > Test Machine > ISO 18066 Filament Crimp Shrinkage Tester Automatic
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Product Description

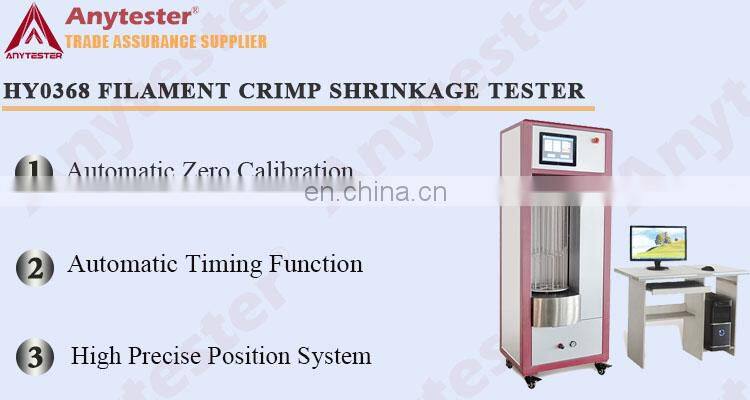

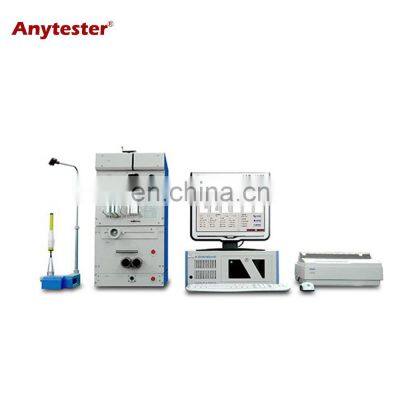

HY0368 Full Automatic Filament Crimp Shrinkage Tester is used to determine the shrinkage in boiling water or in dry hot air (after treatment) of synthetic filament yarns, such as, polyester, nylon and polypropylene.
Details & Features
Model | HY0368 |
Load range | 2.5cN~5000cN Randomly settable and auto-loading |
Load accuracy | 0.2cN |
Sample length | 1000mm |
Length measuring range | 0~150mm |
Test index | Crimp shrinkage CC (%) Crimp modulus CM (%) Crimp stability CS (%) Thermal shrinkage S (%) Mean, SD and CV of each index |
Data input | Keyboard and mouse |
Data output | Monitor display or printed by printer |
Number of sample per batch | 30 |
Air pressure required | 0.2~0.3Mpa |
Power supply | AC220V 50Hz 0.5KW for main machine AC380V 4.8KW for oven |
Dimensions | 605×530×1640mm (L×W×H) |
Specification
★High precise position system, no need of repeating restoration and high working efficiency.
★Automatic changing of load function.
★Automatic timing function.
★Automatic length measurement.
★Automatic zero calibration.
★Automatic calculation and printing of test result.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
