Product Description

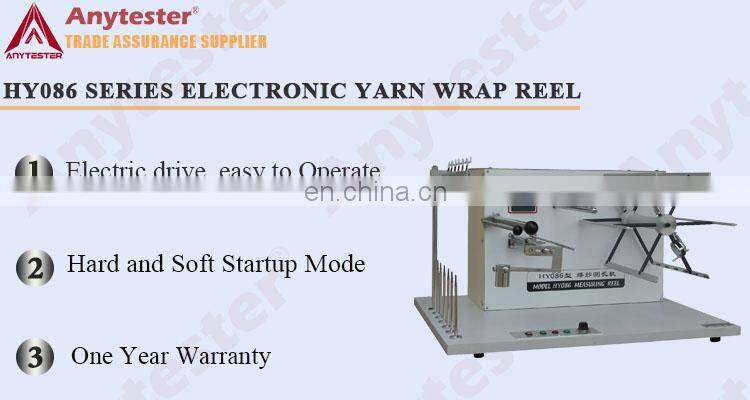

Series Electronic Yarn Wrap Reel
HY086 Series Electronic Yarn Wrap Reel is used to produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
Specification
Model | HY086C | HY086E | HY086F | ||
Reel circumference | 1000mm | 1 yard (36 inch) | 1.5 yard (54inch) | ||
Working position | 6 or customized | ||||
Rotational speed | 25-300RPM (numeric pre-settable) | ||||
Interval of spindle | 65mm | ||||
Number of wrap | 2-9999 Rev (pre-settable) | ||||
Programmable stop | 1-9 rev (pre-settable) | ||||
Traveling reciprocating distance | 35mm+/-1mm | ||||
Reeling pre-tension | 0-100cN (pre-settable) | ||||
Power supply | AC220V 50Hz | ||||
Dimensions | 780×660×480mm (L×W×H) | ||||
Weight | 50kg | ||||
Details and Features
Our Company
Packing&Delivery
Packing | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
