Product Description

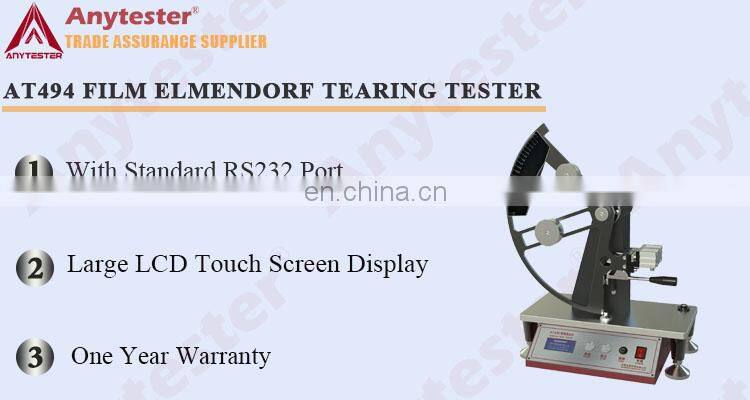

AT494 Film Elmendorf Tearing Tester is used to determine the tearing resistance of film, sheet, flexible PVC, PVDC, waterproof roll, weaving material, polyolefin, polyester, paper, board, textile, non-woven fabrics and other material.
Standard
ISO 6383, 1974
ASTM D1922, D1424, D689
GB 11999, 455.1, 455.2
TAPPI T414
Specification
Model
AT494
Test range
0~200gf, 0~400gf, 0~800gf, 0~1600gf, 0~3200gf, 0~6400gf (Selectable)
Clamp mode
Pneumatic
Release mode
Pneumatic
Resolution
1gf
Arm of force
104±1mm
Tearing initial angle
27.5 ±0.5°
Tearing distance
43 ±0.5mm
Details & Features

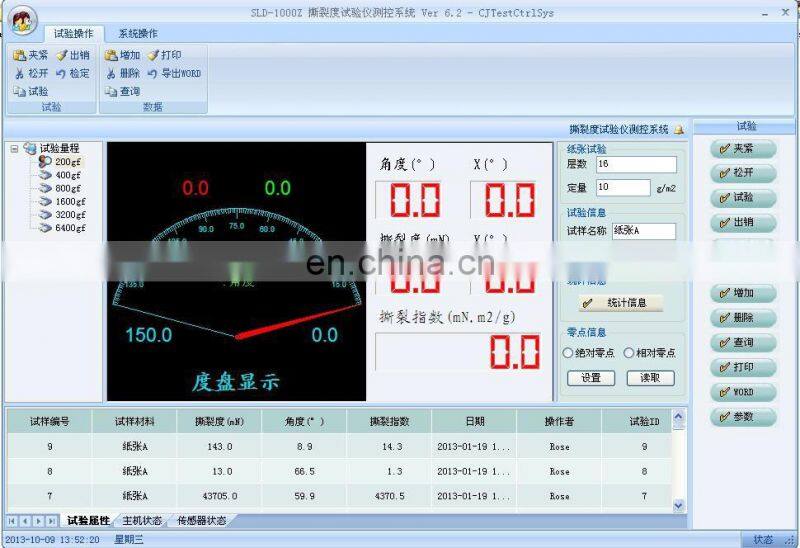

★The machine shell is treated with metal baking paint, with imported special aluminum working table and operation panel. ★ Micro-computer control, large LCD touch screen display ★ With standard RS232 port ★ Can perform the test on main machine or with computer control ★ It has professional software to communicate with computer, supports data output of several test units, more testing items display on software, such as tearing index, tearing angle etc.

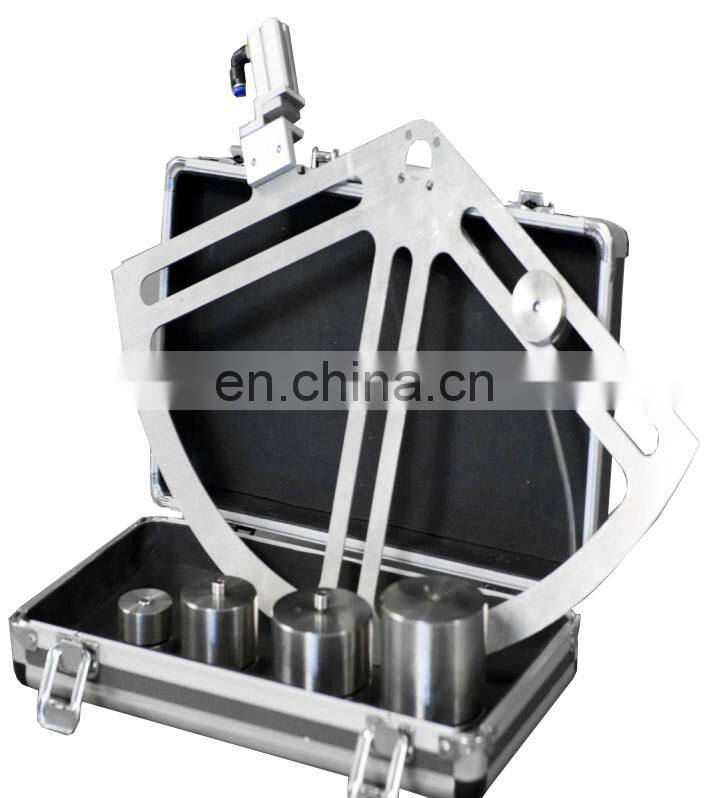

★Equipped with different weights to meet different testing range

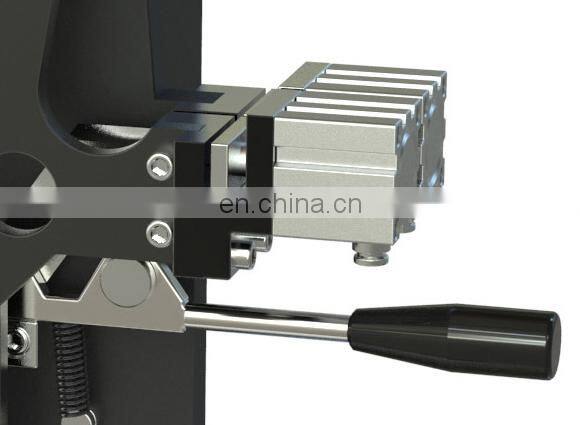

★Pneumatically clamp the specimens and pneumatically release the pendulum.
★Digital leveling controlling system to make the machine always working in perfect status

Operating Environment requirement: 1.Temperature: 15℃-35℃ 2. Humidity: less than 70%RH
