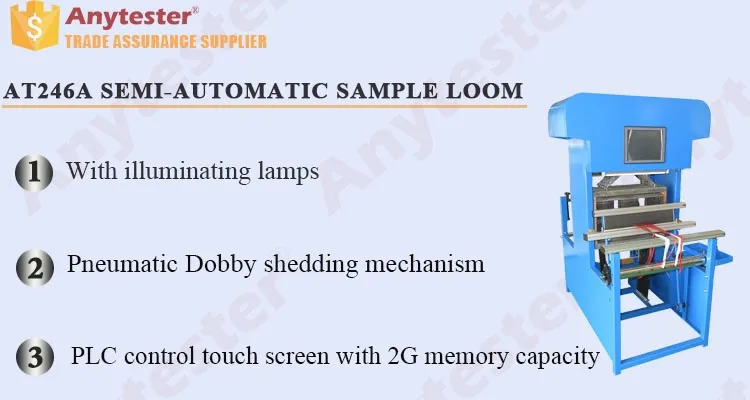

Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen

Anytester (hefei) Co., Ltd.
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen thumbnail-1
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen thumbnail-2
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen thumbnail-3
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen thumbnail-4
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen photo-1
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen photo-2
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen photo-3
Semi-automatic Sample Loom For Sample Weaving Fabrics With PLC Control Touch Screen photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

AT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Specification
Model
AT246A
Shedding Method
Dobby
Reed width
16inch or 20inch
No. of heald frame
16 (20 optional)
Let-off
Manual
Shedding
Pneumatic & PLC control
Color selection
Manual
Beat-up
Manual
Take-up
Manual
Air pressure
0.45~0.8Mpa
Air consumption
Max. 200L/min
Power
A220V 50Hz, single-phase
Dimensions
1300×980×1510mm (L×W×H)
Weight
Approx. 200kg
Detailed Images

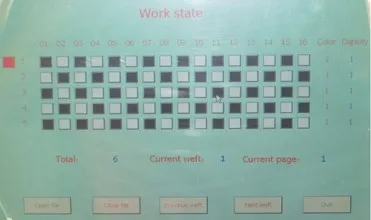

 Working Interface

★ PLC control touch screen with 2G memory capacity to store designed patterns;

★ Designable and editable patterns and USB interface to share designed patters;

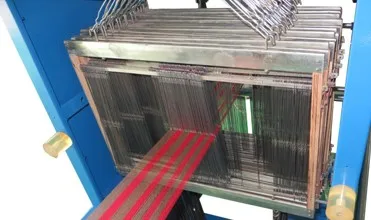

Heald Frames
★ Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;

★ Outer surface treated by baking varnish, good brightness and nice appearance;

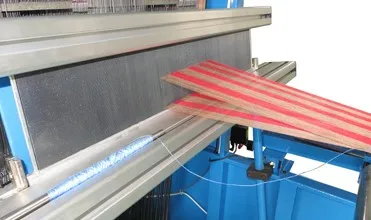

 Shedding

★ Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

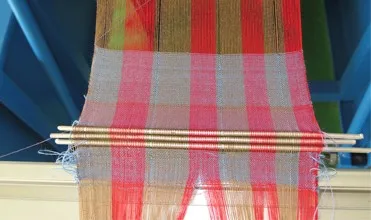

Woven Fabric Sample

★ With illuminating lamps;

★ Stable operation, low noise and high reliability;

Packing & Delivery
Packaging
Size(cm)
130(L) * 98(W) * 151(D)
Weight
200Kg
Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Related Products
AT241C Automatic Single Yarn Warping Machine
AT241B Small Sample Warping Machine
AT247 Automatic Air-Jet Sample Loom
AT248 Automatic Rapier Sample Loom
Payment



Payment Item



 T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

 30% T/T in advance,paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 50,000usd
Delivery Time
7~10 days after receiving payment for one container
Our Company

History

Since 1982 with more than 20 years' experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product
