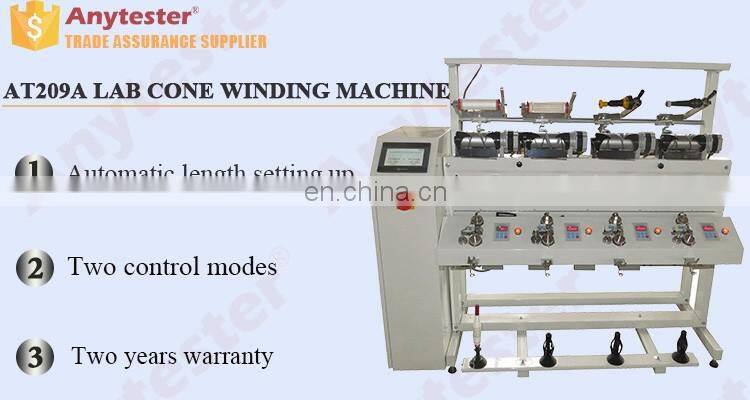

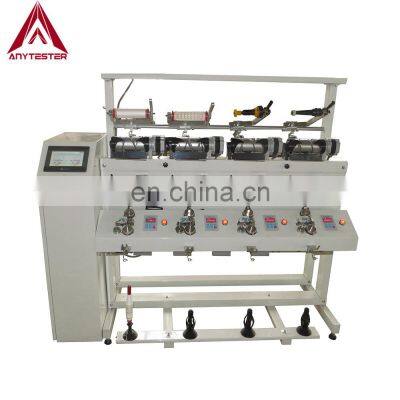

AT209A Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.

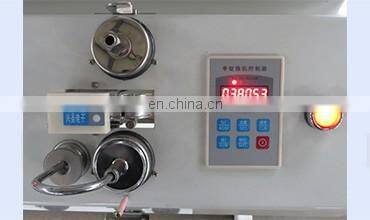

Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;
Automatic length setting up to 999999 meter;

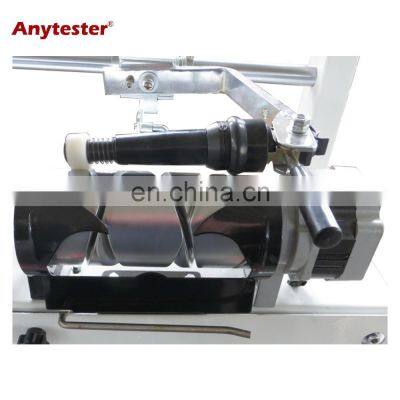

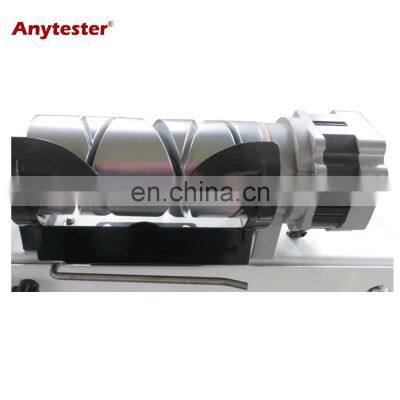

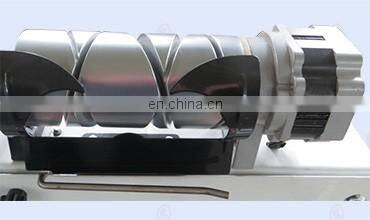

DC brushless motor to independently drive each grooved drum with adjustable winding speed;
Optional knotter and optional electronic yarn cleaner;

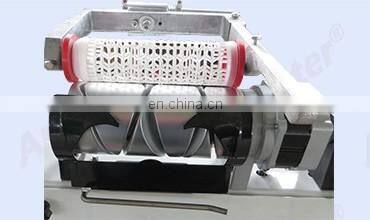

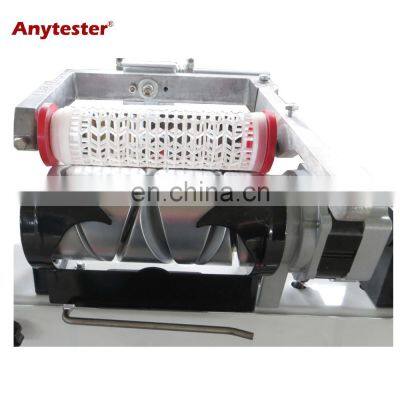

Optional bobbin clamps for different bobbins;
Microcomputer controlled anti-aliasing;
Optical yarn breaking detector for each spindle;
Model | AT209A | ||||
Number of spindles | 4, 6, 12, 24, 36, ..., 108, 120 | ||||
Grooved drum | O/D82mm | ||||
Take-up package | Pitch: 2.5×147 | ||||
Max. package diameter | 3º30´, 4º20´,5º57´,9º15´or cylindrical | ||||
Max. length setting | ¢280mm | ||||
Drive mode | 999999 meter, electronic setting | ||||
Max. winding speed | DC brushless motor with adjustable speed | ||||
Yarn-guiding traverse | 1100meter/minute | ||||
Radial anti-aliasing system | Standard 147mm | ||||
Packaging | ||
Size(mm) | 6220 (L) * 760 (W) * 1950(D) | |
Weight | 1800Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
ERIC QIN | ||
Website | ||
Mobile Phone | +86 188 5510 5986 | |
Whatsapp | +86 188 5510 5986 | |
Skype | eric-qlk | |
Wechat | +86 188 5510 5986 | |
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
