Product Description

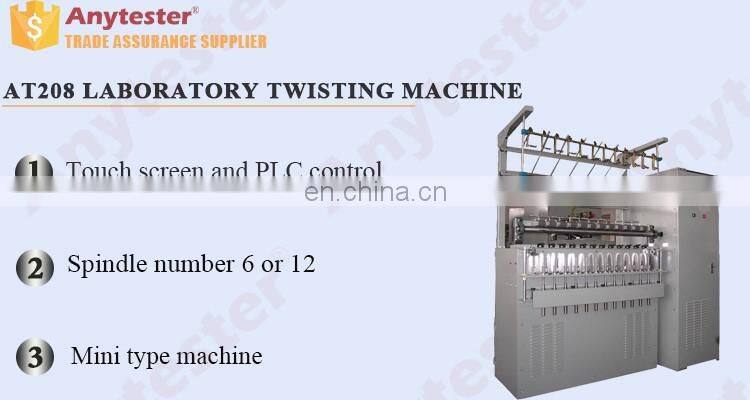

AT208 Laboratory Twisting Machine is part of the mini spinning system. It's mainly used in university, researching center etc. and it is used to twist plied yarn into folded yarns through ring spinning and twisting.
Features
★ It adopts touch screen and PLC control.
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
Specification
Model | AT208 |
Spindle number | 6 or 12 |
Spindle length | 205mm |
Spindle speed | 5000~20000 RPM |
Spindle gauge | 42mm |
Roller diameter | 25mm |
Ring diameter | 38/42/45mm |
Output capacity | 0.25 ~ 1kg/h |
Max. output speed | 42m/min |
Twist range | 1200 ~ 2000 twist/m |
Power | 220V/380V, 50/60Hz, 850W |
Dimension | 1200*800*1600mm |
Packing & Delivery
Packaging | ||
Size | 1200*800*1600mm | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Payment
Payment Item | T/T | EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance,paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 50,000usd | ||||
Delivery Time | 7~10 days after receiving payment for one container | ||||
