Product Description

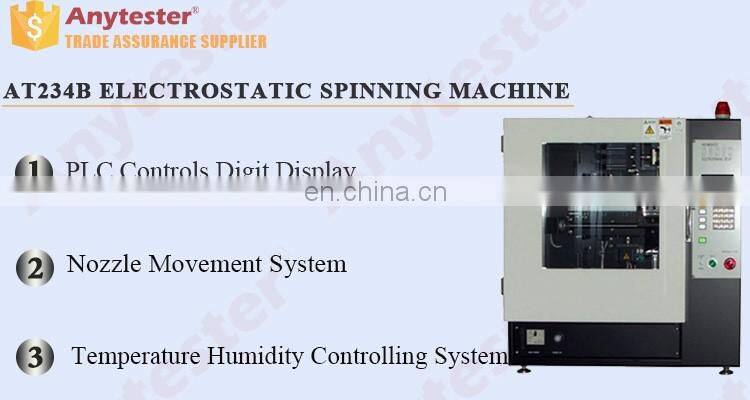

AT234B Electrostatic Spinning Machine can be used to make nowoven fabric of 210×297mm (A4 paper size) in size, to make namofibers of various materials, such as, polymer and ceramics and to make various namofibers, such as, with smooth surface, porous surface or globular by electrostatic spinning. With optional accessories, it can also be used to make orientation-arrange namofibers.
Futures
★Temperature and Humidity Controlling System: Infrared heating system for controlling temperature and automatic temperature controlling with ultrasonic or laser humidifier and electronic cooling dehumidifier (except AT234BS);
★ Adjustable positive high-voltage power source, overcurrent and overvoltage protection and wide output pulse;
★ Nozzle movement system: High-precision screw rod, grating scale feedback control with automatic position compensation, rapid response and delicate reversing;
★ Various optional nozzle structures and collecting devices selectable to meet different requirements;
★ Secure and reliable motor, excellent stability, low noise; PLC direct controls rotation speed and digit display.
Certifications
Model | AT234BS | AT234BE | AT234BM | AT234BF | |||||
Potential customer | Lab | Lab/Enterprise | Medical enterprise | Factory | |||||
Temperature controlling system | -- | RT~80℃ Infrared heat, rapid heat, high temperature accuracy | |||||||
Humidity controlling system | -- | Automatic humidity control, ultrasonic or laser humidifier; electronic condensing humidifier,With current and voltage protection, wide output and adjustable voltage | |||||||
Voltage controlling system | Positive high-voltage power source DC 0~30KV instant power: 100W~60KW Output pulse width:1us~50us With current and voltage protection, wide output pulse and adjustable voltage | -- | |||||||
Flow controlling system | Micro injecting pump | 0.1~600ml/h Applicable injectors: 10ml injector 0.1~300ml/h 20ml injector 0.1~400ml/h 30ml injector 0.1~600ml/h | -- | ||||||
Flow controlling system | Specialized constant-flow pump | -- | Optional | Optional | 0~2500ml/min Parts contacting with liquid are made of stainless steel and PTFE, high efficiency and maintenance-free, suitable for transporting various liquids | ||||
Nozzle movement system | Single-axis for single collecting drum Speed: 0~500mm/s Effective stroke: 150mm Accuracy<5um | X-Y bi-axis Speed: 0~500mm/s Effective stroke: 150*150mm Accuracy<5um | X-Y-Z tri-axis Speed: 0~500mm/s Effective stroke: 150*150*150mm Accuracy<5um | ||||||
Nozzle structure | Clip-type nozzle, simple and practical Only need to clean the metal parts by direct immerging them into solvent to clean When replace spinning solution, only need to replace injector, plastic tube, metal connector and injecting needle | Multi-hole nozzle Suitable for materials of wide viscosity range; Carry out spinning at lower voltage | |||||||
Filament collecting device | Normal motor with reducer; rotating speed 320rpm/min, tooth-embed separation structure with built-in plastic cushion and whole body made of aluminum alloy High stability, low noise, secure and reliable; PLC direct control rotating speed, digit display, variable speed and real-timely adjustable | High speed motor with rotating speed 3000rpm/min Imported steel balls bearing makes the service life of the motor up to 10000hour High rotation speed, long service life, large torque, low temperature and noise, stable running and convenient to use; PLC direct control rotating speed, digit display, variable speed and real-timely adjustable | |||||||
Mechanical Structure | Control module | Button control | PC control with built-in PLC and 7-inch industrial PC | ||||||
Collecting module | Rotary collecting drum, suitable for making nonwoven fabric Adjust the rotation speed to make nonwoven fabric at low speed or oriented fibers at high speed Collecting area: approx.1300cm2 Rotation speed: approx.63~320rpm/min Collecting drum size: ¢200×200mm or ¢200×300mm | ||||||||
Shell structure | Cold-roll steel sheet with surface spraying plastics and insulation film | 304 stainless steel structure with insulation lining | 304 stainless steel structure with no dead angle design of body and insulation lining | 304 stainless steel structure with insulation lining | |||||
Power supply | AC220V 50Hz, 2500W | ||||||||
Dimensions | 800×450×840mm | 1200×700×900mm | 800×450×840mm | 1200×700×900mm | |||||
Packing & Delivery
Packaging | ||

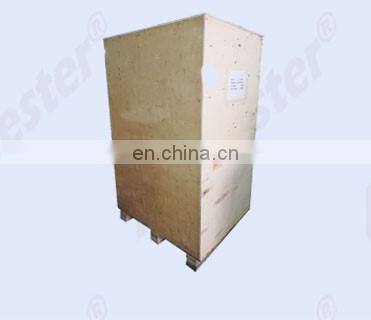

Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Item | T/T | EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance,paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 50,000usd | ||||
Delivery Time | 7~10 days after receiving payment for one container | ||||
