Mini Spinning System Laboratory Drawing Frame

Anytester (hefei) Co., Ltd.
Mini Spinning System Laboratory Drawing Frame thumbnail-1
Mini Spinning System Laboratory Drawing Frame thumbnail-2
Mini Spinning System Laboratory Drawing Frame thumbnail-3
Mini Spinning System Laboratory Drawing Frame thumbnail-4
Mini Spinning System Laboratory Drawing Frame thumbnail-5
Mini Spinning System Laboratory Drawing Frame photo-1
Mini Spinning System Laboratory Drawing Frame photo-2

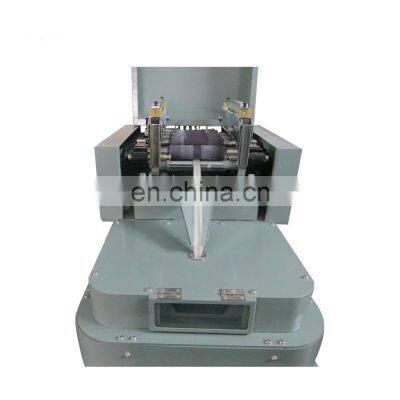

Mini Spinning System Laboratory Drawing Frame photo-3
Mini Spinning System Laboratory Drawing Frame photo-4
Mini Spinning System Laboratory Drawing Frame photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

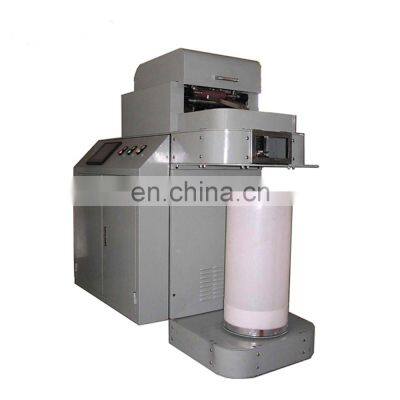

AT204 Laboratory Drawing frame is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT204 Laboratory drawing frame is used to make drawn sliver from carded sliver.

Detailed Images

Mini machine, save researching cost and easy to operate and maintain;

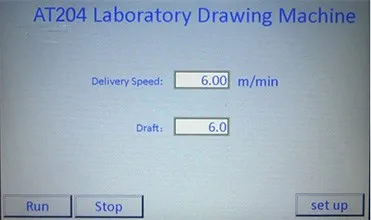

Touch screen & PLC control;



Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;



Frequency converter of high efficiency to control roll speed;

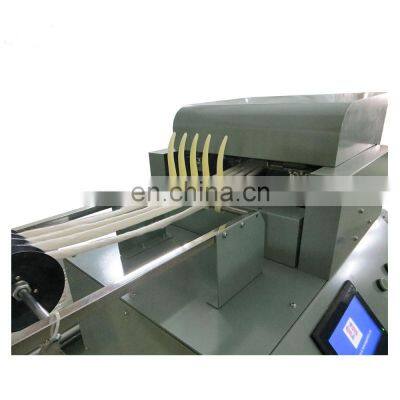

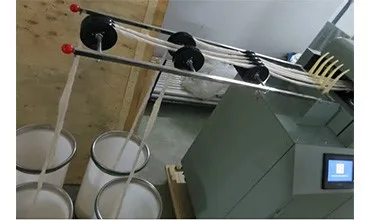

Doubling up to 8 slivers;

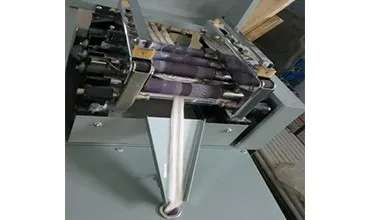

Four-up-four down drafting structure;

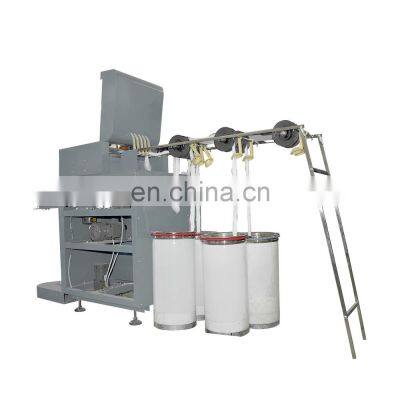

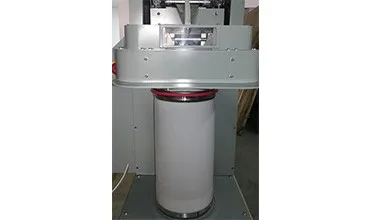

Can coiler to output and coil cotton sliver in sliver can;


Specification
Model
AT204
Fiber type
Cotton or cotton-type chemical fibe
Customized for wool
Doubling
Up to 8
Feed type
Sliver
Output type
Sliver
Sliver speed
2, 4, 6, 8, 10, 12, 14, 16m/min, selectable
Roll diameter
¢35mm
Drafting type
4-roll, 3 straight line drawing
Drafting structure
4-up-4-down
Drafting range
2~30
Doubling range
Up to 8
Pressurizing method
Spring pressure cradle
Output capacity
0.25~1kg/h, adjustable
Sliver can size
Φ250×550mm
Control mode
Touch screen & PLC control
Power supply
AC220V 50Hz, 650W
Dimensions
1300×800×1750mm (L×D×H)
Weight
400kg
Packing Details
Packaging
Size(cm)
130(L) * 80 (W) * 175 (D)
Weight
400Kg
Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.

2. The box is filled with foam to protect the equipment from impact.

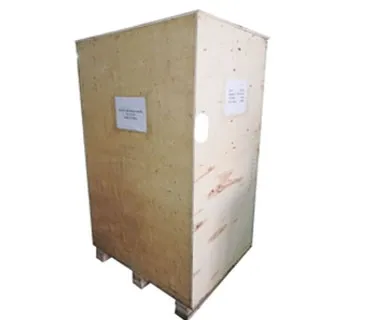

3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Item


T/T
EXW



30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)



30% T/T in advance,paid the balance against copy of B/L

CIF
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 50,000usd
Delivery Time
7~10 days after receiving payment for one container
