China Supplier Automatic Circular Knitting Machine Yarn Textil Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

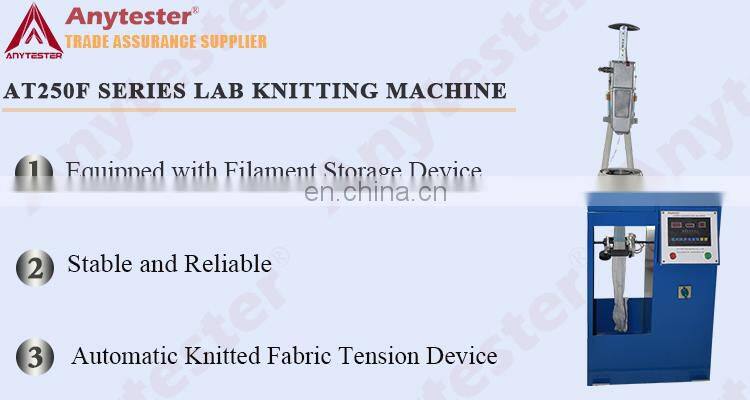

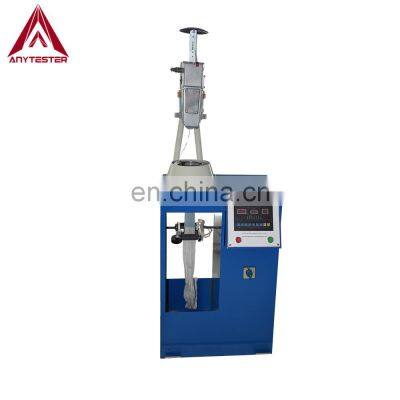

AT250F Series Lab Knitting Machine is specially designed to knit fabric sample of POY, DTY or FDY for the assessment of yarn uniformity and dyeing affinity. It is applicable to various filaments of 30~1000dtex. It is an ideal equipment for dyeing test in knitting factories.

Specification
Model | AT250F-I | AT250F-II | |
Needle cylinder diameter | ¢89mm (3.5inch) | ||
Number of feeder | 1 | ||
Number of needles | 144~300N | ||
Running speed | 180r/min | 300r/min | |
Display mode | LED display | ||
Applicable filament | POY (customized), DTY, FDY | ||
Applicable filament fineness | 25~1000dtex | ||
Power supply | AC380V 50Hz, three-phase | ||
Dimensions(L×W×H) | 720×360×1450mm | 720×490×1450mm | |
Weight | 85kg | 100kg | |
Filament fineness (dtex) | Number of Needles | |
25~40 | 300 | |
35~65 | 280 | |
50~100 | 260 | |
75~150 | 240 | |
150~350 | 176 | |
More than 300 | 144 | |
NOTE-The standard needle cylinder for this machine has 240needle. If you want another needle cylinder, please inform us before order. | ||
Details & Features

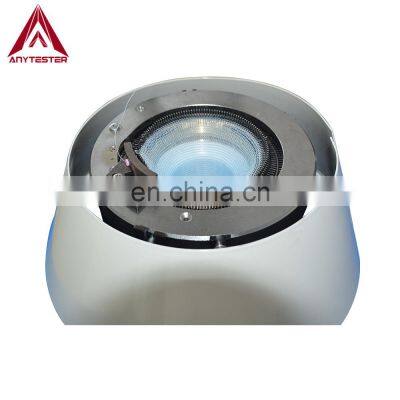

Needle Cylinder
★ Applicable to various filaments of 25~1000dtex, such as POY, DTY and FDY;
★ Standard needle cylinder has 240 needles; other needle cylinder with different needles are optional;
Relationship between the filament fineness and number of needles are as below:
Filament Storage Device for AT250F-II and AT250F-III
★ Equipped with filament storage device;


★ Adjustable running speed up to 300rpm (only for AT250F-III);
★ Automatic knitted fabric tension device;
★ LED display for AT250F-I and -II while touch screen for AT250F-III;
★ Stable and reliable;
Our Company





History
Since 1982 with more than 20 years’ experience

Warranty
Two Year Warranty for whole product

Training
Video and user manual for training

Onsite service
Installation and training service is available

Testing service
Free sample testing before order is available

Lead time
15 working days lead time for most product
Packing & Delivery

Packaging | ||
Dimensions | 720×360×1450mm | |
Weight | 85kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
