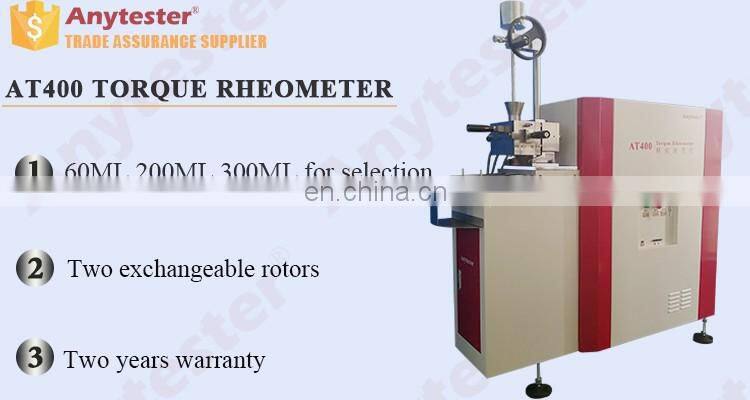

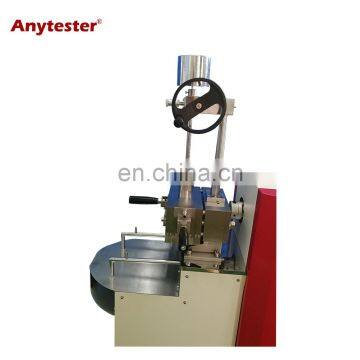

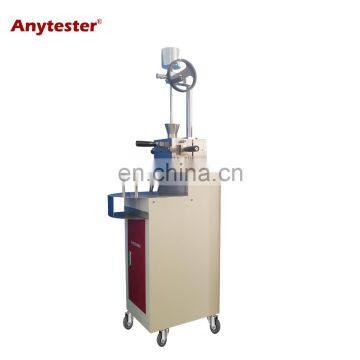

Torque Rheometer For Plastic And Rubber Testing

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

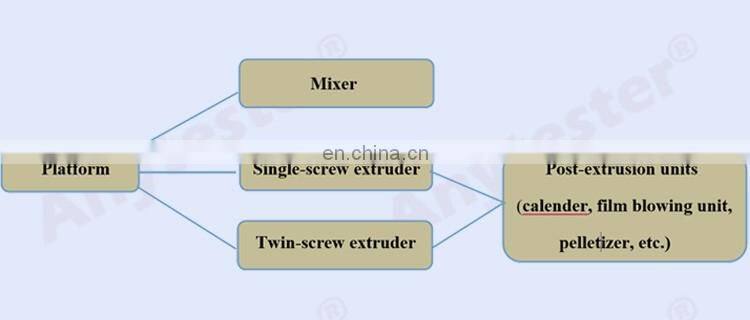

AT400 Torque Rheometer is a measuring system for studying the flow, plasticizing, heat and shear stability of polymers. This system consists of a platform and some function units, such as the mixer and single-screw or twin-screw extruder. The platform connected with a function unit can measure flow and compounding behaviors, critical processing parameters of temperature, pressure, torque and viscosity of polymers in the laboratory-requiring only small sample volume. Designed to an excellent system with high measuring precision, handling flexibility and testing reproducibility, this instrument has been widely applicable in science research, quality control and process experiment. The whole system is as follows:

Specification for platform
Motor		Panasonic Servo Motor & Driver, 3.0kw
Speed range		0.1~200rpm
Speed accuracy		0.05%F.S.
Torque		0~300Nm
Torque accuracy		0.1%F.S.
Melt pressure range		0.1~100MPa
Melt pressure accuracy		0.5%F.S.
Temperature range		0~350℃
Temperature accuracy		±1℃
Temperature channel		5 (4 channels for controlling temperature)
Power supply		3phase, AC380V, 50Hz, 30A

Details & Features

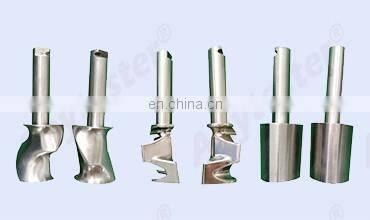

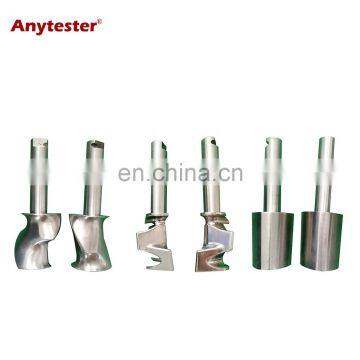

Rotors

Banbury, Cam or Delta optional

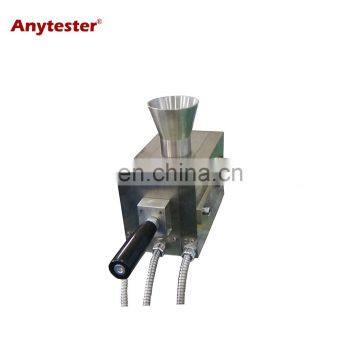

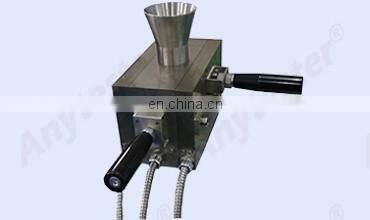

Mixer with the simplified structure

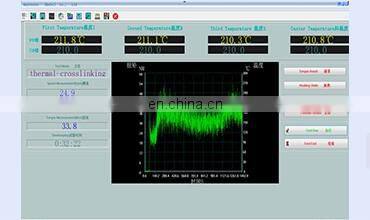

Interface of Platform Software

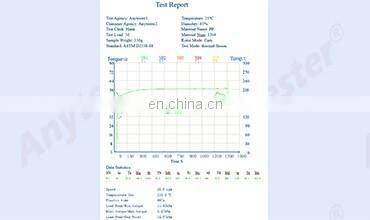

Test report

Our Company

History

Since 1982 with more than 20 years' experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications

Packing & Delivery

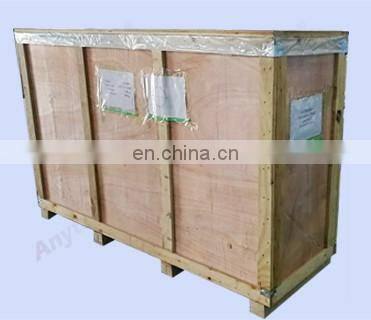

Packaging
Size	215 (L) * 73 (W) * 135 (D)
Weight	408Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery Time	7~10days after receiving payment for one container
