Product Description

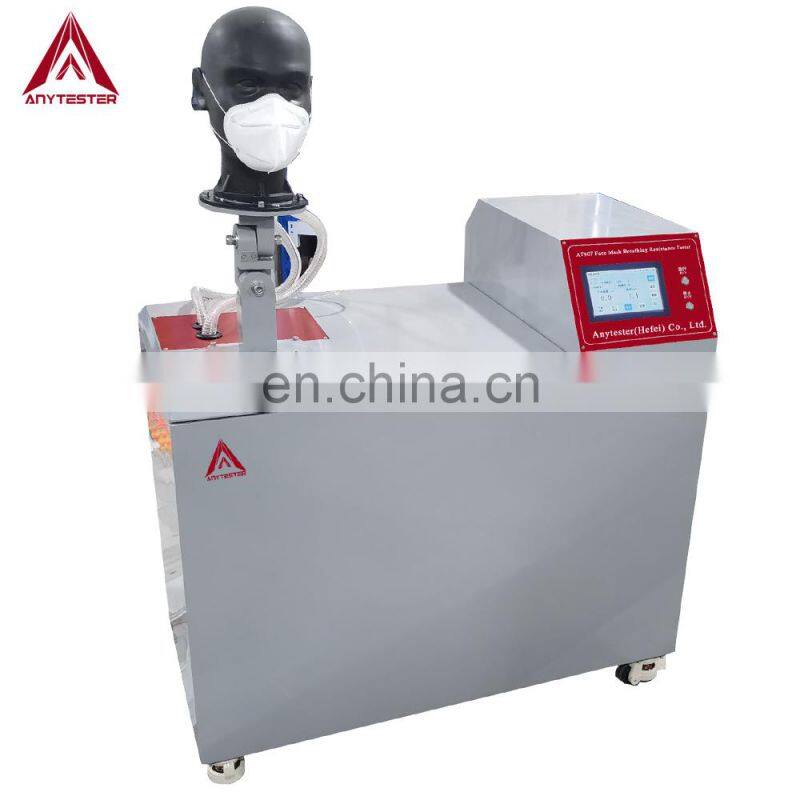

AT907 Series Breathing Resistance Tester is used to measure the resistance of breathing resistance (including inhalation resistance and exhalation resistance) of various respiratory protective devices and respirators on the specific conditions.

Standards
EN143
GB2626-200
GB 262, GB/T 32610, GB/T 19083
BS/EN 13274-3, EN 149
Futures
* Colorful touch screen display and control with English menu operation mode, convenient to operate and easy to read.
* Built-in thermal printer, convenient to printout test result on the site.
* High-precision pressure difference sensor and digital flow-meter, ensuring high accuracy.

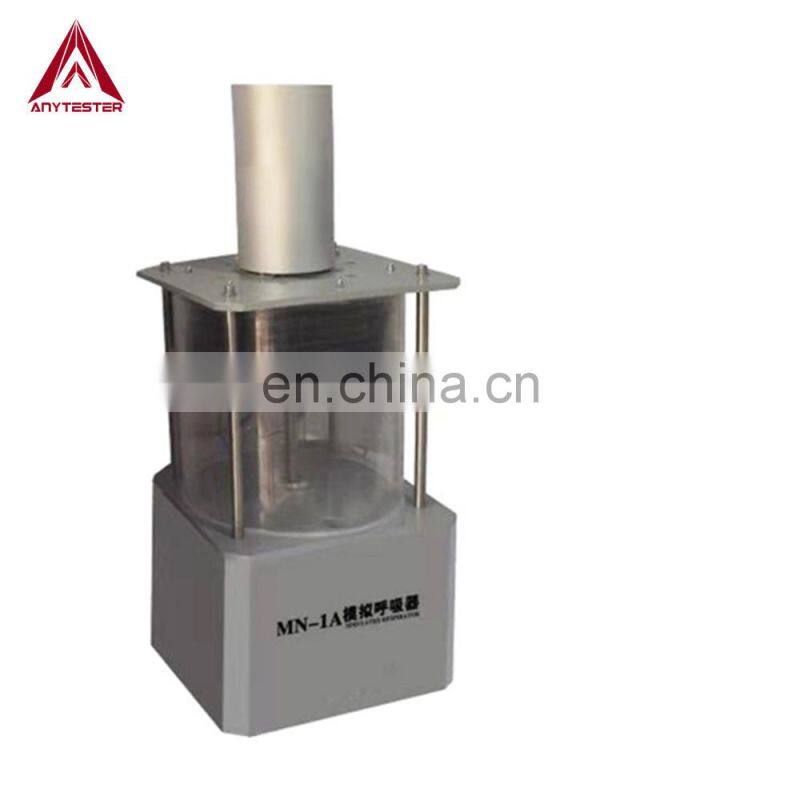

* Air source adopts regulated blower for AT907A and breathing simulator for AT907B.
* Two models: expiration and inspiration, settable.
* Core controlling parts 32-bit multifunctional main board (Italy).
* 3D standard dummy head to simulate the actual expiration and inspiration, enhancing the accuracy of test data.
* Automatic recording test data after test and sound hint at test end.
* The dummy head can move in 5 direction to meet the request of EN 143 & EN149.
* Floor-type, stable running and low noise.
Specification
Model No.
AT907A
AT907B
Test method
Static breathing resistance
Dynamic breathing resistance
Air source
Regulated blower
Breathing simulator
Breathing frequency of breathing simulator
---
(5~30)times/min
Error of breathing frequency
---
±0.3times/min
Flow range
(20~180)L/min±2%
---
Tidal volume of breathing simulator
---
(0.5~2.5)L±0.1L
Measuring range of digital pressure difference
-1000Pa~1000Pa
Pressure accuracy
1Pa
Sucking rate of sucking pump
≥100L/min
---
Display
Touch screen display
Power supply
AC220V 50Hz, 650W
Dimensions
550×360×620mm
(W×D×H)
1000×660×1200mm
(W×D×H)
