ASTM F1862 Face Mask Synthetic Blood Penetration Tester

ASTM F1862 Face Mask Synthetic Blood Penetration Tester thumbnail-1
ASTM F1862 Face Mask Synthetic Blood Penetration Tester photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Anytester (hefei) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

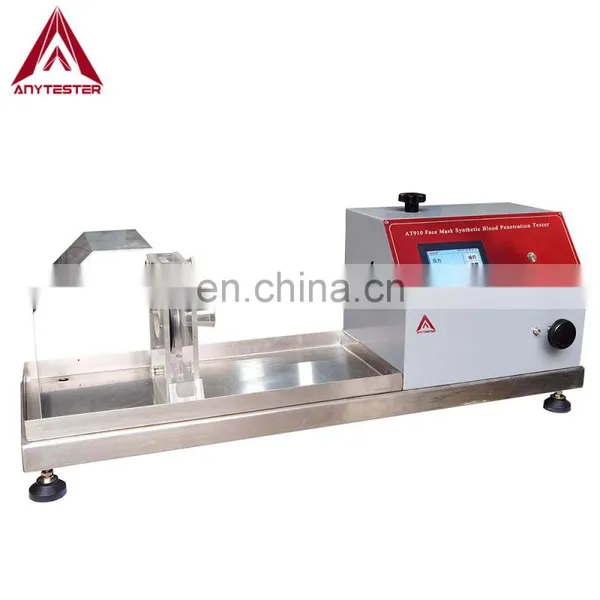

AT910 Face Mask Synthetic Blood Penetration Tester is used to measure the resistance of medical face mask or other coated materials to synthetic blood penetration at different test pressures.
Standard
GB 19083
YY0469
ISO 22609
ASTM F1862
Specification
Model No.
AT910
Air source
0.35～0.8MP, 30L/min
Simulate Blood pressure
10.6kPa, 16.0 kPa, 21.3 kPa（80mmHg, 120mmHg, 160mmHg）
Spraying distance
300~310mm, adjustable
Spraying nozzle diameter
Ф0.84mm
Spraying nozzle length
12.7mm
Spraying speed
450cm/s, 550cm/s, 635cm/s
Spraying time
Settable
Observation time
Settable
Power supply
AC220V 50Hz, 50W
Dimensions
560×360×620mm (W×D×H)
Weight
55kg
Details & Features

★Colorful touch screen display and control, convenient to operate and easy to read;
★Special spraying device at a rated pressure to spray a specific volume of synthetic blood in a controlled time;
★Direct selection of average blood pressures of 10.6kPa, 16kPa and 21.3kPa, no need of manual adjustment and convenient test;
★With target plate to block high pressure spraying liquid and to allow the stable pressure spraying liquid to spray onto the specimen, enhancing the accuracy and repeatability of liquid speed spraying onto the specimen;
★32-bit ARM processor, accurate spraying time.
