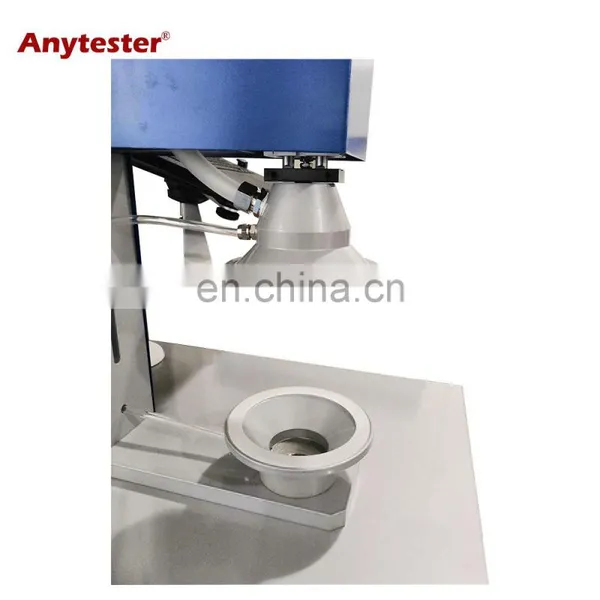

Help CenterAutomated Filter Tester Comply With EN143 and NIOSH 42 CFR 84 Used For Mask Testing
Related Products
-
Automated Filter Tester Suit For Mask With Salt and Oil Testing AvailableNegotiableMOQ: 1 -
Automated Filter Tester Built In Photometer With High Accuracy Totally In According With NIOSH 42 CFR 84NegotiableMOQ: 1
-
Fabric Hydrostatic Head Pressure Tester, Water Penetration Tester, Water PermeabilityNegotiableMOQ: 1
-
MVR Method PPHY Melt Flow Index Testing MachineNegotiableMOQ: 1
-
MFR an MVR Together Meltblown Fabric Testing Use Melt Flow Index TesterNegotiableMOQ: 1

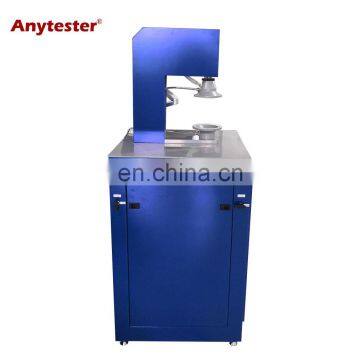

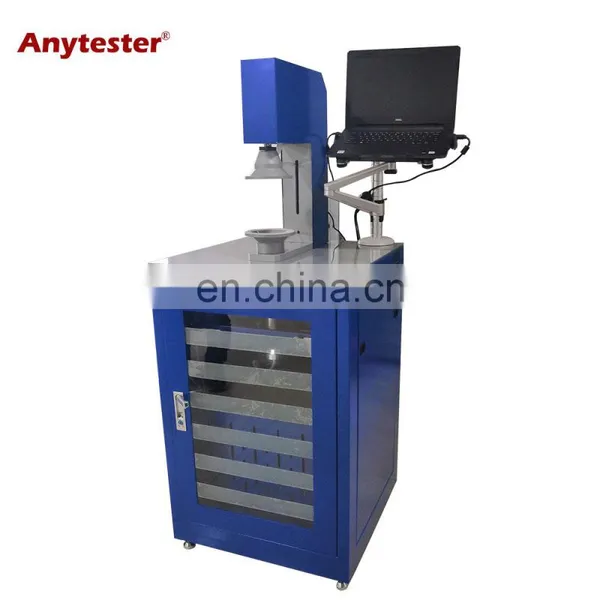

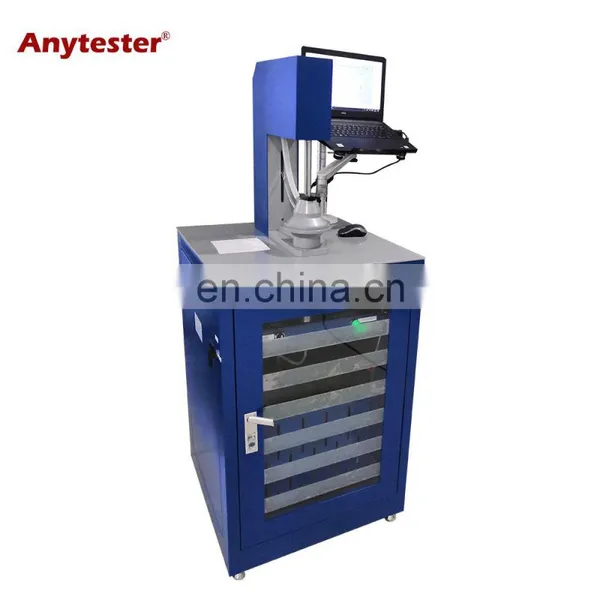

AT901 Automated Filter Tester is designed for a stand- alone tester to check a few filters per day or need to integrate your tester in an automated, high-volume, high-volume production line. It has proven track records of durability, reliability, and minimal maintenance, meeting the demanding requirements of manufacturing and quality control environments in the past ten years. It equipped with two sets specially designed aerosol generators enable highly repeatable and reproducible filter-efficiency measurements. It features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput, and improves overall measurement performance. As a result, HY9010 filter tester is ideally suitable for QC testing.
Standards | ||||||
EN143 | GB2626-200 | JMOL | ||||
NIOSH 42 CFR 84 | ||||||
Model | AT901 |
Aerosol | Salt,DOP,DEHS, Paroline, Corn oil etc |
Aerosol density | (50〜200) mg/m3(oil); (12〜20)mg/m3(salt) |
Detector | Laser aerosol particle counter |
Measuring range | (20〜100) L/min |
Detect temperature | 5~ 35℃ |
Related humidity | 0 ~ 90% RH |
OPC self-purification time | ≤10 mins |
OPC flow rate accuracy | ±5% |
OPC repeatability | 10% F.S |
OPC particle size distribution deviation | ± 30% |
OPC particle density deviation | ± 30% F.S |
Pressure detect | Digital pressure sensor (pressure difference transmitter) |
Pressure detect range | (0~0.88)MPa |
Pressure detect accuracy | Grade 2.5 |
Efficiency testing range | filter efficiency: 10~99.999% |
Operation display | LCD display |
Power supply | 200~235V, 50Hz |
Dimension | 160*90*170CM |
★ Simple, fast and automated operation
★ Compliance with more regulations and well received by many customers
★ Highly consistent test results
★ Support Chinese and English, menu type operating mode and large LCD display, it's easy to switch

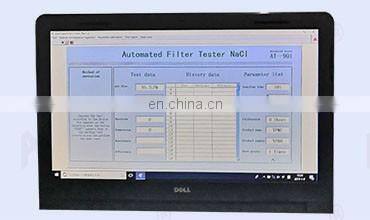

★ Computer control with special software
★ Designed for manufacturing environments
★ with many test items
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
