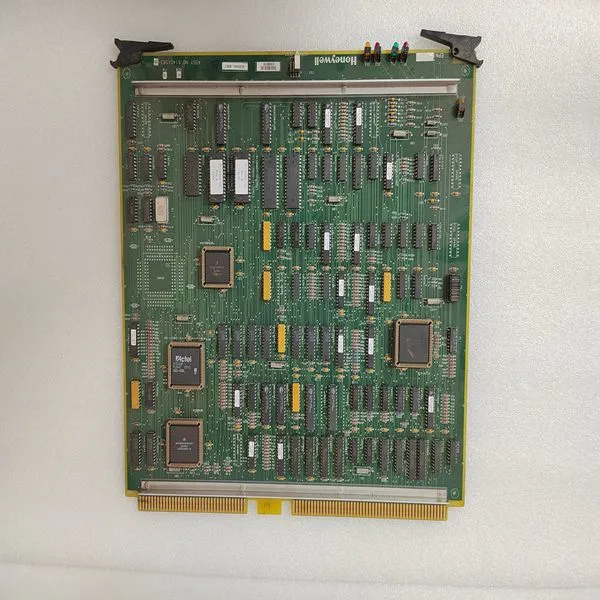

HONEYWELL 51401583-100 EPNI

Brand: HONEYWELL

Type:51401583-100 EPNI

Origin: the United States

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Relays Block When this header appears in the display, press the down arrow key to configure this block or press a left or right arrow key to select another block to configure. You may configure up to six relays in addition to the two pre-assigned relays (Alarm, Shutdown). The relay can be configured as either a level switch or as an indication. An example of a level switch is a Speed Switch and an example of an indication is Cascade Control Enabled. USE RELAY # 1? dflt= NO (Yes/No) Press YES followed by ENTER to use this relay output. Press NO followed by ENTER to skip to the next ‘USE RELAY’ question. IS RELAY # 1 A LEVEL SWITCH? dflt= NO (Yes/No) Press YES followed by ENTER to use this relay output as a level switch. Press NO followed by ENTER to skip to the ‘RELAY ENERGIZES ON:’ question. RELAY # 1 IS LEVEL SWITCH FOR : (must choose from list) Scroll through the option list by using the Adjust Up/Down Arrows or by selecting the NO key until the option desired appears, then press the YES or ENTER keys to select the option/function. OPTIONS FOR RELAYS IF USED TO INDICATE A LEVEL Actual Speed Aux Setpoint Speed Setpoint Speed/Load Demand KW Input Extr/Adm Demand Sync/Load Share Input HP Valve Limiter Extr/Adm Input LP Valve Limiter Extr/Adm Setpoint HP Valve Demand Output Cascade Input LP Valve Demand Output Cascade Setpoint First Stg Pressure Aux Input RELAY 1 ON LEVEL (UNITS) dflt= 0.0 (-20000, 20000) Enter the level switch ON setting in engineering units followed by the ENTER key. There is an ON and an OFF setting for each level switch option. This allows the user to program the desiredhysteresis for the function selected. RELAY 1 OFF LEVEL (UNITS) dflt= 0.0 (-20000, 20000) Enter the level switch OFF setting in engineering units followed by the ENTER key. (Must be less than the ‘Relay On Level’ Setting) RELAY 1 ENERGIZES ON : (must choose from list) Scroll through the option list by using the Adjust Up/Down Arrows or by selecting the NO key until the option desired appears, then press the YES or ENTER keys to select the option/function. OPTIONS FOR RELAYS IF USED TO INDICATE STATE Shutdown Condition Extr/Adm PID in Control Trip Relay (add’l trip relay output) Remote Extr/Adm Setpt Enabled Alarm Condition Remote Extr/Adm Setpt Active 505E Control Status OK Cascade Control Enabled Overspeed Trip Cascade Control Active Overspeed Test Enabled Remote Casc Setpt Enabled Speed PID in Control Remote Casc Setpt Active Remote Speed Setpt Enabled Aux Control Enabled Remote Speed Setpt Active Aux Control Active Underspeed Switch Auxiliary PID in Control Auto Start Sequence Halted Remote Aux Setpt Enabled On-Line PID Dynamics Mode Remote Aux Setpt Active Local Control Mode HP Valve Limiter in Control Frequency Control Armed LP Valve Limiter in Control Frequency Control Extr/Adm Priority Enabled
