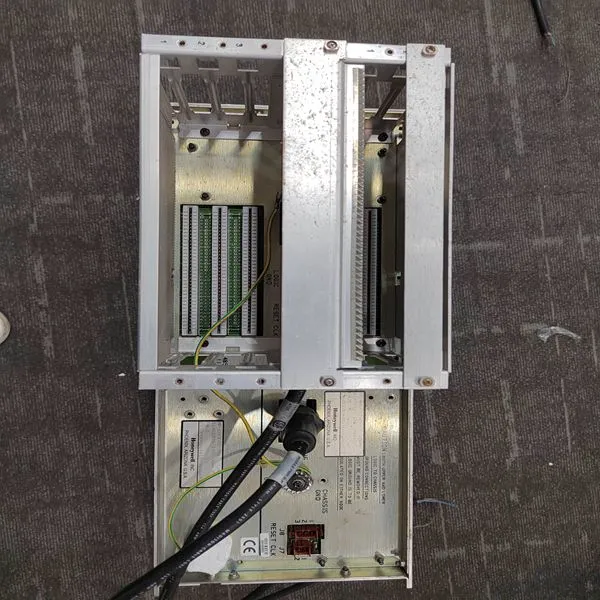

Help CenterHONEYWELL 51402455-100 MP-DNCF02-201
Related Products
Brand: HONEYWELL
Type:51402455-100 MP-DNCF02-201
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Once the programming steps have been completed, the Program Mode can be exited (refer to Figure 4-7 Exiting the Program Mode). To exit the Program mode the “CLEAR’ key is pressed twice. This initiates the 505E to save the configuration and to begin a Configuration Check procedure. If there are no errors in the programming, the 505E front-panel will return to the ready state and display the ‘Controlling Parameter/Press Run or Program’ screen. However, if there is an error in the program, the ‘Config ERROR–Press PRGM’ display will appear along will the programming error(s) discovered. The next section identifies the various configuration error messages and explains the meaning of the error. Program Configuration Error Messages When the Program Mode is exited, the control automatically performs a completeness check on the configured program to assure that required program blocks have values loaded into them. This check cannot determine if the values entered are realistic, but it makes sure that values have been loaded into required parameters. If any errors are found in the program, the ‘Config ERROR– Press PRGM’ display will appear along with the programming error(s) discovered. If there is more than one error discovered, they can be displayed by pressing the down arrow key. This key will scroll through all the error messages and allow you to determine their cause(s). The configuration error message alerts you that a programming change is required before the configured program can operate the turbine. You must reenter the Program Mode and fix the problem before the control will allow the turbine to run. The completeness check will continue to fail until the control is satisfied that the configured program is complete.
This section of the manual identifies the various configuration error messages that may appear and explains the meaning of the error. Start / Speed Program Errors No Start Mode Selected—RUN was selected but no start mode was selected in the Program mode. One of the three start modes must be selected in the Program mode under the Start Block. Speed > 15000 Hz—The maximum speed input is 15000 hertz. This is a limitation of the 505E’s hardware / speed sensing circuitry. The frequency input of the speed sensor must be less than this value. The gear the speed sensor is mounted on may need to be changed to one with less teeth, this will decrease the frequency seen by the speed probes. Spd #1 Fld
