Z Type Bucket Conveyor for Packing Machine

Z Type Bucket Conveyor for Packing Machine thumbnail-1
Z Type Bucket Conveyor for Packing Machine thumbnail-2
Z Type Bucket Conveyor for Packing Machine thumbnail-3
Z Type Bucket Conveyor for Packing Machine thumbnail-4
Z Type Bucket Conveyor for Packing Machine thumbnail-5
Z Type Bucket Conveyor for Packing Machine photo-1
Z Type Bucket Conveyor for Packing Machine photo-2
Z Type Bucket Conveyor for Packing Machine photo-3
Z Type Bucket Conveyor for Packing Machine photo-4
Z Type Bucket Conveyor for Packing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2006
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Foshan Dession Packaging Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Z type bucket conveyor for packing machine

Z type bucket conveyor for packing machine

Product Description

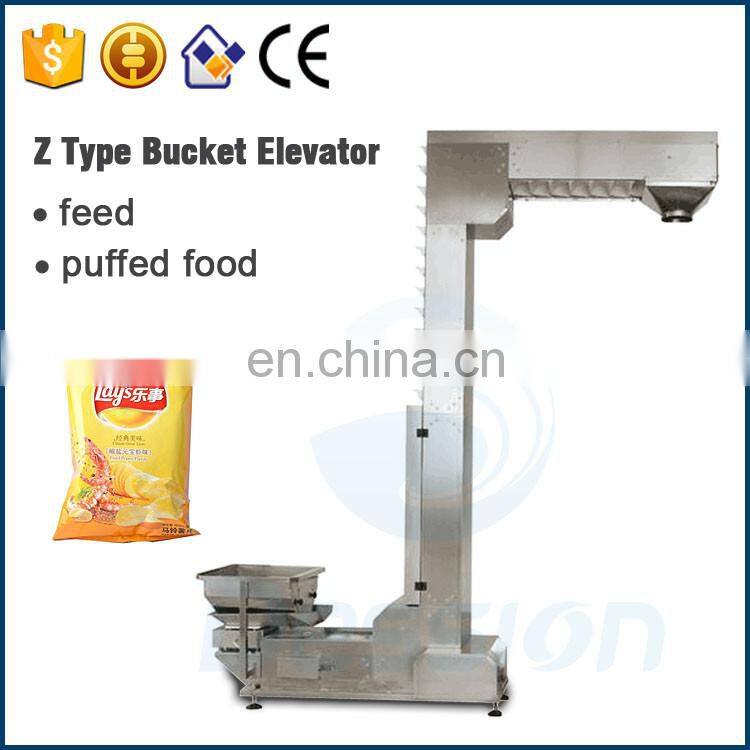

Z type bucket conveyor for packing machine
This professional custom wholesale cheap Z-type hoist / grain bucket elevator / lifting apparatus are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, such as snack foods, frozen foods, vegetables, fruits, confectionary, chemicals and other granules.
Features:
1> The buckets are made of a food grade reinforced polypropylene, molded in one piece and can handle temperatures from -10 to 120 degrees Fahrenheit.
2> The bucket elevators allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices.
3> All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.
4> The geared reducer motor drive the machine have a stable performance prolong the machine life and easy to maintenance.
5> Optional material: Stainless steel and carbon steel.
Technical Specification:
Machine Model  Z shape Bucket Elevator
Bucket Volume 1.8L-3.8L
Machine frame Full stainless steel #304 or paint steel
Production capacity 4-6.5m3/H
Outlet height 3296mm
Infeed length 863mm

Machine Packed Dimension

(L*W*H)

 2050*1350*980mm
Voltage

AC 220V Single phase or

AC 380V 3 Phase.50Hz
Power 0.75KW

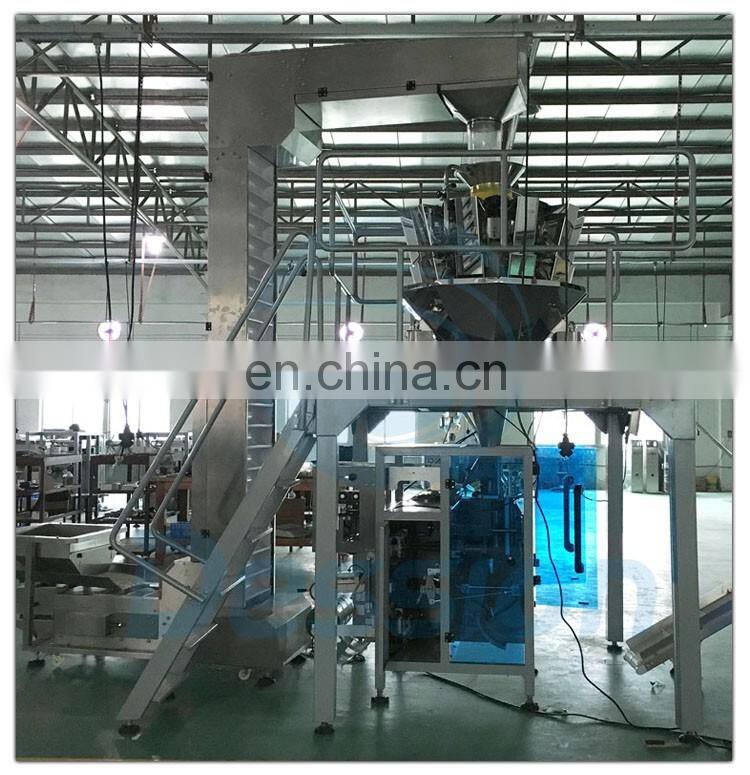

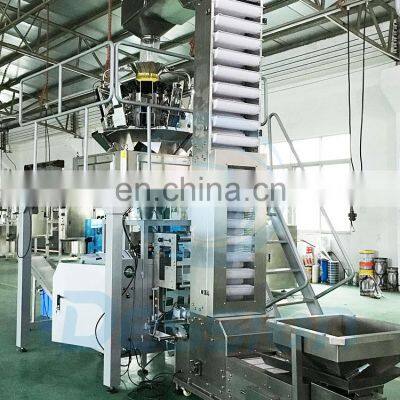

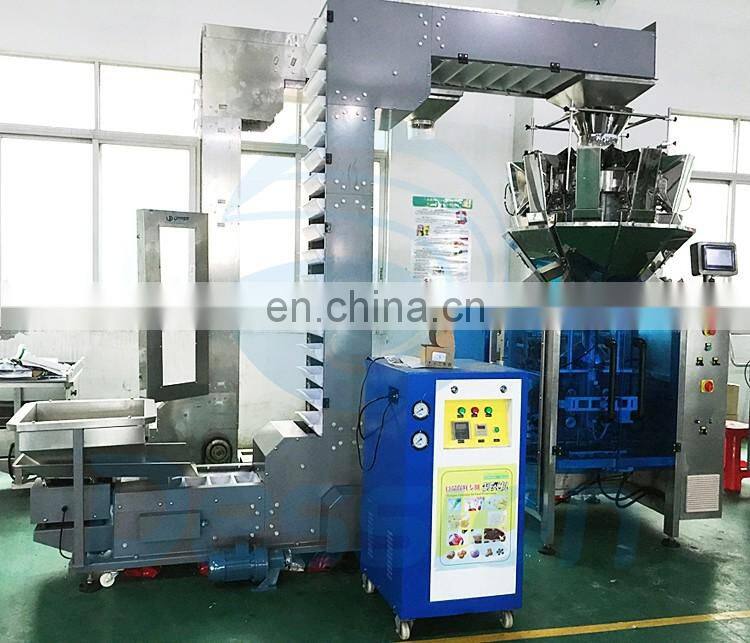

Match with Vertical packing machine:
Z type bucket conveyor for packing machineZ type bucket conveyor for packing machine
Combined parts:
1. DS-AZ Series Packing Machine
2. Multi-head combination weigher
3. Z type bucket elevator
4. Finished product conveyor
5. Supporting platform

Application



Suitable to package fragile materials demanding high accuracy, such as puffed food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardware, medicine, etc.

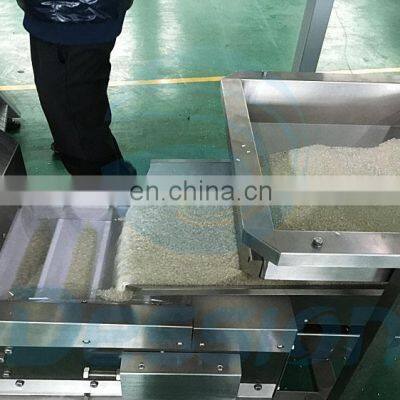

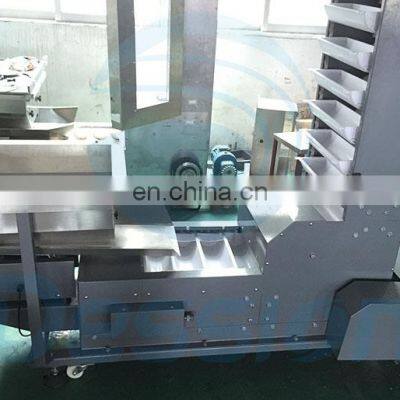

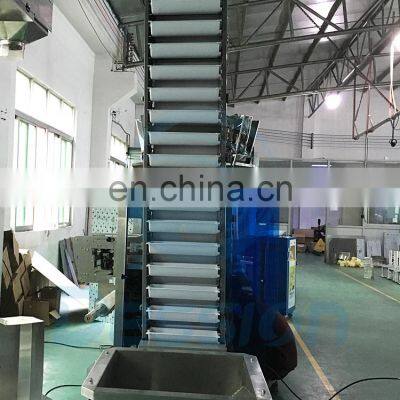

Sample Photo:

Z type bucket conveyor for packing machine

Related Products

Company Information



Z type bucket conveyor for packing machineZ type bucket conveyor for packing machine
Z type bucket conveyor for packing machine
Z type bucket conveyor for packing machine
Packaging & Shipping

Z type bucket conveyor for packing machine

FAQ



For any Questions
1. Q : Can your machine meet our needs well, how to choose the proper settings ?
A : Dear, before quoting, please kindly consult us and providing:
1).The packaging pruduct name;
2).Packaging bag size(Length/Width) or the weight of each packaging bag;
3). Pacaging speed;
4).Bag types showing above or your own design;
it will be more easier for us to recommend the most suitable packing machine for you to make your cost to the minimum.


2. Q: Do you have manual or operation video for us to know more about the machine?
A : Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.


3. Q: How can I trust you for the first time business ?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Trade Assurance service. it will protect your money during the whole stage of transaction.


4. Q: Can you explain me the whole transaction process ?
A: Both sides reached cooperation intention -
---- Signed the Contract
---- Arrange the deposit to factory
---- Factory arrange production
---- Testing&detecting the machine before shipping
---- Inspection by customer or third agent or through online
---- Arrange the balance payment
---- Confirm the shipping details then delivery
Guild customer setting after machine arrived.


5.Q: How do we contact you?
A: There is a contact information in the bottom of this page. Please leave massage and click "send". you also can contact us through Email,Line, phone and etc.
