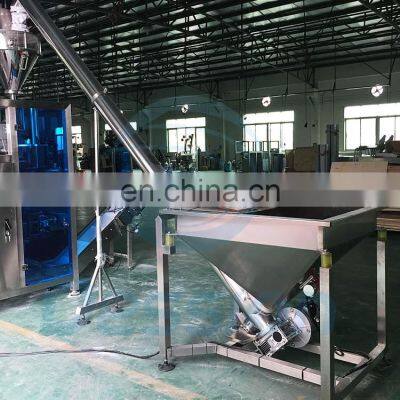

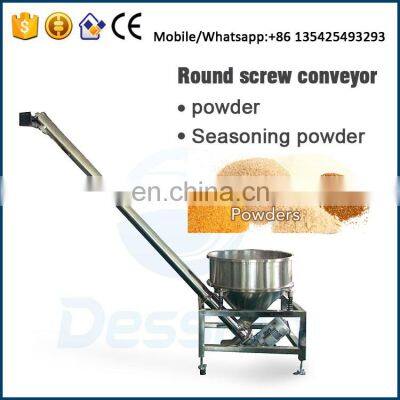

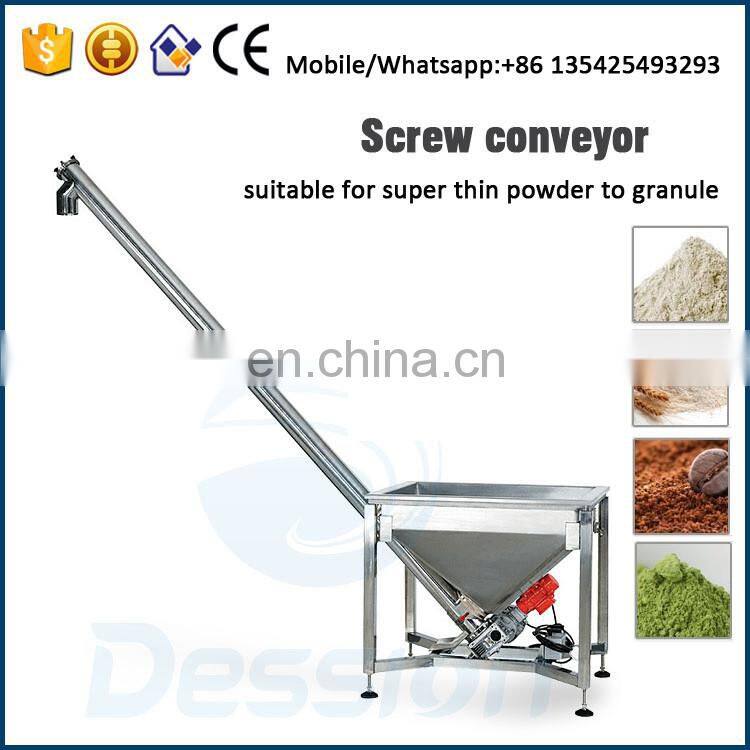

Vibrating Hopper Inclined Screw Conveyor / Auger Feeding Machine

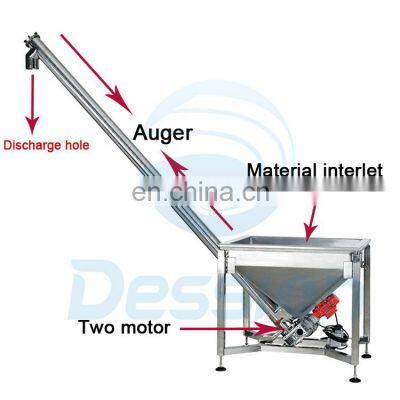

Two motors used for screw feeding and hopper vibrating, separately control.
Products storage hopper can be separated from the screw and tube easily.
Flexible Reversible running screw, fast dismountable screw and discharge gate insure easy cleaning.
2. Simplicity of operation is the key element in screw conveyor, the only moving part is the motor driven spiral which rotates with a sealed tube to move the materials along with it. There is no bearing components in pipeline, no matter how long the transportation is, the machine requires little maintenance, the conveyor is reliable, it will not occurs that some problems like bearing grease pollution during materials transportation.

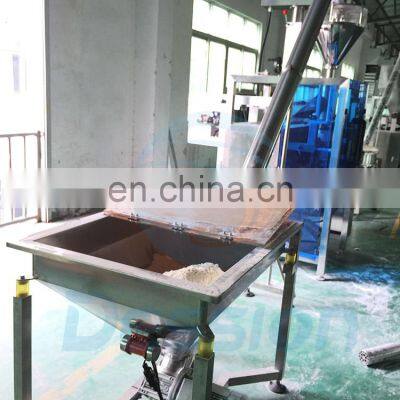

3. Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.

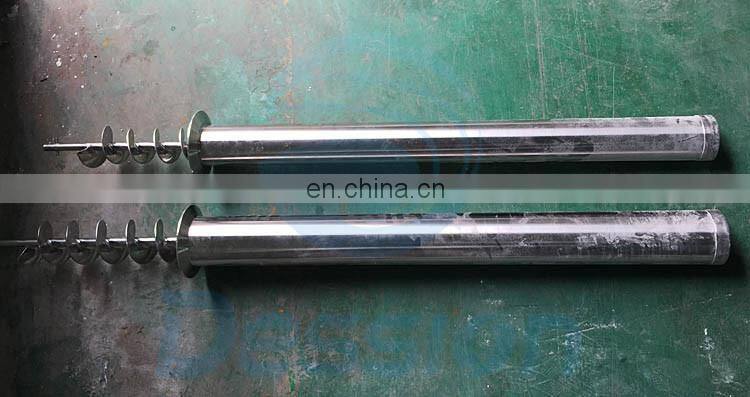

4. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassembled for washing.
1> Customized available
2> Low noise
3> Easy for clean
4> Stable and durable
Technical parameters:
Name |
Screw conveyor |
Model |
DS-SE-1 |
Construction |
Full stainless steel |
Conveying capacity |
3cbm/h to 7cbm/h |
Diameter of pipe |
φ102mm;φ114mm;φ141mm;φ219mm |
Pipe angle |
General 45 degree,30degree,60degree |
Discharge Height |
General1800mm,and other size available |
Hopper size |
860*900*1100mm; 150L |
Power |
550W to 2.5kW |
Voltage |
3 phase,380V, 50-60Hz |
It is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
|
