Product Description

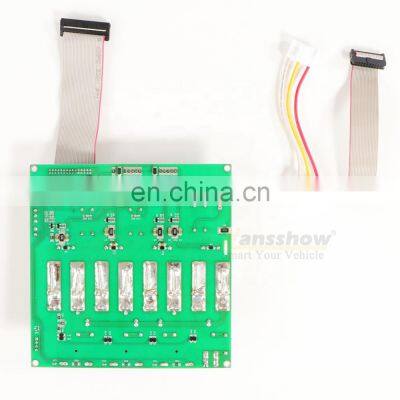

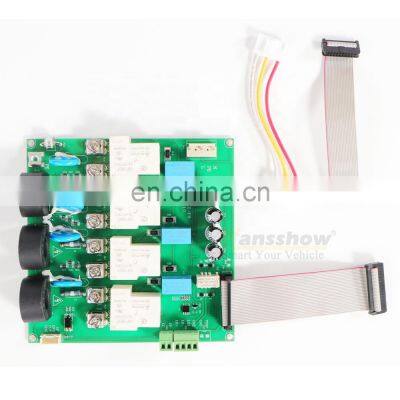

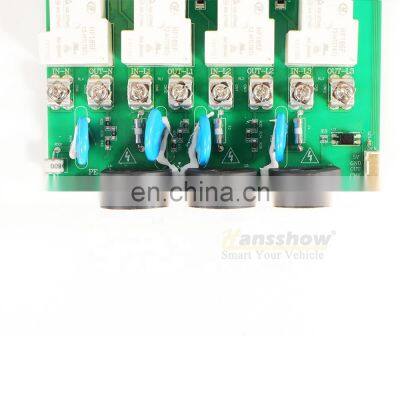

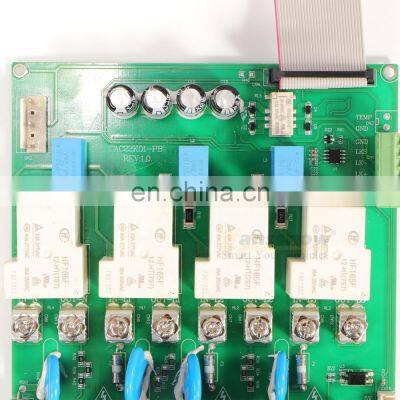

Three Phase 11KW 22KW On Board Charger Ac Controller board Car Charging Station PCB Circuit Board For Electric Vehicle
AC7K04 Control board
1.This product is the main control board of 11kW 22KW Three -phase AC charging pile, which is mainly used for AC charging of electric vehicles.
2.The product is composed of charging pile main control board, Ethernet communication board, 4G communication board, BT communication board, card reader board, display screen, external LED indicator light, etc.
3. It has the functions of charging protection, card charging, scanning code charging, mobile payment,network monitoring, etc.
4.This product adopts the principle of industrial design, convenient installation, quick deploymen.
Item Name |
Three Phase 11KW 22KW On Board Charger Ac Controller |
|
Brand Name |
Hansshow |
|
Dimensions |
140*138* 26 ( L*W*H )mm |
|
Starting mode |
Plug and charge/RFID |
|
Installation |
wall-mountingpedestal |
|
Communication mode |
BT/Ethernet/4G/RFID |
|
Weight |
500g |
|
Input frequency |
50/60Hz |
|
Input power |
11KW/22KW |
|
Working voltage |
175-265V |
|
Waterproof Level |
IP56 |
|
Output current |
32A |
|
Environmental index |
||
Applicable scene |
indoor / outdoor |
|
Working temperature |
-30℃ ~ +55℃ |
|
Working Humidity |
5% ~ 95% no condensation |
|
Working altitude |
<2000m |
|
Cooling Type |
natural cooling |
|
Standard |
EN 61851-1-2001,EN 61851-22-2001 |
|
MTBF |
50,000 H |
|
Protection Function |
||
Overvolatge protection |
265V |
|
Undervolatge protection |
175V |
|
Leakage protection |
30mA(Type A),(TypeB opt) |
|
Overcurrent protection |
≥110% rated output |
|
Overtemperature protection |
80℃ |
|
Grounding protection |
Yes |
|
Lightening protection |
Yes |
|
