Product Description

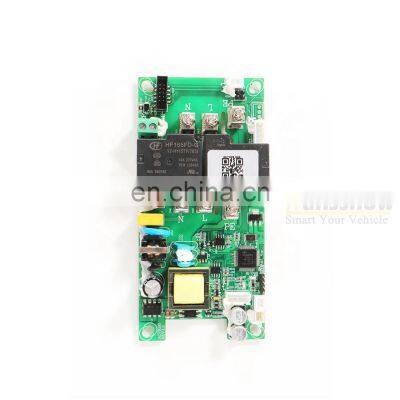

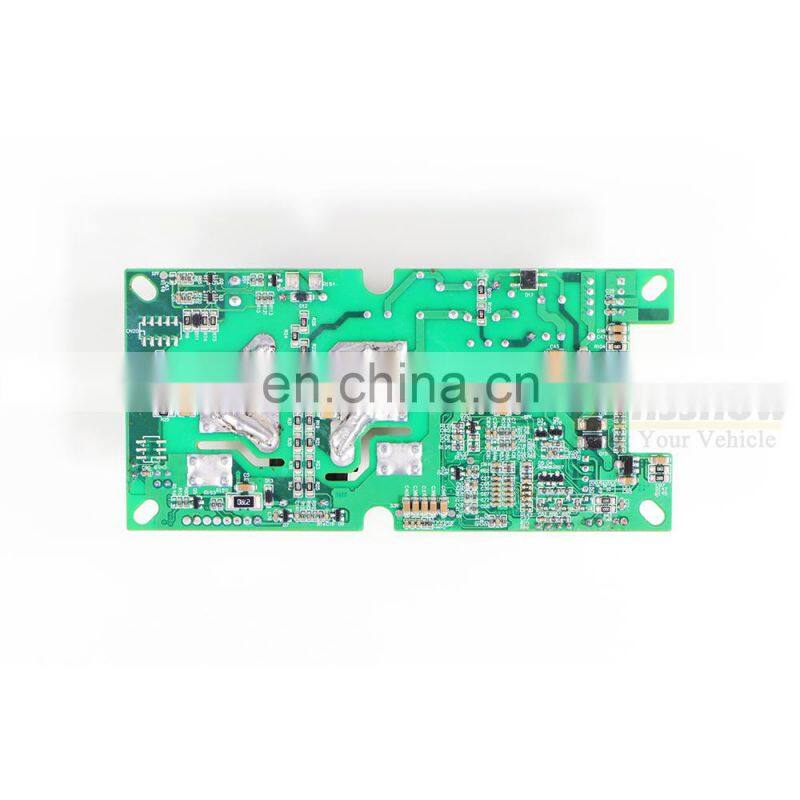

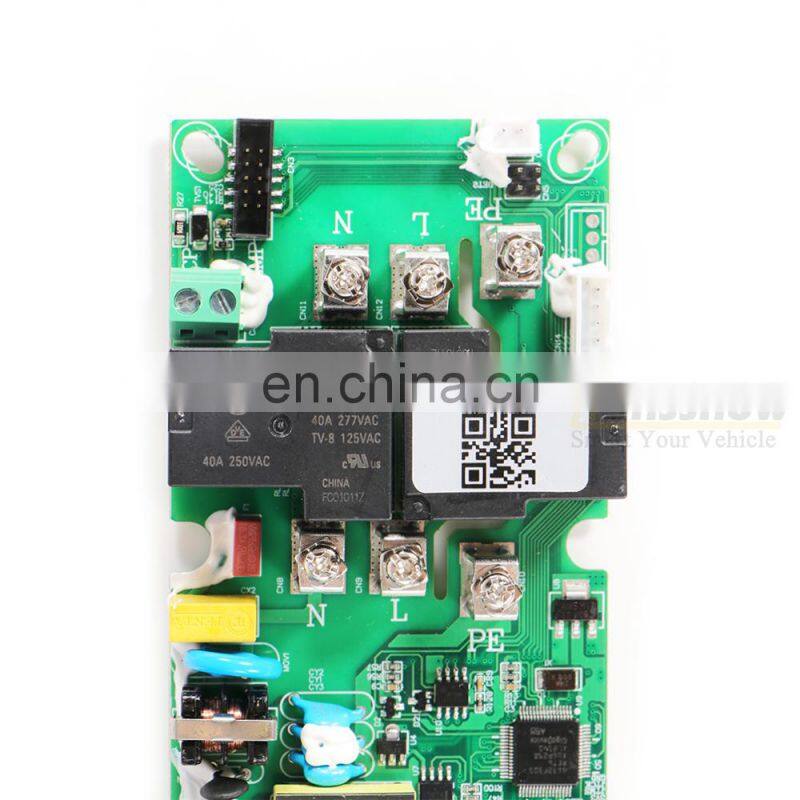

16A 32A 3.5KW 7KW Portable EV charging box replacement mainboard EV Ac Charger Controller Main Circuit Board

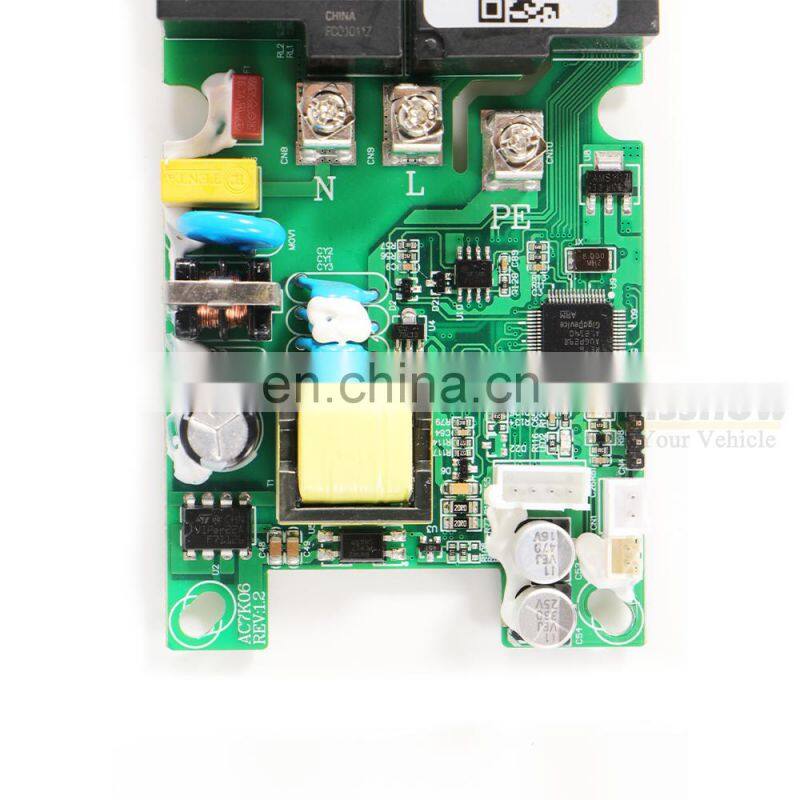

AC7K06 Single-phase AC charging guidance system and multi-protection circuit board for new energy vehicles are independently developed by our company, using international major brands of master control chips and signal processing chips, in line with the relevant national standards of AC charging pile products.
The module has a built-in high-performance MCU LED indicators are built - in and external version, display, LED light board size and position can be customized according to customer PCB temperature detection, input plug temperature detection, dual temperature detection function.
Item Name
Portable EV charging box replacement mainboard
product mode
GD2302-027(7KW-32A)/GD2202-027(3.5KW-16A)
Allow maximum power
7KW/3.5KW
Allow maximum current
32A/16A
Input interface
Single phase AC：L、N、PE
Output Interface
Single phase AC：L、N、PE
CP signals
Frequency, duty cycle, magnitude,see appendix A for details

Protection function
See Appendix B for details of protection
Working voltage
175-265V
PCB size
137*66*25mm
Working temperature
-25~55℃
Working humidity
<95％ RH no condensation
Dielectric strength
Input - ground, output - ground :2000V ac,60S
Insulation impedance
Input - ground, output - ground :500V dc,>10M



Advantage
1.OLED screen Easy installation
2.High speed charging
3.Small size,Easy to transport
4.Multiple security protection
5.Certified by authorities(CE,RoHS)
6.Real-time monitor on temperature
7.High resistance to cold/high temperature
Environmental index
Applicable scene
indoor / outdoor
Working temperature
-30℃ ~ +55℃
Working Humidity
5% ~ 95% no condensation
Working altitude
<2000m
Cooling Type
natural cooling
Standard
EN 61851-1-2001,EN 61851-22-2001
MTBF
50,000 H
Protection Function
Overvolatge protection
265V
Undervolatge protection
175V
Leakage protection
30mA(Type A),(TypeB opt)
Overcurrent protection
≥110% rated output
Overtemperature protection
80℃
Grounding protection
Yes
Lightening protection
Yes
