Product Description
New Energy Car Charging Pile Ac Control Board 3 Phase Electric Car Charger Circuit Board

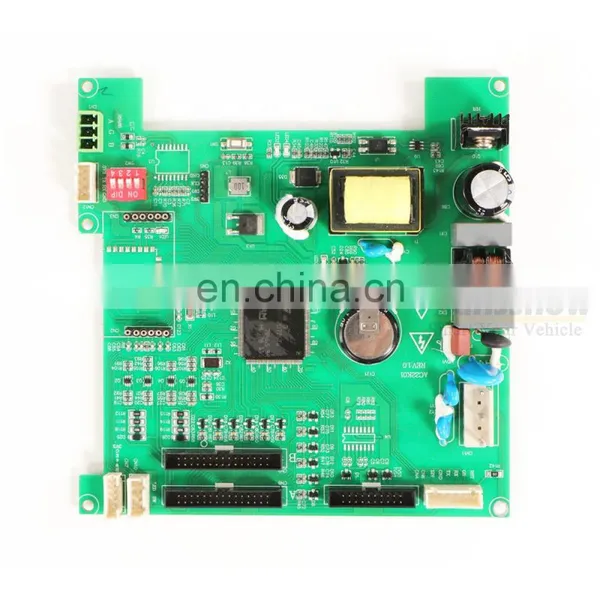

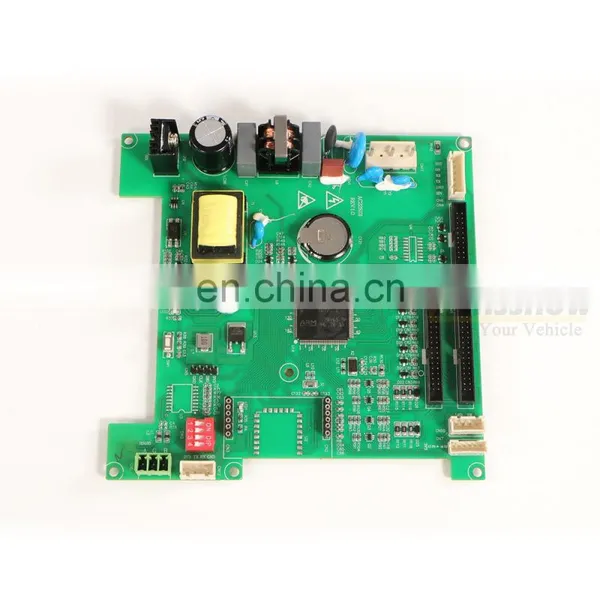

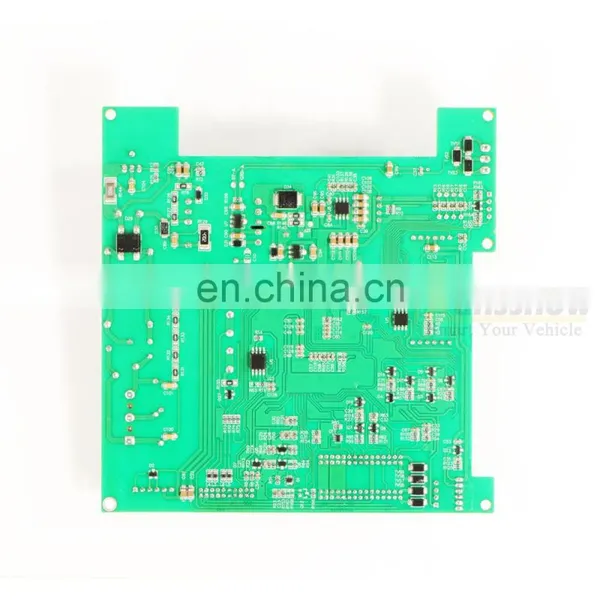

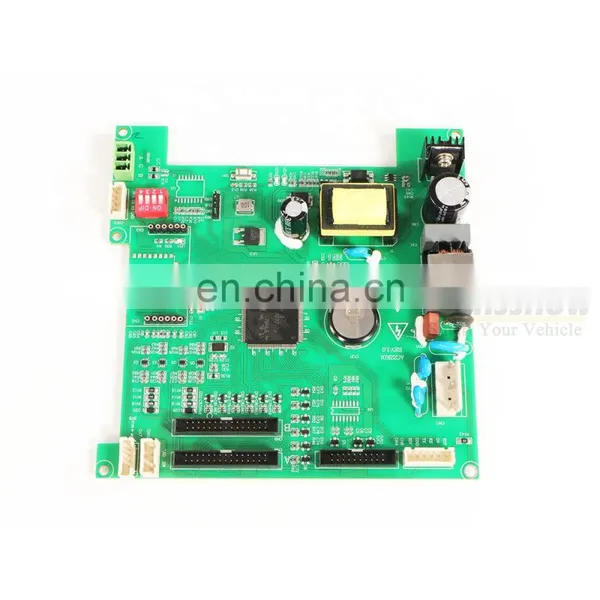

AC7K04 Control board

1.This product is the main control board of 11kW/22KW Three-phase AC charging pile, which is mainly used for AC charging of electric vehicles.
2.The product is composed of charging pile main control board, Ethernet communication board, 4G communication board, BT communication board, card reader board, display screen, external LED indicator light, etc.
3. It has the functions of charging protection, card charging, scanning code charging, mobile payment,network monitoring, etc.
4.This product adopts the principle of industrial design, convenient installation, quick deploymen.
Item Name
3 Phase Electric Car Charger Circuit Board
Brand Name
Hansshow
Dimensions
140*138* 26 ( L*W*H )mm
Starting mode
Plug and charge/RFID
Installation
wall-mountingpedestal
Communication mode
BT/Ethernet/4G/RFID
Weight
500g
Input frequency
50/60Hz
Input power
11KW/22KW
Working voltage
175-265V
Waterproof Level
IP56
Output current
32A(3 Phase)
Environmental index
Applicable scene
indoor / outdoor
Working temperature
-30℃ ~ +55℃
Working Humidity
5% ~ 95% no condensation
Working altitude
<2000m
Cooling Type
natural cooling
Standard
EN 61851-1-2001,EN 61851-22-2001
MTBF
50,000 H
Protection Function
Overvolatge protection
265V
Undervolatge protection
175V
Leakage protection
30mA(Type A),(TypeB opt)
Overcurrent protection
≥110% rated output
Overtemperature protection
80℃
Grounding protection
Yes
Lightening protection
Yes
