Single Phase PCB Motherboard Electric Car Special Charging Controller Circuit Board PCBA Ev Charger Control Board Suppliers
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1992
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
16A 32A 3.5KW 7KW Portable EV Charging Box Replacement Mainboard EV Ac Charger Controller Main Circuit BoardNegotiableMOQ: 1 -
Household Electricity 220V 16A AC Single Phase EV Charger Module PCB BoardNegotiableMOQ: 1
-
PCBA Manufacturer Electric Car Charging Pile Mainboard PCB Assembly Control Circuit BoardNegotiableMOQ: 1
-
Level2 AC EV Charging Station Electric Vehicle Ev Charger Pcb Board Power Supply AC Auto ChargerNegotiableMOQ: 1
-
Ac7k04 Intelligent 7KW Single Phase AC Charging Pile Control Panel Ev Charger Main Board Of New Energy Charging BoxNegotiableMOQ: 1
Product Description
Single Phase PCB Motherboard Electric Car Special Charging Controller Circuit Board PCBA Ev Charger Control Board Suppliers

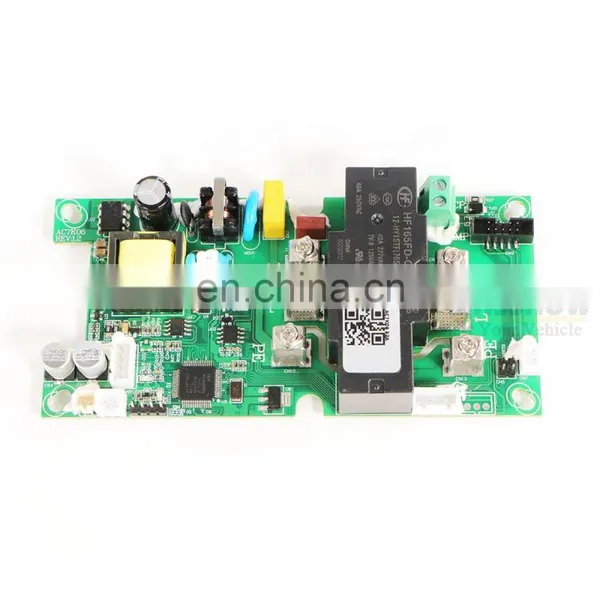

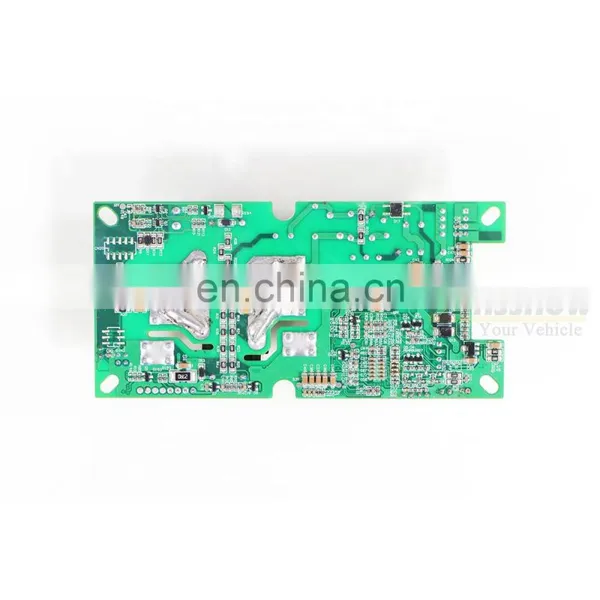

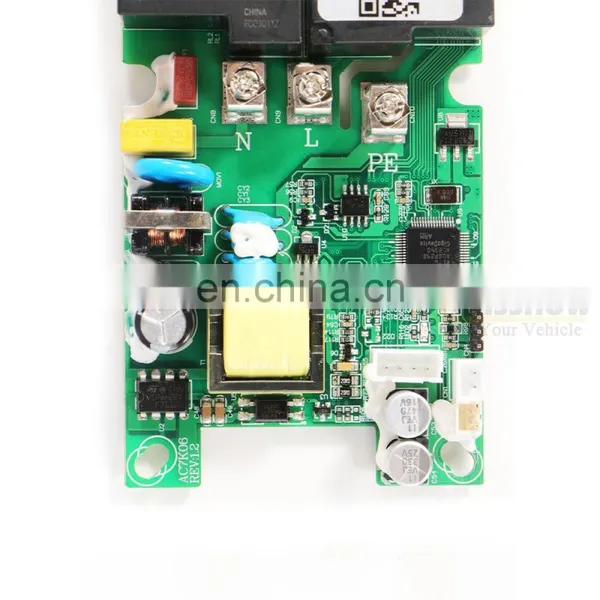

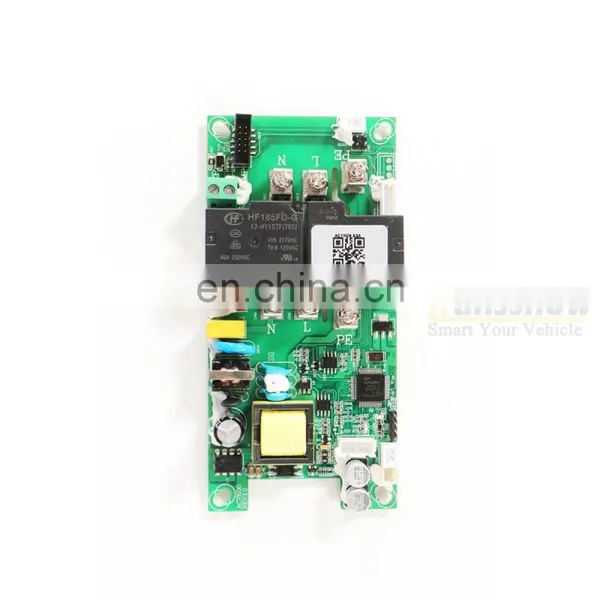

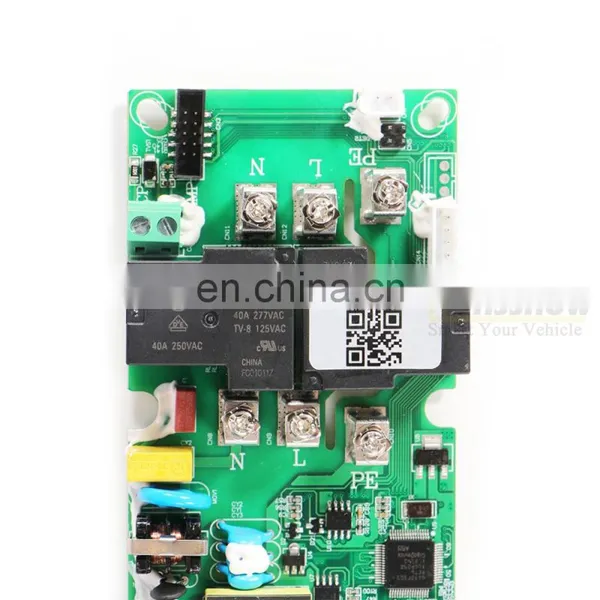

AC7K06 Single-phase AC charging guidance system and multi-protection circuit board for new energy vehicles are independently developed by our company, using international major brands of master control chips and signal processing chips, in line with the relevant national standards of AC charging pile products.
The module has a built-in high-performance MCU LED indicators are built - in and external version, display, LED light board size and position can be customized according to customer PCB temperature detection, input plug temperature detection, dual temperature detection function.
Item Name |
Electric Car Special Charging Controller Circuit Board PCBA |
|
product mode |
GD2302-027(7KW-32A)/GD2202-027(3.5KW-16A) |
|
Allow maximum power |
7KW/3.5KW |
|
Allow maximum current |
32A/16A |
|
Input interface |
Single phase AC：L、N、PE |
|
Output Interface |
Single phase AC：L、N、PE |
|
CP signals |
Frequency, duty cycle, magnitude,see appendix A for details |
|
Protection function |
See Appendix B for details of protection |
|
Working voltage |
175-265V |
|
PCB size |
137*66*25mm |
|
Working temperature |
-25~55℃ |
|
Working humidity |
<95％ RH no condensation |
|
Dielectric strength |
Input - ground, output - ground :2000V ac,60S |
|
Insulation impedance |
Input - ground, output - ground :500V dc,>10M |
|
Advantage
|
1.OLED screen Easy installation |
|
2.High speed charging |
||
3.Small size,Easy to transport |
||
4.Multiple security protection |
||
5.Certified by authorities(CE,RoHS) |
||
6.Real-time monitor on temperature |
||
7.High resistance to cold/high temperature |
||
Environmental index |
||
Applicable scene |
indoor / outdoor |
|
Working temperature |
-30℃ ~ +55℃ |
|
Working Humidity |
5% ~ 95% no condensation |
|
Working altitude |
<2000m |
|
Cooling Type |
natural cooling |
|
Standard |
EN 61851-1-2001,EN 61851-22-2001 |
|
MTBF |
50,000 H |
|
Protection Function |
||
Overvolatge protection |
265V |
|
Undervolatge protection |
175V |
|
Leakage protection |
30mA(Type A),(TypeB opt) |
|
Overcurrent protection |
≥110% rated output |
|
Overtemperature protection |
80℃ |
|
Grounding protection |
Yes |
|
Lightening protection |
Yes |
|
