Home > Products > Trommel Screen > Rotary Aalluvial Placer Gold And Diamond Washing And Separating Gold Mining Trommel Screen
Rotary Aalluvial Placer Gold And Diamond Washing And Separating Gold Mining Trommel Screen
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Recovery Rate Collect Gold Mining Carpet Green Plastic Grass
-
High Effective Gold Machinery Equipment Rotary Mobile Gold Trommel Screen
-
Quality Guarantee Rotary Type Biomass Wood Chips Trommel Screen Firewood Trommel Screen
-
Portable Gold Mining Screening Sand And Gold Trommel Screen Equipment
-
Hot Selling Product Screen Variety Of Materials As Compost Wood Chips And Soil Waste Mobile Trommel Screen
-
Screening Compost Wood Chips Topsoil Cattle And Sheep Dung Mobile Trommel Screen Belt Conveyor
Product Description

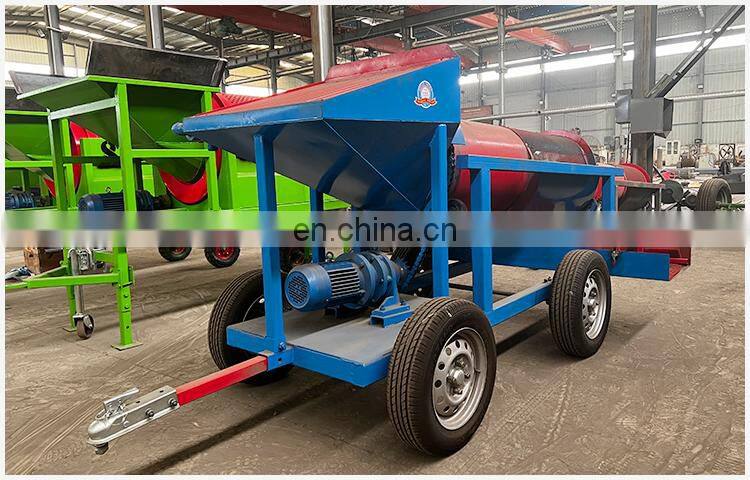

Mobile Stationary Sand Trommel Screen For River Gold Mining Equipment
The Mini Gold Screen Equipment Is Mainly Used In Dry Land Beach, River Is A Gravity Processing Equipment Is Mainly Used In Sand Gold Ore And The Recovery Of Monomer Gold In The Vein.it Can Be Easily Movable On Land, It Has A Compact Structure, Strong Integrity, Light Weight, Large Handling Capacity, Simple Operation, Reliable Work, And Easy Maintenance, Easy To Move And So On.
Structure and Principle

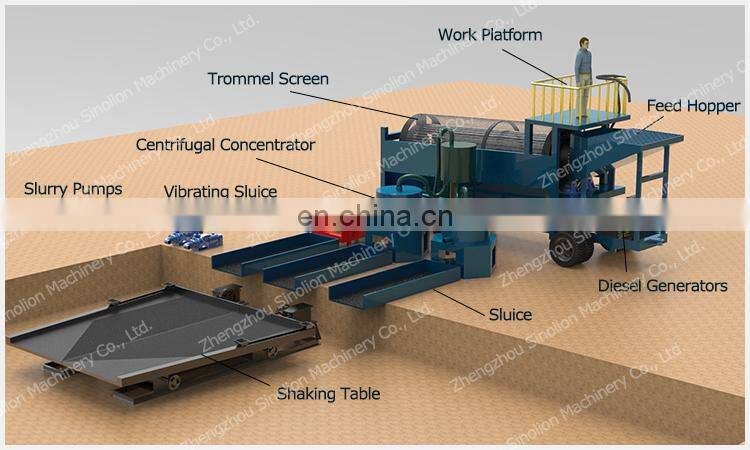

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.

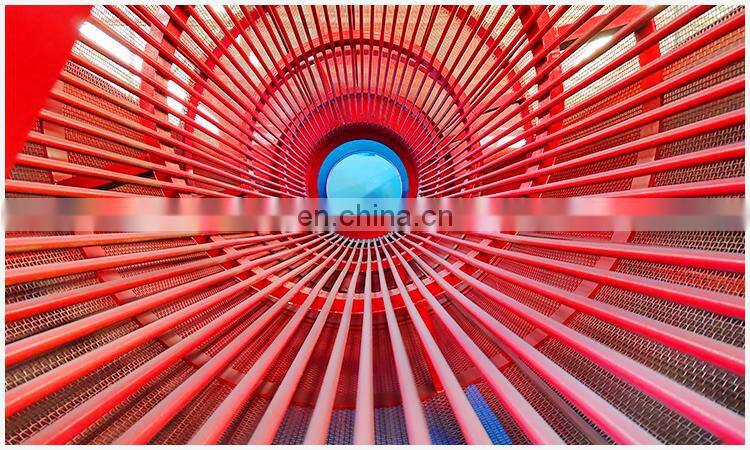

2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.
3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Product Name | Model | Capacity (t/h) | Power(kw) | Diameter(mm) | Length(mm) |
Gold trommel screen | GMTS0519 | 5-10 | 1.5 | 500 | 1910 |
