Product Description
High Effective Screeining Compost Topsoil And Sheep Cattle Dung Screen Mobile Trommel Screen

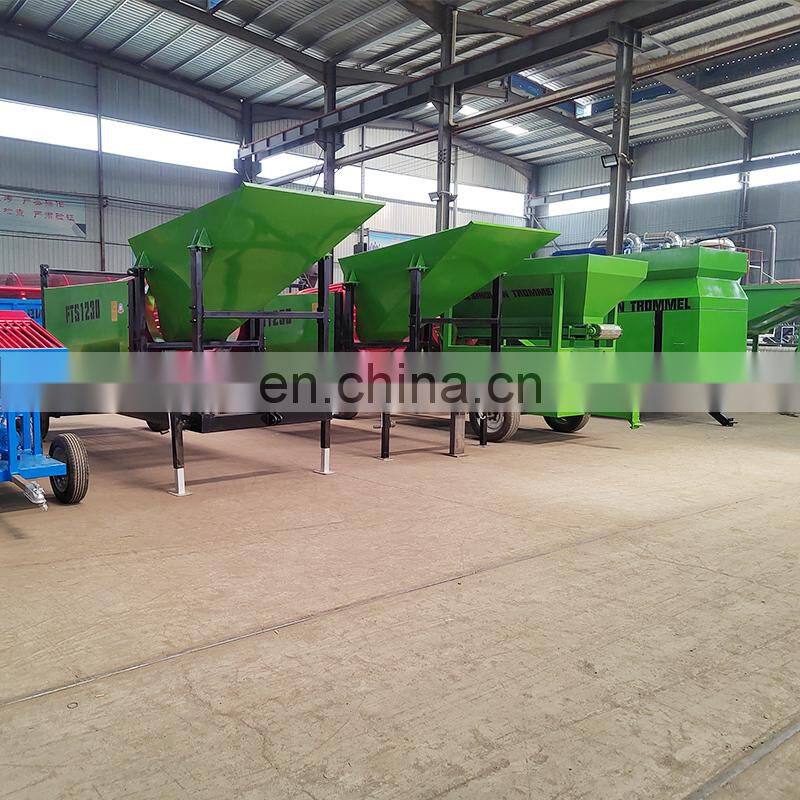

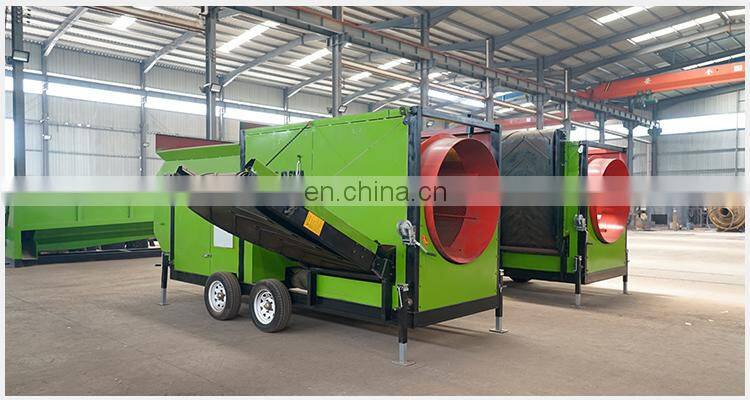

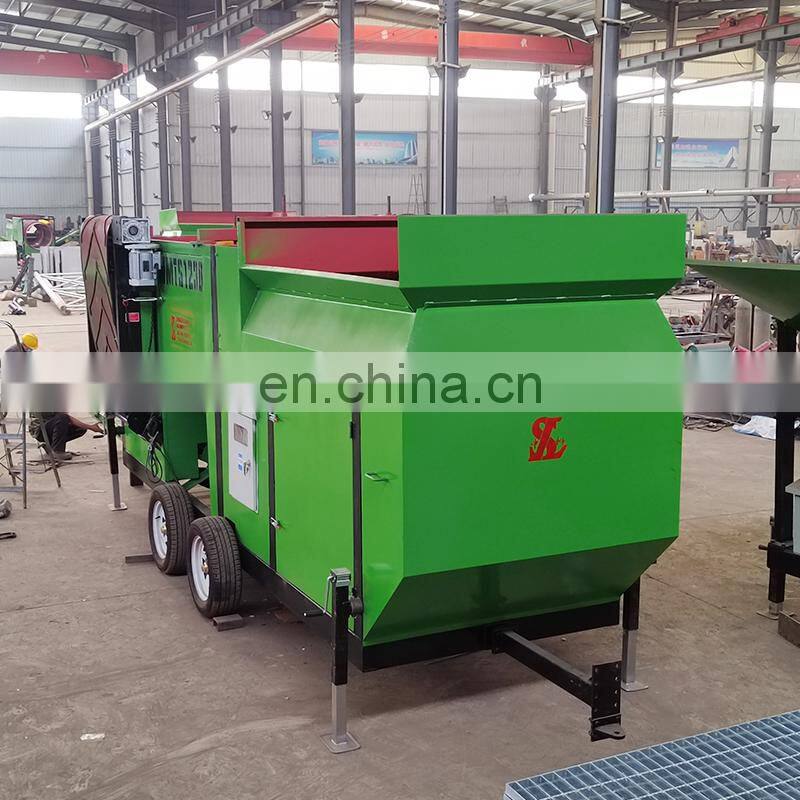

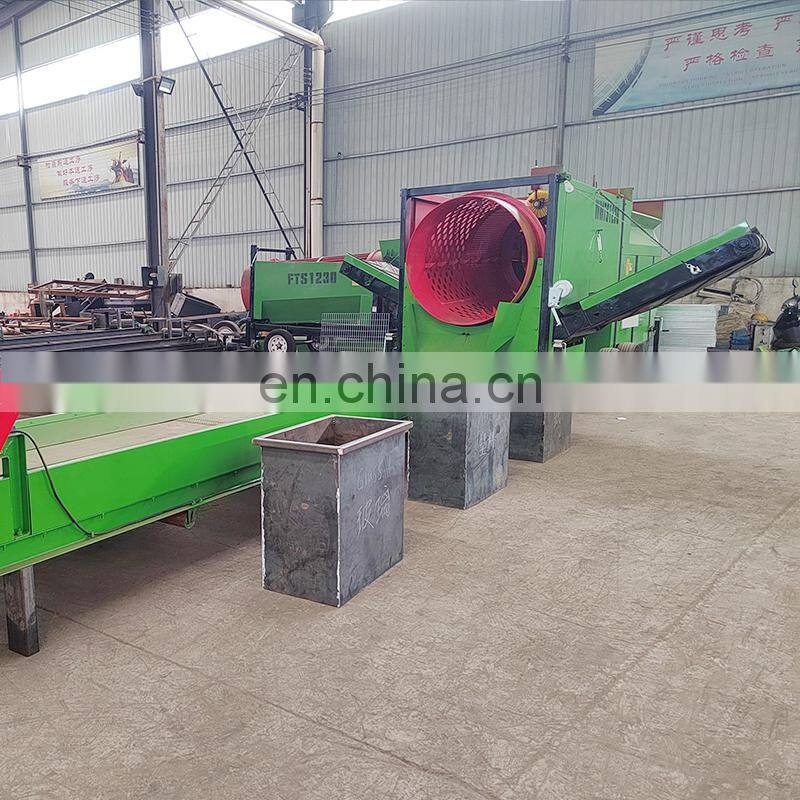

The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel.
It has the following characteristics:
1. Using special screen mesh, the sieve hole is not easy to block, high screening effciency and long service life.
2. Small installation slope and stable operation.
3. Simple structure and easy maintenance.
4. High reliable, durable and less one-time invesrment.
5. Screening cylinder can be closed, easy to close and collect dust and less polution.
2. Small installation slope and stable operation.
3. Simple structure and easy maintenance.
4. High reliable, durable and less one-time invesrment.
5. Screening cylinder can be closed, easy to close and collect dust and less polution.
Structure and Principle

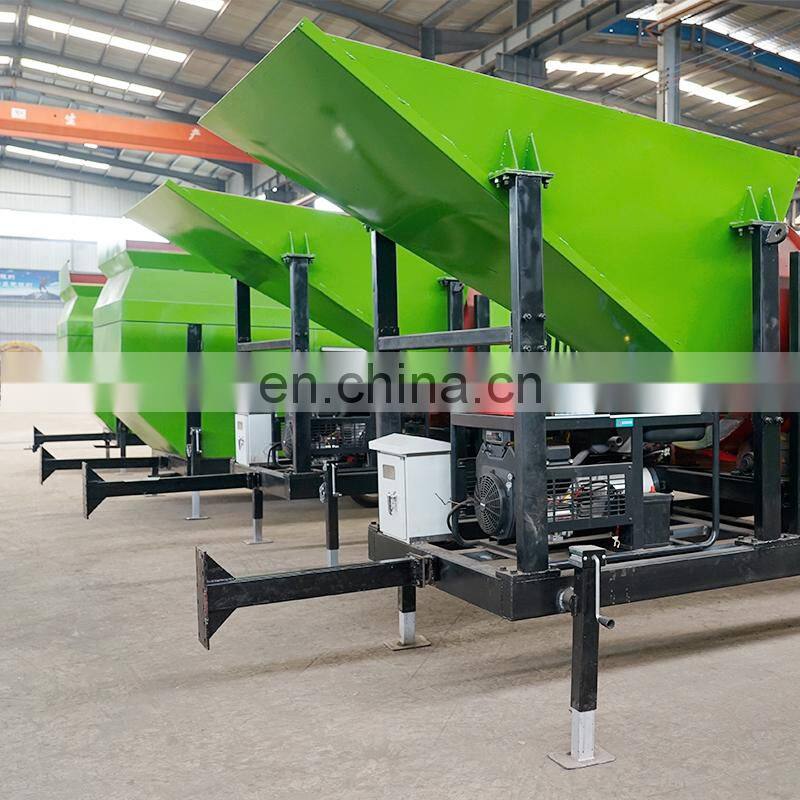

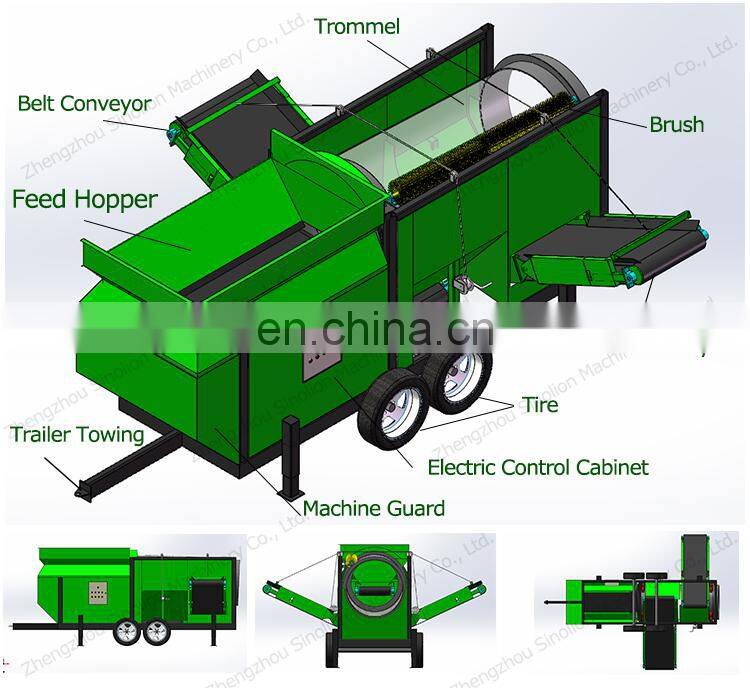

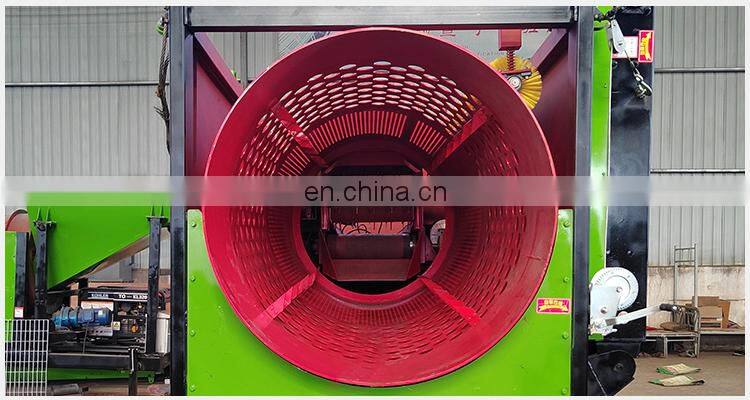

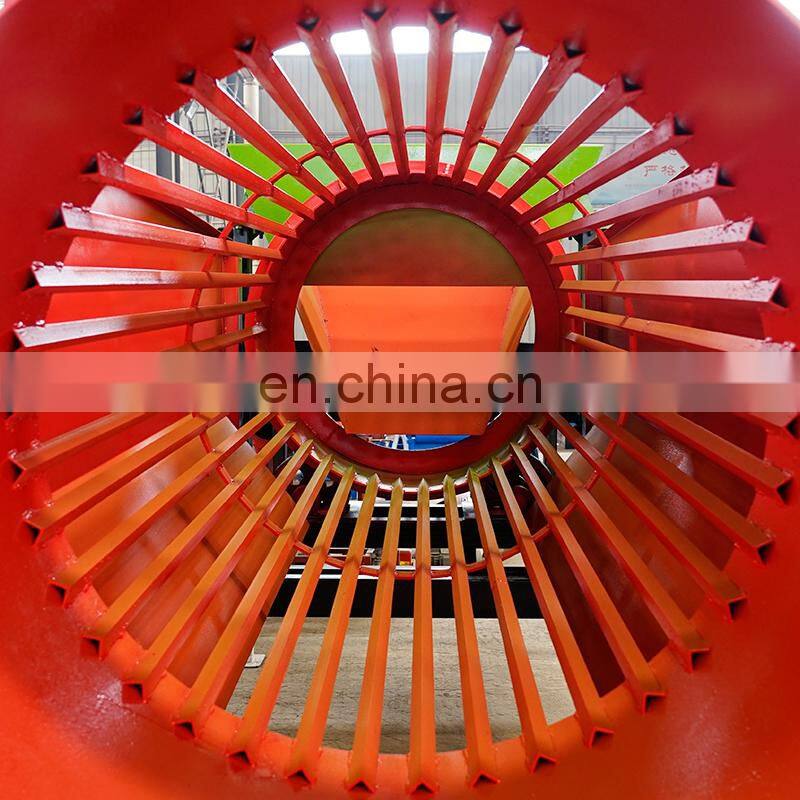

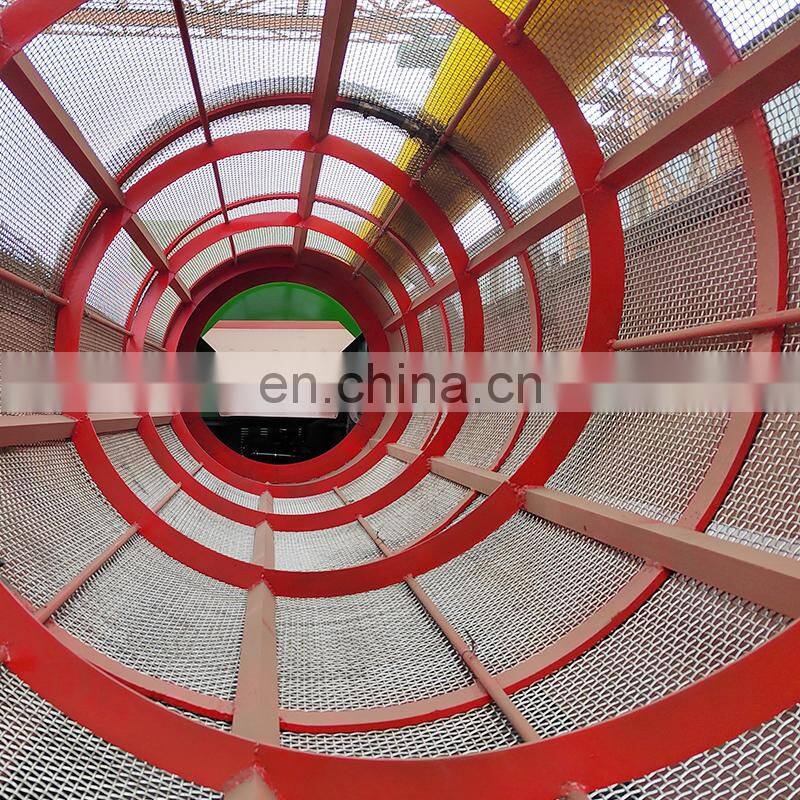

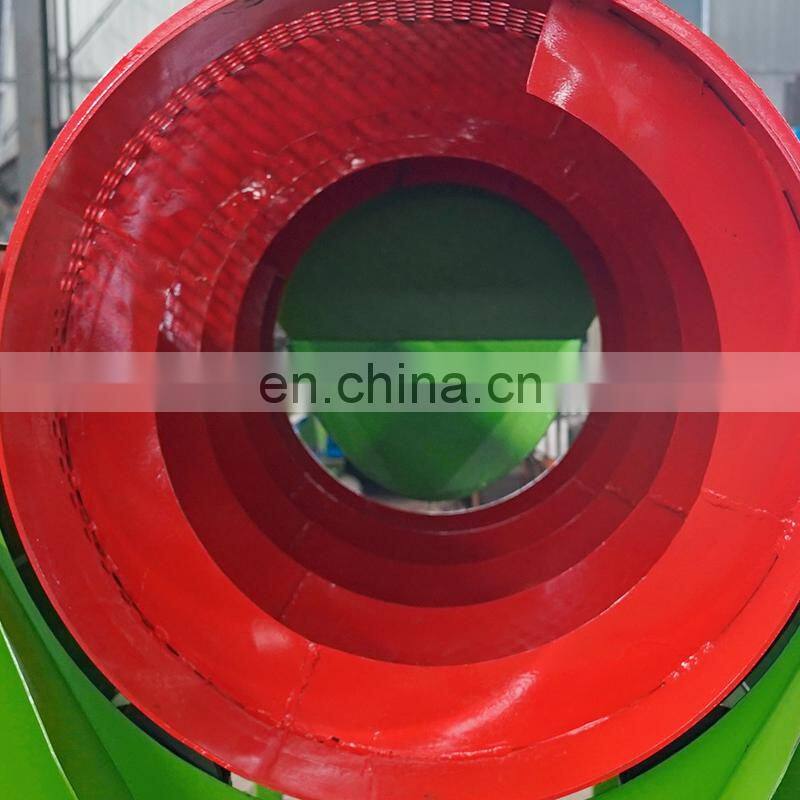

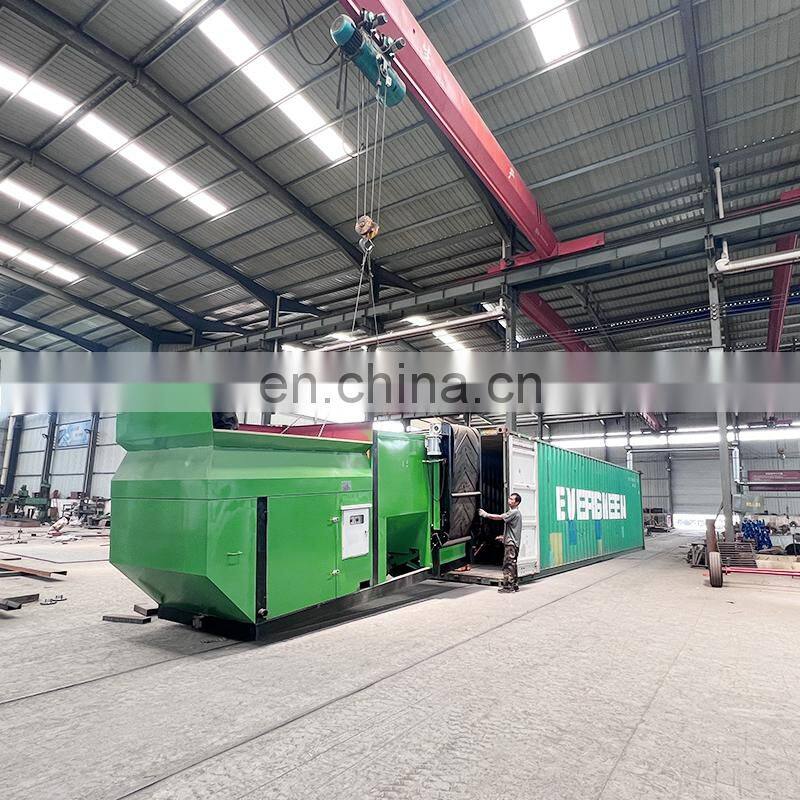

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts.

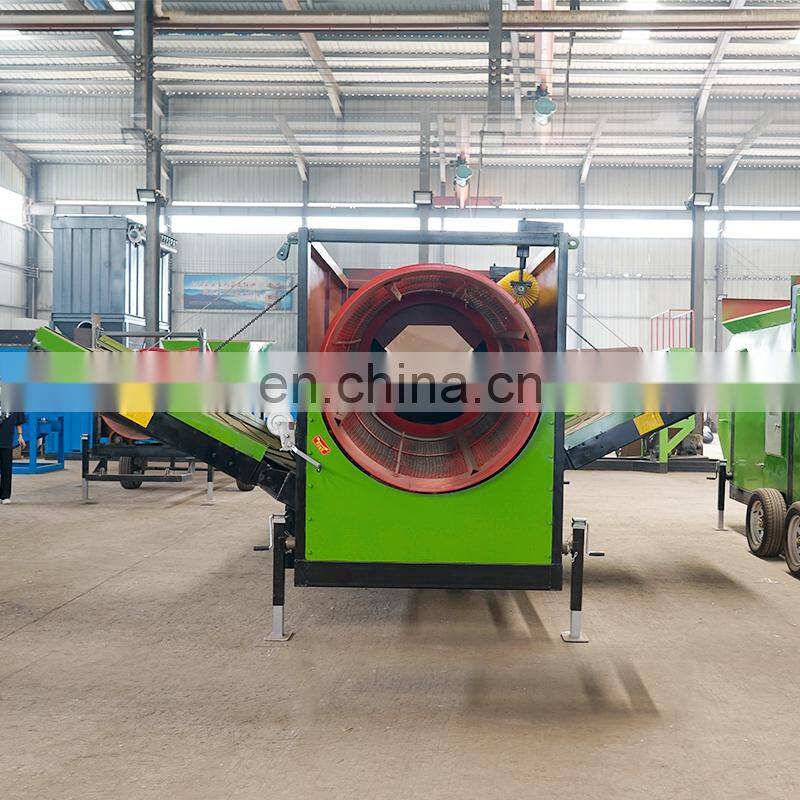

The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Product Name | Mobile Trommel Screen | ||||||

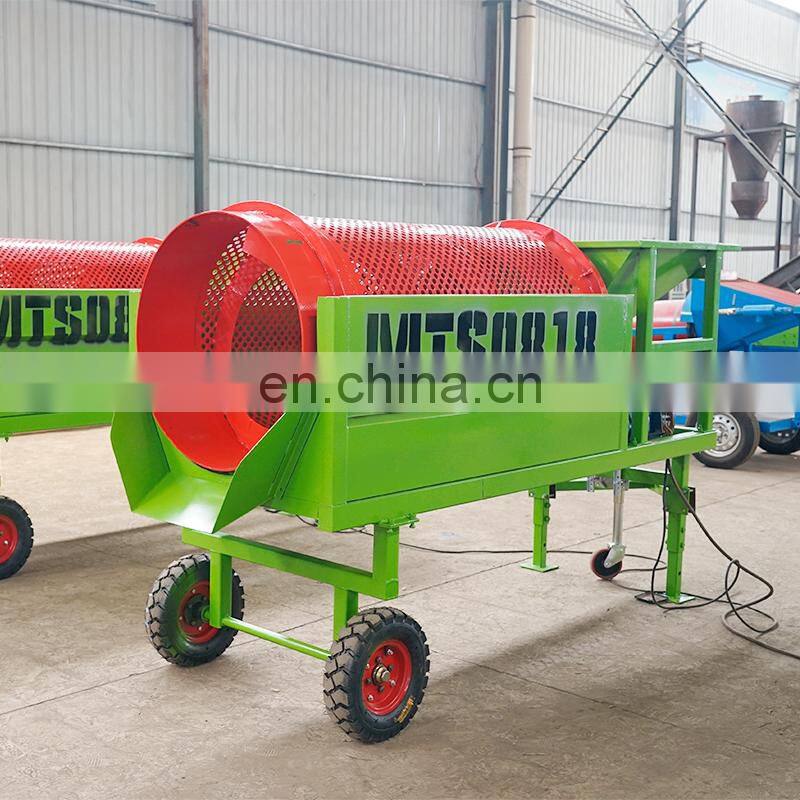

Product Type | MTS0818 | MTS1022 | MTS1230 | MTS1550 | |||
Trommel Diameter | 0.8m | 1m | 1.2m | 1.5m | |||
Trommel Length | 1.8m | 2.2m | 3m | 5m | |||
Trommel Power | 2.2kw | 2.2kw | 4kw | 5.5kw*2 | |||
