Stone Secondary Crushing Equipment Sand Making Roll Mill Crusher

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Production description

Double Roller Crusher Types

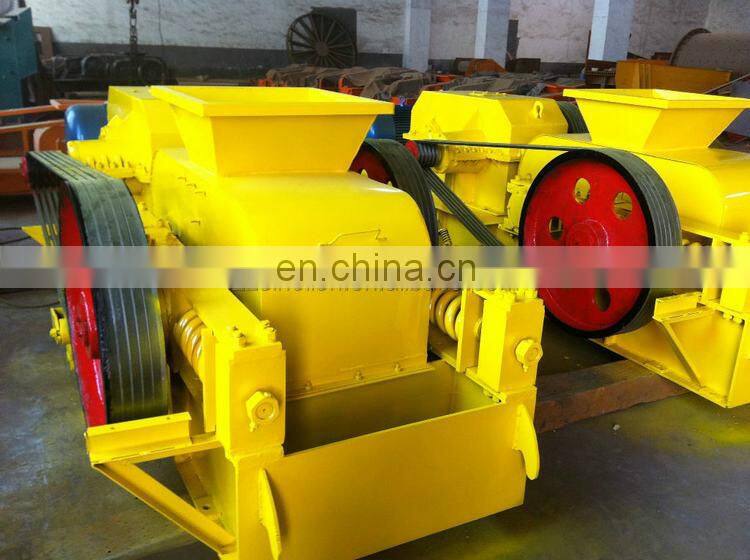

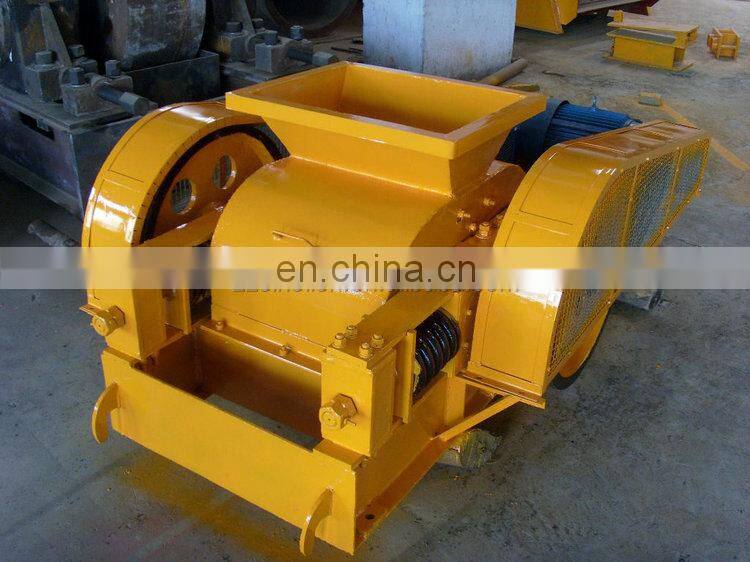

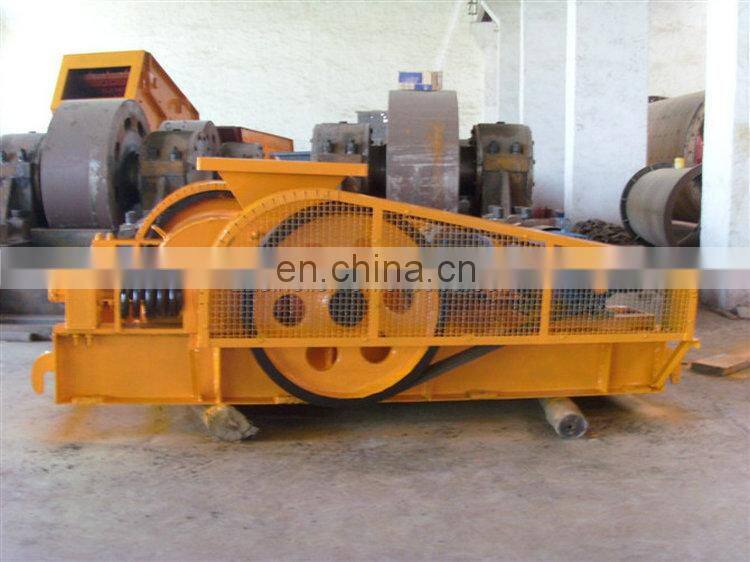

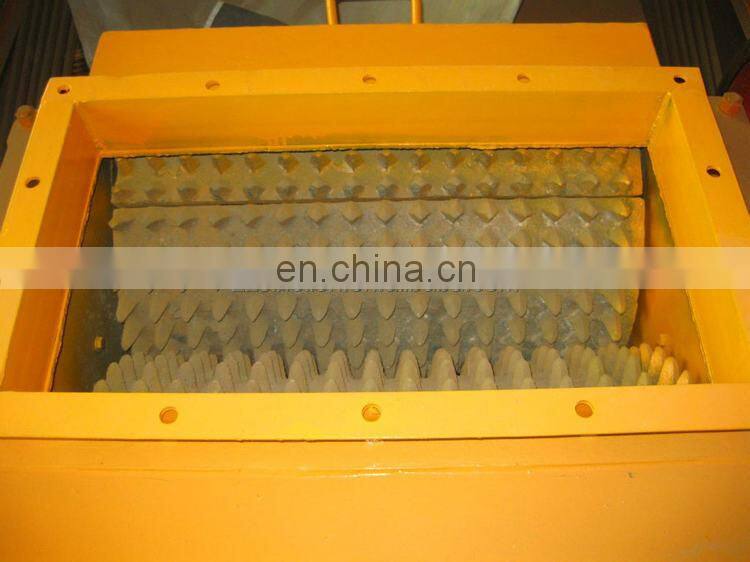

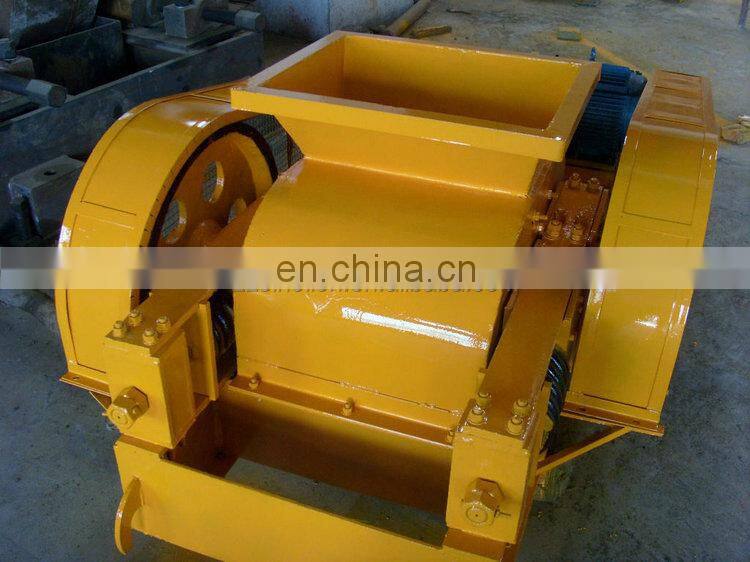

The major types of roller crusher are toothed roll crusher and smooth roller crusher. According to the requirements, the rolls are smooth (double roller crusher) or toothed (toothed roller crusher). When rotating, ore and othermaterials pass the two crushing rollers, and they are crushed or grounded intosmaller pieces. Capacity range of roller crusher is from 5 - 110 t/h.

Stone Roller Crusher:

The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls.

Some major advantages of stone roller crusher/roll crushers are they give a very fine product size distribution and they produce very little dust or fines. Stone roller crushers are effectively used in minerals crushing where the ores are not too abrasive and they are also used in smaller scale production mining of more abrasive metal ores, such as gold.

Technical parameters

Double roll crusher technical parameters:

Model	Roller diameter (mm)	Roller length (mm)	Input size (mm)	Output size (mm)	Capacity (t/h)	Power (KW)	Weight (t)
2PG-400X250	400	250	≤25	0-8	5-10	5.5x2	1.5
2PG-500X400	500	400	≤30	0-10	8-20	11x2	3.2
2PG-610X400	610	400	≤40	0-20	13-35	15x2	4.5
2PG-610X800	610	800	≤40	0-20	15-40	18.5x2	12.25
2PG-750X500	750	500	≤45	0-20	15-40	18.5x2	12.25
2PG-750X700	750	700	≤45	0-20	20-50	22x2	14
2PG-900X500	900	500	≤55	0-40	20-50	22x2	14
2PG-900X900	900	900	≤55	0-50	20-70	37x2	16.8
2PG-900X1200	900	1200	≤55	0-50	25-90	55x2	20.8
2PG-1200X1000	1200	1000	≤70	0-60	25-100	45x2	40.2
