Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Mining Ball Mill Gold Ball Mill Grinder Machine Fine Grinding Ball Mill for Mines
Mining Ball Mill Gold Ball Mill Grinder Machine Fine Grinding Ball Mill for Mines
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fine Powder Ball Grinding Mill Glass Mill With CE CertificationNegotiableMOQ: 1 -
Small Scale Gold Mining Machine of 900X1800 Stone Grinding Ball Mill With Good PriceNegotiableMOQ: 1
-
Hot Sale Ore Grinding Machine Ball Mill for Gold and Copper MiningNegotiableMOQ: 1
-
Energy-saving Grinding Equipment Limestone Bentonite Zircon Sand Stone Dry / Wet Grinding Ball MillNegotiableMOQ: 1
-
Laboratory 600x700 Mini Ball Mill Price Used in Ceramic IndustryNegotiableMOQ: 1
Product Description

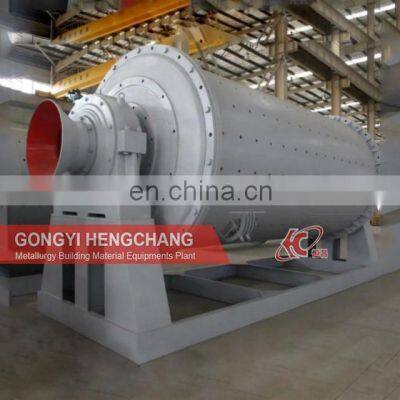

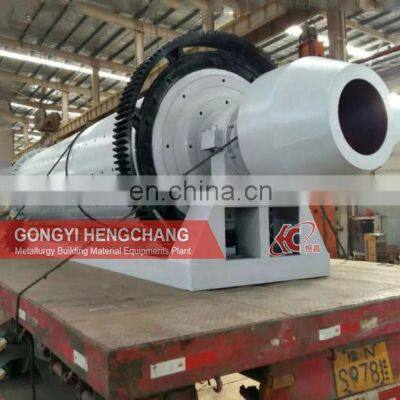

Mining Ball Mill Gold Ball Mill Grinder Machine Fine Grinding Ball Mill for Mines
Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.
Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such ascement, silicate, new building material, refractory material, fertilizer, ferrous metal, non ferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such ascement, silicate, new building material, refractory material, fertilizer, ferrous metal, non ferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
[ Capacity ]: 0.62–90 t/h
[ Applicable Material ]:
Ball mill is key equipment for grinding materials after crushing process. It is used to grind kinds of materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc.
[ Applicable Material ]:
Ball mill is key equipment for grinding materials after crushing process. It is used to grind kinds of materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc.
Energy saving mining ball mill is a key equipment in beneficiation plant.It is widely used in ore dressing production line such as Gold ore, Cooper ore, Magnetite ore, Antimony, Calcite, Kaolin, Mica, Clay, Bentonite etc Ferrou metal or Nonferrous metal materials.
Working principle
Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical Parameter
Model |
Cylinder Rotating Speed (r/min) |
Ball weight (t) |
Feeding Size (mm) |
Discharging Size (mm) |
Capacity (t/h) |
Power (kw) |
900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
1200×2400 |
35 |
4.6 |
≤25 |
0.075-0.6 |
1.6-5.8 |
37 |
1200×4500 |
35 |
5.5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
1500×3000 |
29 |
9 |
≤25 |
0.074-0.4 |
2-7 ball mill gold mining machine
|
75 |
1500×5700 |
29 |
17 |
≤25 |
0.074-0.4 |
3.5-6 |
110-130 |
1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
1830×6400 |
24.1 |
21 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
1830×7000 |
24.1 |
23 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 gold ball mill machine
|
245 |
2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
2200×6500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
30-50 ball mill grinding machine
|
245 |
2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
40-60 |
320 |
2700×3600 |
20.7 |
40 |
≤25 |
0.074-0.4 |
45-80 |
430 |
2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
50-90 |
430 |
2700×13000 |
20.7 |
60 |
≤25 |
0.074-0.4 |
50-90 |
630 |
3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
-- |
800 |
Products details
Eccentric shaft adopt 40Cr steel precise forged, Advanced Movable jaw plate assemble made from high quality casting parts,Tooth-shape plate, deep V-chamber, high manganese steel material ZGMn13-4 make crusher more reliable, Precise casting heavy fly wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.
ball mill grinding machine / gold ball mill machine / ball mill gold mining machine
Company Profile
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
（ball mill grinding machine / gold ball mill machine / ball mill gold mining machine）
Our Workshop
1.We are factory and be able to give you the lowest price than market one;
2.Our products have been exported to over 80 countries and widely used in global mining and construction industry;
3.We have a professional after-sale service team to promptly and thoroughly solve your problems; 4. Provide free process design.

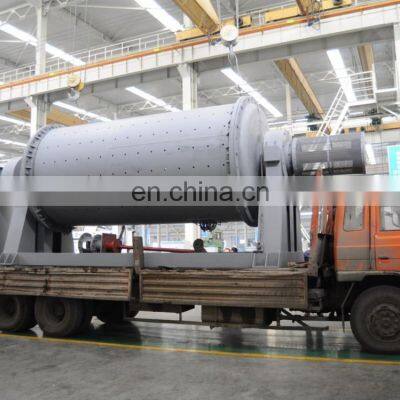

Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
